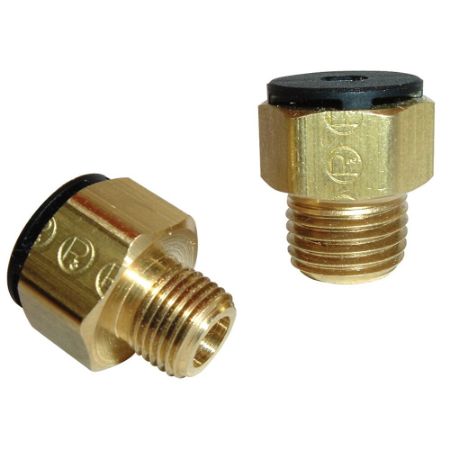

Exhaust Protector - E9 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
E9 series exhaust protectors are intended for mobile applications, quick venting applications, and alternative exhaust port breathers that require protection against clogging. They are ideal for valves exposed to harsh environmental conditions, which can cause a "caking up" in the exhaust pipe ports where the bronze mufflers or breather vents are installed.
Markets
• Mobile
Features/Benefits
• Ideally suited for harsh conditions
Applications
• Mobile
• Quick Venting
• Time-sensitive applications such as:
• Axle-lift suspensions
• Pushers
• Tag axles
| Action | Part No. | Availability | Partner Available | Price | UOM | Seal Material | Maximum Inlet Pressure Rating | Maximum Operating Pressure | Division | Body Material | Port Size | Operating Temperature | Flow Rate | Port Size (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E90017 | 10 In Stock | 664 In Stock | $11.70/each | EA | Fluorocarbon | 0 to 10.3 bar | 6.89 bar | Pneumatic Division | Brass | 1/4" | -40° to +70° °C | 56.5, 62.7 (at 90 psi or 6.2 bar) SCFM | 1/4 |
