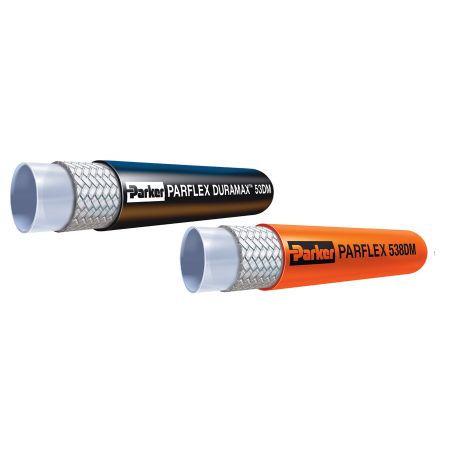

DuraMax™ Low Temperature 100R18 Hydraulic Hose - 53DM/538DM
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Whether you need a hydraulic hose replacement or are building new equipment, Parflex low-temperature hoses offer optimum hose flexibility in operating environments with low ambient temperatures. Designed to withstand and perform successfully in low temperatures, these hoses are ideal for applications that involve hydraulic forklifts in cold or refrigerated areas, aerial lift construction trucks, agriculture equipment in cold climates, or material handling equipment in commercial freezers. Parflex low temperature hoses also feature a 10%-30% smaller O.D. than rubber and are up to 70% lighter. Similar to 3TR18/30CT hose but with a lower operating temperature (-70°F).
Markets:
• Material Handling
• Construction
• Agriculture
Features/Benefits:
• Matte cover for low coefficient of friction
• Low length change under pressure
• Superior flexibility in cold temperature applications
• Better bend radius than SAE J517 and 100R18
• 3000 psi constant pressure
Applications:
• Excellent over-the-sheave in lift truck applications
• Cold storage or refrigerated areas<
• Construction and agriculture equipment in cold climates
Certifications/Compliance:
• Meets/Exceeds SAE 100R17 or SAE 100R18 (dependent on part number)
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Maximum Operating Pressure | Design Factor | Media | Maximum Operating Temperature | Minimum Bend Radius | Compatible Fitting | Hose Reinforcement Material | Application | Size | Outside Diameter | Weight | Inside Diameter | Hose Inner Tube Material | Minimum Operating Temperature | Cover Material | Specifications Met | Hose I.D. (inch) | Hose Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
53DM-10 |
Quote Required
|
44 In Stock
|
$9.50/foot
|
FT | Parflex Division | 3000 psi | 4:1 | Water | 212 °F | 102 mm | 56 Series | Fiber | Hydraulics | -10 | 1.030 inch | 0.33 kg/m | 16 mm | Copolyester | -70 °F | Copolyester | SAE J517 and 100R18 | 5/8 | Natural, Single |
|
|
53DM-6 |
1880 In Stock
|
10683 In Stock
|
$7.38/foot
|
FT | Parflex Division | 20.7 MPa | 4:1 | Lubricants (Oils) | 100 °C | 2 inch | 56 Series | Fiber | Industrial Machinery | -6 | 0.660 inch | 0.16 kg/m | 3/8 inch | Copolyester | -57 °C | Copolyester | SAE J517 and 100R18 | 3/8 | Natural, Single |
|
|
53DM-6-6 |
810 In Stock
|
1756 In Stock
|
$19.52/foot
|
FT | Parflex Division | 207 bar | 4:1 | Lubricants (Oils) | 212 °F | 51 mm | 56 Series | Fiber | Construction Equipment | -6 | 33.4 mm | 0.22 lb/ft | 10 mm | Copolyester | -57 °C | Copolyester | SAE J517 and 100R18 | 3/8 | Natural, Twin Line |
|
|
53DM-8 |
345 In Stock
|
3350 In Stock
|
$8.13/foot
|
FT | Parflex Division | 3000 psi | 4:1 | Water | 212 °F | 3-1/2 inch | 56 Series | Fiber | Over-the-Sheave | -8 | 21.3 mm | 0.26 kg/m | 1/2 inch | Copolyester | -57 °C | Copolyester | SAE J517 and 100R18 | 1/2 | Natural, Single |
