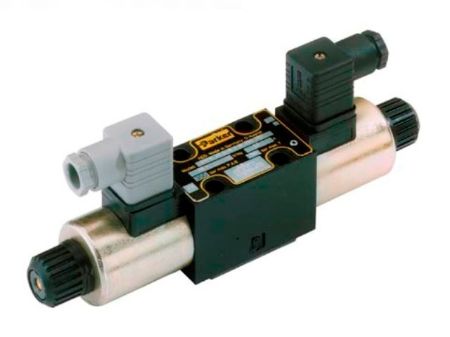

D1VW Series - Double solenoid, 3 position, spring centered
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
D1VW Series - Double solenoid, 3 position, spring centered - NFPA D03 (CETOP 3, NG 6)
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Pkg Qty | Seals | Solenoid Voltage | Parker Spool Code | Parker Valve Style Code | Spool Type | Solenoid Connection | Max Flow (at 3000 PSI) | Parker Group | Parker Division | Operator Type | Series | Max Pressure | Seals | Solenoid Connection | Solenoid Voltage | Parker Spool Code | Parker Valve Style Code | Spool Type | Valve Style | Subplate Pattern | Max Flow (at 3000 PSI) | Valve Variation | Valve Variation | Coil Option | Coil Option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D1VW001CNJC | Quote Required | 3 In Stock | $544.50/each | EA | EA | 1 | Buna-N (Nitrile) | 24 VDC | 1 | C | Closed Center - All Ports Blocked | Conduit | 20 GPM (77 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Conduit | 24 VDC | 1 | C | Closed Center - All Ports Blocked | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 20 GPM (77 LPM) | |||||
| D1VW001CNJG5 | Quote Required | $557.25/each | EA | EA | 1 | Buna-N (Nitrile) | 24 VDC | 1 | C | Closed Center - All Ports Blocked | Plug-In Conduit Box | 20 GPM (77 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Plug-In Conduit Box | 24 VDC | 1 | C | Closed Center - All Ports Blocked | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 20 GPM (77 LPM) | Signal Lights | Signal Lights | ||||
| D1VW001CNJW | 13 In Stock | 41 In Stock | $512.25/each | EA | EA | 1 | Buna-N (Nitrile) | 24 VDC | 1 | C | Closed Center - All Ports Blocked | DIN Style (43650) w/o Plug | 20 GPM (77 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | DIN Style (43650) w/o Plug | 24 VDC | 1 | C | Closed Center - All Ports Blocked | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 20 GPM (77 LPM) | |||||
| D1VW001CNYC | 2 Limited Stock | 2 Limited Stock | $544.50/each | EA | EA | 1 | Buna-N (Nitrile) | 120/60 - 110/50 VAC | 1 | C | Closed Center - All Ports Blocked | Conduit | 20 GPM (77 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Conduit | 120/60 - 110/50 VAC | 1 | C | Closed Center - All Ports Blocked | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 20 GPM (77 LPM) | |||||
| D1VW001CNYCF | 15 In Stock | 35 In Stock | $544.50/each | EA | EA | 1 | Buna-N (Nitrile) | 120/60 - 110/50 VAC | 1 | C | Closed Center - All Ports Blocked | Conduit | 14 GPM (54 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Conduit | 120/60 - 110/50 VAC | 1 | C | Closed Center - All Ports Blocked | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 14 GPM (54 LPM) | Low Watt | Low Watt | |||
| D1VW001CNYG5 | Quote Required | $556.50/each | EA | EA | 1 | Buna-N (Nitrile) | 120/60 - 110/50 VAC | 1 | C | Closed Center - All Ports Blocked | Plug-In Conduit Box | 20 GPM (77 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Plug-In Conduit Box | 120/60 - 110/50 VAC | 1 | C | Closed Center - All Ports Blocked | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 20 GPM (77 LPM) | Signal Lights | Signal Lights | ||||
| D1VW001CNYW | 9 In Stock | 22 In Stock | $515.25/each | EA | EA | 1 | Buna-N (Nitrile) | 120/60 - 110/50 VAC | 1 | C | Closed Center - All Ports Blocked | DIN Style (43650) w/o Plug | 20 GPM (77 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | DIN Style (43650) w/o Plug | 120/60 - 110/50 VAC | 1 | C | Closed Center - All Ports Blocked | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 20 GPM (77 LPM) | |||||
| D1VW001CNYWF | Quote Required | 22 In Stock | $515.25/each | EA | EA | 1 | Buna-N (Nitrile) | 120/60 - 110/50 VAC | 1 | C | Closed Center - All Ports Blocked | DIN Style (43650) w/o Plug | 14 GPM (54 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | DIN Style (43650) w/o Plug | 120/60 - 110/50 VAC | 1 | C | Closed Center - All Ports Blocked | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 14 GPM (54 LPM) | Low Watt | Low Watt | |||
| D1VW004CNJC | 1 Limited Stock | 22 In Stock | $544.50/each | EA | EA | 1 | Buna-N (Nitrile) | 24 VDC | 4 | C | Float Center - P Blocked, A&B > T | Conduit | 20 GPM (77 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Conduit | 24 VDC | 4 | C | Float Center - P Blocked, A&B > T | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 20 GPM (77 LPM) | |||||
| D1VW004CNJG5 | Quote Required | 45 In Stock | $557.25/each | EA | EA | 1 | Buna-N (Nitrile) | 24 VDC | 4 | C | Float Center - P Blocked, A&B > T | Plug-In Conduit Box | 20 GPM (77 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Plug-In Conduit Box | 24 VDC | 4 | C | Float Center - P Blocked, A&B > T | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 20 GPM (77 LPM) | Signal Lights | Signal Lights | |||
| D1VW004CNJW | Quote Required | 156 In Stock | $512.25/each | EA | EA | 1 | Buna-N (Nitrile) | 24 VDC | 4 | C | Float Center - P Blocked, A&B > T | DIN Style (43650) w/o Plug | 20 GPM (77 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | DIN Style (43650) w/o Plug | 24 VDC | 4 | C | Float Center - P Blocked, A&B > T | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 20 GPM (77 LPM) | |||||
| D1VW004CNYC | Quote Required | 7 In Stock | $544.50/each | EA | EA | 1 | Buna-N (Nitrile) | 120/60 - 110/50 VAC | 4 | C | Float Center - P Blocked, A&B > T | Conduit | 20 GPM (77 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Conduit | 120/60 - 110/50 VAC | 4 | C | Float Center - P Blocked, A&B > T | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 20 GPM (77 LPM) | |||||
| D1VW004CNYCF | 18 In Stock | 27 In Stock | $544.50/each | EA | EA | 1 | Buna-N (Nitrile) | 120/60 - 110/50 VAC | 4 | C | Float Center - P Blocked, A&B > T | Conduit | 14 GPM (54 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Conduit | 120/60 - 110/50 VAC | 4 | C | Float Center - P Blocked, A&B > T | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 14 GPM (54 LPM) | Low Watt | Low Watt | |||
| D1VW004CNYG5 | Quote Required | $556.50/each | EA | EA | 1 | Buna-N (Nitrile) | 120/60 - 110/50 VAC | 4 | C | Float Center - P Blocked, A&B > T | Plug-In Conduit Box | 20 GPM (77 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Plug-In Conduit Box | 120/60 - 110/50 VAC | 4 | C | Float Center - P Blocked, A&B > T | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 20 GPM (77 LPM) | Signal Lights | Signal Lights | ||||
| D1VW004CNYW | 10 In Stock | 36 In Stock | $515.25/each | EA | EA | 1 | Buna-N (Nitrile) | 120/60 - 110/50 VAC | 4 | C | Float Center - P Blocked, A&B > T | DIN Style (43650) w/o Plug | 20 GPM (77 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | DIN Style (43650) w/o Plug | 120/60 - 110/50 VAC | 4 | C | Float Center - P Blocked, A&B > T | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 20 GPM (77 LPM) | |||||
| D1VW004CNYWF | Quote Required | 10 In Stock | $515.25/each | EA | EA | 1 | Buna-N (Nitrile) | 120/60 - 110/50 VAC | 4 | C | Float Center - P Blocked, A&B > T | DIN Style (43650) w/o Plug | 14 GPM (54 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | DIN Style (43650) w/o Plug | 120/60 - 110/50 VAC | 4 | C | Float Center - P Blocked, A&B > T | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 14 GPM (54 LPM) | Low Watt | Low Watt | |||
| D1VW008CNJC | Quote Required | $544.50/each | EA | EA | 1 | Buna-N (Nitrile) | 24 VDC | 8 | C | Tandem Center - P > T, A&B Blocked | Conduit | 12 GPM (46 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Conduit | 24 VDC | 8 | C | Tandem Center - P > T, A&B Blocked | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 12 GPM (46 LPM) | ||||||
| D1VW008CNJW | Quote Required | 15 In Stock | $515.25/each | EA | EA | 1 | Buna-N (Nitrile) | 24 VDC | 8 | C | Tandem Center - P > T, A&B Blocked | DIN Style (43650) w/o Plug | 12 GPM (46 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | DIN Style (43650) w/o Plug | 24 VDC | 8 | C | Tandem Center - P > T, A&B Blocked | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 12 GPM (46 LPM) | |||||
| D1VW008CNYC | Quote Required | 6 In Stock | $544.50/each | EA | EA | 1 | Buna-N (Nitrile) | 120/60 - 110/50 VAC | 8 | C | Tandem Center - P > T, A&B Blocked | Conduit | 12 GPM (46 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Conduit | 120/60 - 110/50 VAC | 8 | C | Tandem Center - P > T, A&B Blocked | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 12 GPM (46 LPM) | |||||
| D1VW008CNYCF | 4 In Stock | 20 In Stock | $544.50/each | EA | EA | 1 | Buna-N (Nitrile) | 120/60 - 110/50 VAC | 8 | C | Tandem Center - P > T, A&B Blocked | Conduit | 8 GPM (31 LPM) | Hydraulic | Hydraulic Valve | Solenoid | D1VW | 5000 PSI (345 Bar) | Buna-N (Nitrile) | Conduit | 120/60 - 110/50 VAC | 8 | C | Tandem Center - P > T, A&B Blocked | Double solenoid, 3 position, spring centered | NFPA D03 (CETOP 3, NG 6) | 8 GPM (31 LPM) | Low Watt | Low Watt |
