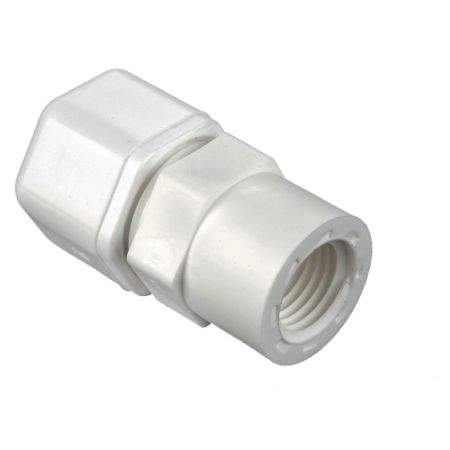

Compression Style Plastic Fittings, Fast-Tite
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Fast & Tite fittings are a compression style fitting that installs in seconds without tools and provides a tight, sure, leak proof seal without clamps or adjustments. A unique grab ring for tube retention, coupled with a Nitrile o-ring creates a positive seal and assures good tube retention with only hand tight assembly.
Use with soft metal, glass tubing and the following Parker Parflex Division tubing.
• Polyethylene
• Nylon
• Polypropylene
• Polyurethane
• PTFE
• FEP
• PFA
Markets:
• Water Filtration
• Beverage Dispensing
• Packaging
• Life Science
• Bottling
• Semi-Conductor
Features/Benefits:
• White or black Polypropylene or white Nylon
• Installs in seconds without tools
• 302 stainless steel grab ring for tube retention
• Nitrile O-ring for positive seal
• FDA compliant , NSF-51
• Hand tight assembly
Applications:
• Water Lines
• Beverage Lines
• Food
• Cooling Systems
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | Division | Body Material | Product Style | Body Material | Connection 1 Type | Connection 1 Tube Outside Diameter | Gripping Ring Material | Minimum Operating Temperature | For Fluid Type | Maximum Operating Temperature | Maximum Operating Pressure | Application | Seal Material | Tube Material | Specifications Met | Connection 2 Thread Size | Connection 2 Type | Configuration | O-Ring Material | Media | Shape | Connection 2 Tube Outside Diameter | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10GR | 1 Limited Stock | 8 In Stock | $0.40/each | Fluid System Connectors Division | Stainless Steel | Tube | N/A | Tube | 5/8" (O.D.) | ||||||||||||||||||
| 10GRP | Quote Required | 218 In Stock | $1.33/each | Fluid System Connectors Division | Plastic | Tube | N/A | Tube | 5/8" (O.D.) | Ultem | |||||||||||||||||
| 4GR | Quote Required | 735 In Stock | $0.30/each | Fluid System Connectors Division | Stainless Steel | Tube | N/A | Tube | 1/4" (O.D.) | ||||||||||||||||||
| 4GRP | Quote Required | 327 In Stock | $0.58/each | Fluid System Connectors Division | Plastic | Tube | N/A | Tube | 1/4" (O.D.) | Ultem | |||||||||||||||||
| 6GR | Quote Required | 486 In Stock | $0.35/each | Fluid System Connectors Division | Stainless Steel | Tube | N/A | Tube | 3/8" (O.D.) | ||||||||||||||||||
| 6GRP | Quote Required | 577 In Stock | $0.76/each | Fluid System Connectors Division | Plastic | Tube | N/A | Tube | 3/8" (O.D.) | 302 Stainless Steel | |||||||||||||||||
| 8GR | Quote Required | 209 In Stock | $0.40/each | Fluid System Connectors Division | Stainless Steel | Tube | N/A | Tube | 1/2" (O.D.) | ||||||||||||||||||
| 8GRP | Quote Required | 217 In Stock | $0.81/each | Fluid System Connectors Division | Plastic | Tube | N/A | Tube | 1/2" (O.D.) | Ultem | |||||||||||||||||
| N10MC6 | Quote Required | 19 In Stock | $5.90/each | Fluid System Connectors Division | Nylon | Connector | Nylon | Compression | 5/8" (O.D.) | Stainless Steel AISI 302 | -40 °C | Air | 200 °F | 50 psi | Dispensing | Nitrile (O-Ring) | Soft Metal | NSF 51 | 3/8" | NPTF | Tube to Pipe | ||||||
| N10MC8 | Quote Required | 6 In Stock | $4.28/each | Fluid System Connectors Division | Nylon | Connector | Nylon | Compression | 5/8" (O.D.) | Stainless Steel AISI 302 | -40 °F | Other Compatible Fluids | 200 °F | 3.5 bar | Dispensing | Nitrile (O-Ring) | Thermoplastic | FDA | 1/2" | NPTF | Tube to Pipe | ||||||
| N10NS | Quote Required | TBD | Fluid System Connectors Division | Nylon | Tube | Nylon | Tube | 5/8" (O.D.) | 302 Stainless Steel | -40 °C | 93 °C | 50 psi | Filtration, Purification, Dispensing | Thermoplastic, Glass, Soft Metal | FDA, NSF-51 | Nitrile | Water, Air, Other Compatible Fluids | ||||||||||
| N10TS8 | 73 In Stock | Quote Required | $4.30/each | Fluid System Connectors Division | Nylon | Tube | Nylon | Tube | 5/8" (O.D.) | 302 Stainless Steel | -40 °C | 93 °C | 50 psi | Filtration, Purification, Dispensing | Thermoplastic, Glass, Soft Metal | FDA, NSF-51 | Nitrile | Water, Air, Other Compatible Fluids | |||||||||
| N10TU10 | Quote Required | $12.66/each | Fluid System Connectors Division | Nylon | Nylon | Compression | 5/8" (O.D.) | 302 Stainless Steel | -40 °F | 200 °F | 3.5 bar | Filtration, Purification, Dispensing | Thermoplastic, Glass, Soft Metal | FDA, NSF-51 | Compression | Tube to Tube | Nitrile | Water, Air, Other Compatible Fluids | Tee | 5/8" (O.D.) | |||||||
| N4EU4 | 11 In Stock | 43 In Stock | $3.96/each | Fluid System Connectors Division | Nylon | Nylon | Compression | 1/4" (O.D.) | 302 Stainless Steel | -40 °F | 200 °F | 20 bar | Filtration, Purification, Dispensing | Thermoplastic, Glass, Soft Metal | FDA, NSF-51 | Compression | Tube to Tube | Nitrile | Water, Air, Other Compatible Fluids | Elbow 90° | 1/4" (O.D.) | ||||||
| N4FC4 | Quote Required | 27 In Stock | $3.20/each | Fluid System Connectors Division | Nylon | Connector | Nylon | Compression | 1/4" (O.D.) | Stainless Steel AISI 302 | -40 °F | Water | 93 °C | 300 psi | Dispensing | Nitrile (O-Ring) | Glass | FDA | 1/4" | NPTF | Tube to Female Pipe | ||||||
| N4FE2 | Quote Required | $3.18/each | Fluid System Connectors Division | Nylon | Nylon | Compression | 1/4" (O.D.) | Stainless Steel AISI 302 | -40 °C | Water | 93 °C | 300 psi | Dispensing | Nitrile (O-Ring) | Thermoplastic | FDA | 1/8" | NPTF | Tube to Female Pipe | Elbow 90° | |||||||
| N4MC2 | 2 Limited Stock | 36 In Stock | $2.03/each | Fluid System Connectors Division | Nylon | Connector | Nylon | Compression | 1/4" (O.D.) | Stainless Steel AISI 302 | -40 °F | Air | 200 °F | 20 bar | Filtration | Nitrile (O-Ring) | Glass | NSF 51 | 1/8" | NPTF | Tube to Pipe | 0.2914 lb | |||||
| N4MC4 | 9 In Stock | 109 In Stock | $2.12/each | Fluid System Connectors Division | Nylon | Connector | Nylon | Compression | 1/4" (O.D.) | Stainless Steel AISI 302 | -40 °C | Air | 200 °F | 300 psi | Purification | Nitrile (O-Ring) | Glass | NSF 51 | 1/4" | NPTF | Tube to Pipe | 0.2914 lb | |||||
| N4ME2 | 6 In Stock | 18 In Stock | $2.46/each | Fluid System Connectors Division | Nylon | Nylon | Compression | 1/4" (O.D.) | Stainless Steel AISI 302 | -40 °C | Water | 93 °C | 300 psi | Dispensing | Nitrile (O-Ring) | Glass | NSF 51 | 1/8" | NPTF | Tube to Pipe | Elbow 90° | 0.2914 lb | |||||
| N4ME4 | Quote Required | 8 In Stock | $2.47/each | Fluid System Connectors Division | Nylon | Nylon | Compression | 1/4" (O.D.) | Stainless Steel AISI 302 | -40 °F | Water | 93 °C | 20 bar | Dispensing | Nitrile (O-Ring) | Soft Metal | FDA | 1/4" | NPTF | Tube to Pipe | Elbow 90° | 0.5504 lb |
