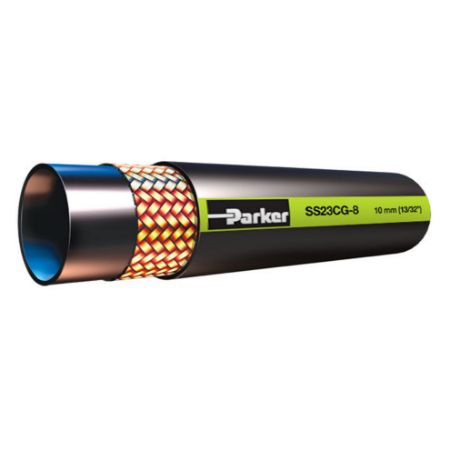

Compressed Natural Gas and Liquefied Petroleum Gas Hose 350 PSI - SS23CG Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's SS23CG hose is a compressed natural gas and liquefied petroleum gas hose that has a constant working pressure of 350 PSI to deliver consistency and reliability. The SS23CG hose is designed, built, and tested to meet UL 21 / CSA 8.1 2015 Type III / NFPA 58 performance specifications. Sizes range from 5/16” to 5/8” in diameter to fit the requirements of various markets. For ECE R110 and ECE R67 approval, contact Hose Products Division.
Markets:
• Transportation
• Agriculture
• Material Handling
Features/Benefits:
• 350 PSI constant working pressure in different sizes
• Meets UL 21 / CSA 8.1 2015 Type III / NFPA 58 certifications
Applications:
• Liquefied petroleum gas (LPG)
• Compressed natural gas (CNG)
Compatible Fittings:
• 26 series fittings
Read More...Markets:
• Transportation
• Agriculture
• Material Handling
Features/Benefits:
• 350 PSI constant working pressure in different sizes
• Meets UL 21 / CSA 8.1 2015 Type III / NFPA 58 certifications
Applications:
• Liquefied petroleum gas (LPG)
• Compressed natural gas (CNG)
Compatible Fittings:
• 26 series fittings
| Action | Part No. | Availability | Partner Available | Price | UOM | Hose Reinforcement Material | Minimum Operating Temperature | Hose Cover Type | Specifications Met | Media | Compatible Fitting | Weight | Inside Diameter | Maximum Operating Temperature | Nominal Hose Inside Diameter | Cover Material | Outside Diameter | Division | Minimum Bend Radius | Hose Inner Tube Material | Application | Maximum Operating Pressure | Hose I.D. (size) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS23CG-10 | Quote Required | TBD | 1 Braid of Steel Wire | -40 °C | Standard Cover | ECE R110, Class 1 (Standard 21 LPG) | Welding Gases (Technical Gases) | 26 Series | 0.42 kg/m | 12.5 mm | 121 °C | 12 mm | Synthetic Rubber | 23.4 mm | Hose Products Division | 5-1/2 inch | Polyamide (PA) | Liquefied Petroleum Gas (LPG) | 3 MPa | -10 | |||
| SS23CG-12 | Quote Required | TBD | 1 Braid of Steel Wire | -40 °F | Standard Cover | CGA Type III | Welding Gases (Technical Gases) | 26 Series | 0.3 lb/ft | 15.9 mm | 121 °C | 15 mm | Synthetic Rubber | 1.050 inch | Hose Products Division | 165 mm | Polyamide (PA) | Compressed Natural Gas (CNG) | 3 MPa | -12 | |||
| SS23CG-6 | Quote Required | 644 In Stock | TBD | FT | 1 Braid of Steel Wire | -40 °F | Standard Cover | ECE R110, Class 1 (Standard 21 LPG) | Welding Gases (Technical Gases) | 26 Series | 0.16 lb/ft | 5/16 inch | 250 °F | 8 mm | Synthetic Rubber | 0.680 inch | Hose Products Division | 100 mm | Polyamide (PA) | Liquefied Petroleum Gas (LPG) | 3 MPa | -6 | |
| SS23CG-8 | Quote Required | TBD | 1 Braid of Steel Wire | -40 °F | Standard Cover | ECE R110, Class 1 (Standard 21 LPG) | Welding Gases (Technical Gases) | 26 Series | 0.17 lb/ft | 10 mm | 121 °C | 10 mm | Synthetic Rubber | 19.5 mm | Hose Products Division | 115 mm | Polyamide (PA) | Compressed Natural Gas (CNG) | 350 psi | -8 |
