Compressed Air & Gas - Up to 185 PSIG - ASME Vessels
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

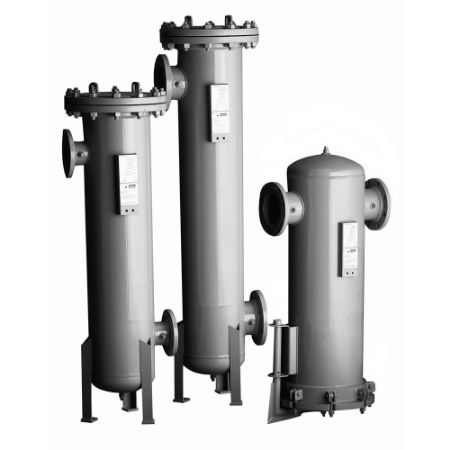

Parker’s Finite filters large capacity ASME filter vessels have been designed specifically for our coalescing elements and incorporate large sump capacities and generous exit cavities for maximum performance with low differential pressures.
All units are "U" stamped and conform to ASME Section VIII standard code for pressure vessels. With flow capacities to 37,000 SCFM and optional materials of construction, most compressor source filtration requirements can be met.
Features/Benefits
• Flow capacities up to 37,000 scfm
• Port sizing up to 16"
• Coalescing, particulate, absorber, and water separator filter elements available
• Floor-standing or Line mounted (T-type) configurations available
• Designed per ASME code / CRN (Canadian Registration)
• Maximum temperature 450°F
• Max Pressure 185 PSIG, (higher pressures upon request)
• Each filter vessel has a 1/2" drain and vent ports
• Filter vessels allow for easy element change out
Read More...All units are "U" stamped and conform to ASME Section VIII standard code for pressure vessels. With flow capacities to 37,000 SCFM and optional materials of construction, most compressor source filtration requirements can be met.
Features/Benefits
• Flow capacities up to 37,000 scfm
• Port sizing up to 16"
• Coalescing, particulate, absorber, and water separator filter elements available
• Floor-standing or Line mounted (T-type) configurations available
• Designed per ASME code / CRN (Canadian Registration)
• Maximum temperature 450°F
• Max Pressure 185 PSIG, (higher pressures upon request)
• Each filter vessel has a 1/2" drain and vent ports
• Filter vessels allow for easy element change out
| Action | Part No. | Availability | Partner Available | Price | UOM | Application | Width | Maximum Flow Rate | Maximum Operating Temperature | Height | Drain Port Size | Weight | Seal Material | Division | Element Removal Clearance | Brand | Maximum Operating Pressure | Port Connection (inch) | Micron Rating (µm) | Efficiency Rating % | Number of Elements | Filter Type | Maximum Flow Rate (cfm) | Replacement Element | Port Type | Body Type | Maximum Operating Temperature (F) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT4-1201-100WS | Quote Required | TBD | EA | Compressed Air and Gas | 50.8 mm | 5640 m3/hour | 232 °C | 108.5 mm | 1/2 inch | 380 lb | Silicone | Industrial Gas Filtration and Generation Division | 25" inch | Finite | 185 psig | 4" | 100 | 99+ | 1 | Water Separator | 3320 | 100WS85-250 | FLANGE | Line-Mount Vessel | 450 |
