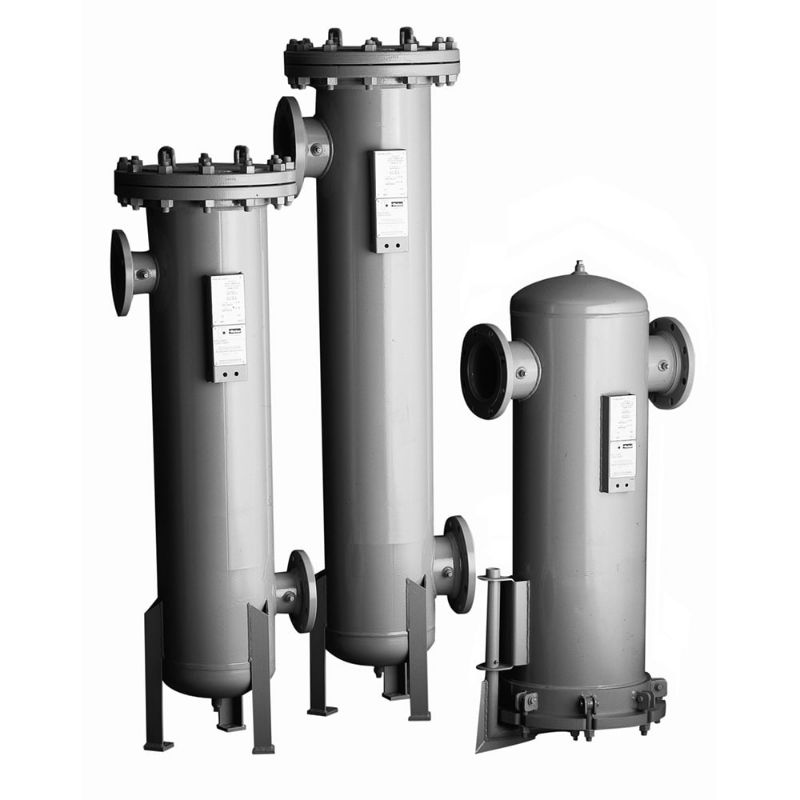

Parker FT4-1201-100WS - Compressed Air & Gas - Up to 185 PSIG - ASME Vessels

Parker’s Finite filter vessels eliminate oil, water, and particulate contamination from large flows of compressed air and gas.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FT4-1201-100WS

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Compressed Air and Gas
Width	50.8 mm	Maximum Flow Rate	5640 m3/hour
Maximum Operating Temperature	232 °C	Height	108.5 mm
Drain Port Size	1/2 inch	Weight	380 lb
Seal Material	Silicone	Division	Industrial Gas Filtration and Generation Division
Element Removal Clearance	25" inch	Brand	Finite
Maximum Operating Pressure	185 psig	Port Connection (inch)	4"
Micron Rating (µm)	100	Efficiency Rating %	99+
Number of Elements	1	Filter Type	Water Separator
Maximum Flow Rate (cfm)	3320	Replacement Element	100WS85-250
Port Type	FLANGE	Body Type	Line-Mount Vessel
Maximum Operating Temperature (F)	450
