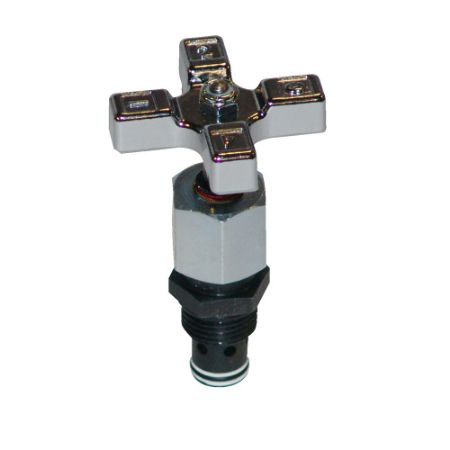

Colorflow Precision Needle Valve – MVI Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s MVI cartridge-type needle valves are designed for installation in a precision-machined cavity made in the manifold of the machine and can be used in air, water & oil applications. These valves provide precise metering control and full shutoff of flow. An o-ring and backup ring installed on the cartridge fully isolate the inlet and outlet ports of the machined cavity from each other.
Markets:
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits:
• High efficiency o-ring stem seal eliminates packing
• Fine and micro-fine needles available for extremely fine control
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits:
• High efficiency o-ring stem seal eliminates packing
• Fine and micro-fine needles available for extremely fine control
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
Applications:
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | Connection Size | Brand | Seal Material | Maximum Operating Pressure | Function | Flow Rate | Minimum Operating Temperature | Actuation Type | Body Material | Maximum Flow Rate | Product Style | For Fluid Type | Connection Type | Division | Configuration | Maximum Operating Temperature | Body Material | Seal Material | Flow Rate | Connection Type | Maximum Operating Pressure | Minimum Operating Temperature | Actuation Type | Maximum Flow Rate | Connection Size | Needle option | Function | Maximum Operating Temperature | Configuration | For Fluid Type | Operation Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MVI1200S | Quote Required | 8 In Stock | $1,299.00/each | 3/4" | Colorflow | Nitrile | 5000 psi | Needle Valve | 25 | -40° °F | Manual | Steel | 95 L/min | Metering Valve | Oil | NPT | Hydraulic Valve Systems Division | Cartridge Type | +250 °F | Steel | Nitrile | n/a | NPT | 5000 | -40 | Manual | 25 | 3/4 | Standard | Needle Vlave | +250° F | Cartridge Type | Hydraulic Oil | N/A | |
| MVI400S | Quote Required | 53 In Stock | $513.00/each | 1/4" | Colorflow | Nitrile | 5000 | Needle Valve | 5 | -40° | Manual | Steel | 19 | Metering Valve | Oil | NPT | Hydraulic Valve Systems Division | Cartridge Type | +250 | Steel | Nitrile | n/a | NPT | 5000 | -40 | Manual | 5 | 1/4 | Standard | Needle Vlave | +250° F | Cartridge Type | Hydraulic Oil | N/A |
