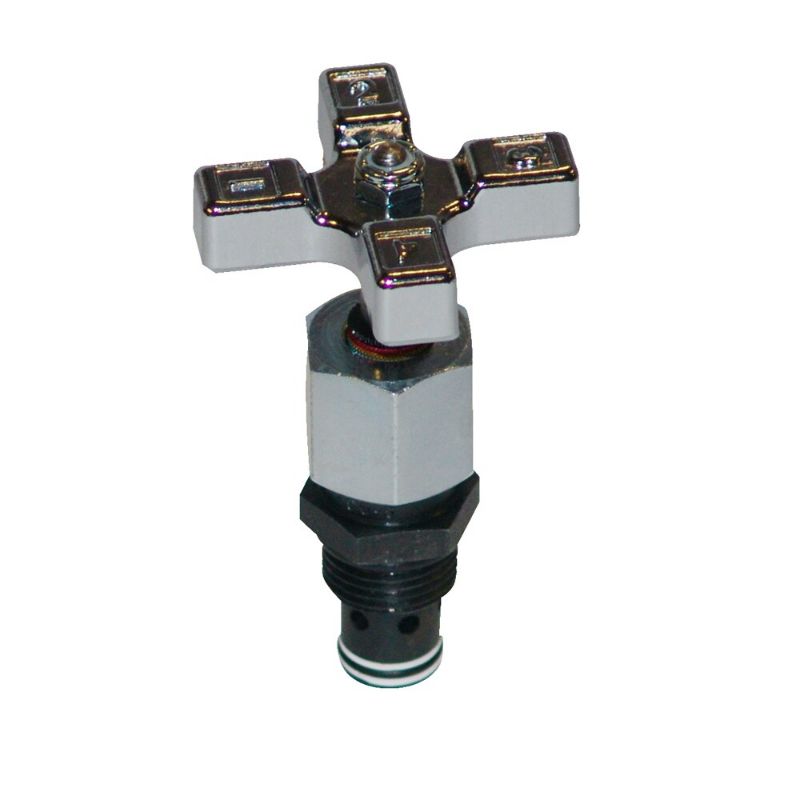

Parker MVI1200S - Colorflow Precision Needle Valve – MVI Series

Parker’s Colorflow MVI series is a cartridge-type metering valve that meters flow in both directions.

Availability:	Quote Required
Partner Available:	8 In Stock

Brand Parker

Part No. MVI1200S

$1,248.75

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
For Fluid Type	Oil	Body Material	Steel
Connection Type	NPT	Maximum Operating Pressure	5000 psi
Division	Hydraulic Valve Systems Division	Flow Rate	25
Actuation Type	Manual	Brand	Colorflow
Maximum Flow Rate	95 L/min	Minimum Operating Temperature	-40° °F
Connection Size	3/4"	Maximum Operating Temperature	+250 °F
Function	Needle Valve	Configuration	Cartridge Type
Product Style	Metering Valve	Body Material	Steel
Seal Material	Nitrile	Flow Rate	n/a
Connection Type	NPT	Maximum Operating Pressure	5000
Minimum Operating Temperature	-40	Actuation Type	Manual
Maximum Flow Rate	25	Connection Size	3/4
Needle option	Standard	Function	Needle Vlave
Maximum Operating Temperature	+250° F	Configuration	Cartridge Type
For Fluid Type	Hydraulic Oil	Operation Type	N/A
