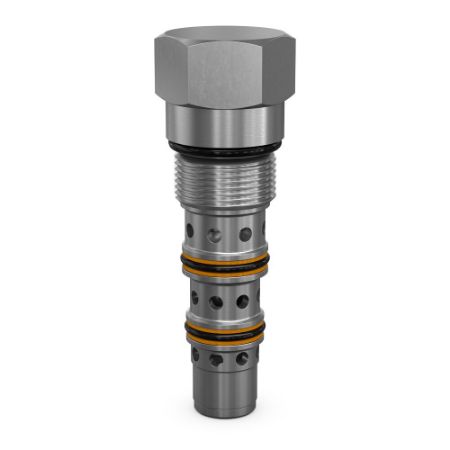

Cartridge Spool Type Shuttle Valves with All Ports Open
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 3-position, 3-way spool type open center shuttle valves can handle flows up to 100 lpm (26 gpm) and 420 bar (6000 psi) while providing precise flow control for sequencing or pressuring sensing applications within various mobile or industrial markets. These spring centered valves use internal pilot signals to shift when pressure at either end of the spool exceeds the spring setting, allowing flow from the higher pressure port to the lower pressure port, making them ideal for sensing or sequencing applications.
Markets:
• Aerial
• Construction Equipment
• Forestry Equipment
• Material Handling Equipment
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• High flow capacity
• Various switching pressures available
• Hardened working parts for maximum durability
• All external parts zinc plated
Applications:
• Transmissions, hot oil shuttle
• Sequencing
Additional Technical Insight:
Available in two sizes, these valves are generally used in a transmission circuit where the excess charge pump flow is directed to a cooler. This valve will be selected by the drive side and direct the excess flow from the return side to tank.
Read More...Markets:
• Aerial
• Construction Equipment
• Forestry Equipment
• Material Handling Equipment
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• High flow capacity
• Various switching pressures available
• Hardened working parts for maximum durability
• All external parts zinc plated
Applications:
• Transmissions, hot oil shuttle
• Sequencing
Additional Technical Insight:
Available in two sizes, these valves are generally used in a transmission circuit where the excess charge pump flow is directed to a cooler. This valve will be selected by the drive side and direct the excess flow from the return side to tank.
| Action | Part No. | Availability | Partner Available | Price | Configuration | Function | Cavity Size | For Fluid Type | Maximum Operating Temperature | Switching Pressure | Leak Rate | Body Material | Standard Flow Rate Setting | Maximum Flow Rate | Operation Type | Minimum Operating Temperature | Division | Operating Temperature | Flow Rate | Installation Torque | Actuation Type | Weight | Seal Material | Valve Material | Maximum Operating Pressure | Filter Efficiency Rating | Maximum Inlet Pressure Rating | Maximum Kinematic Viscosity | Switching Pressure | Seal Material | Flow Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K04F3-10.0N | Quote Required | $253.00/each | 3-way Spool Type | Shuttle | C10-4 | Mineral-based or synthetic hydraulic fluids | +250 °F | 145 psi | N/A | N/A | 55 L/min | 100 L/min | Spring Centered, All Parts Open | -34 °C | Mobile Hydraulic Systems Division Europe | -30 to +250 °F | 100 L/min | 50 Nm | Pressure Sensing | 0.17 kg | Nitrile | All parts steel. All operating parts hardened steel | 6000 psi | ISO 4406 18/16/13, SAE Class 4 | 420 bar | 45-2000 SSU (6 to 420 cSt) | 145 PSI, 10 BAR | Nitrile | 26 GAL/MIN, 100 L/MIN | ||
