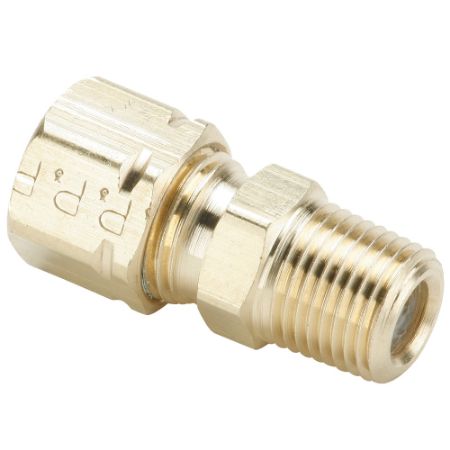

Brass Compression Fittings, Compress-Align
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's economical Compress-Align fittings are pre-assembled with a captive sleeve which is always oriented correctly for faster assembly. The captive sleeve gives a visible inspection before and after installation and the design of the sleeve aligns to seal even out-of-round tubing. Compress-Align can be used in many areas where flare fittings are used due to the higher pressure rating, meaning no flaring, soldering or tube preparation resulting in faster installation. Compress-Align bodies are interchangeable with standard compression bodies so inventory is decreased.
Use with copper, aluminum and the following Parker Parflex Division tubing.
• Polyethylene
• Nylon
• Polypropylene
• PTFE
• FEP
• PFA
Markets:
• Industrial
• Pneumatic
• Packaging
• Automation
• Chemical
• Compressors
• Water filtration
Features/Benefits:
• All brass construction
• Captive sleeve
• Higher working pressures versus standard compression fitting
• Bodies interchangeable with standard compression bodies
• Economical
• One wrench turn from finger tight for assembly for all sizes
• 1/8" through 1" sizes available
• U.L. listed for flammable liquids
Applications:
• Air lines
• Lubrication lines
• Fluid transfer
• Chemical dispensing
• Cooling lines
• Machine tool
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Connection Type | Maximum Operating Temperature | Maximum Operating Pressure | Nut Material | Media | Application | Minimum Operating Temperature | Tube Material | Sleeve Material | Body Material | Shape | Connection 1 Tube Outside Diameter | Configuration | Body Material | Connection 1 Type | Connection 2 Type | Connection 2 Tube Outside Diameter | Dimensional Weight | Connection 3 Type | Connection 3 Tube Outside Diameter | For Fluid Type | Materials of Construction | Connection 2 Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 164CA-10 | Quote Required | 3 In Stock | $63.86/each | EA | Fluid System Connectors Division | NPTF | 121 °C | 2800 psi | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -54 °C | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Tee | 5/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 5/8" (O.D.) | |||||||
| 164CA-12 | Quote Required | $66.69/each | EA | Fluid System Connectors Division | NPTF | 250 °F | 2800 psi | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -65 °F | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Tee | 3/4" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 3/4" (O.D.) | ||||||||
| 164CA-2 | 24 In Stock | 86 In Stock | $19.77/each | EA | Fluid System Connectors Division | NPTF | 250 °F | 193 bar | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -54 °C | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Tee | 1/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/8" (O.D.) | |||||||
| 164CA-4 | 430 In Stock | 895 In Stock | $13.02/each | EA | Fluid System Connectors Division | NPTF | 121 °C | 2800 psi | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -54 °C | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Tee | 1/4" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/4" (O.D.) | 0.1104 lb | ||||||
| 164CA-5 | 14 In Stock | 78 In Stock | $18.23/each | EA | Fluid System Connectors Division | NPTF | 121 °C | 193 bar | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -65 °F | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Tee | 5/16" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 5/16" (O.D.) | |||||||
| 164CA-6 | 79 In Stock | 186 In Stock | $18.45/each | EA | Fluid System Connectors Division | NPTF | 121 °C | 2800 psi | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -54 °C | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Tee | 3/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 3/8" (O.D.) | 0.1104 lb | ||||||
| 164CA-6-4-4 | 4 In Stock | 6 In Stock | $26.36/each | EA | Fluid System Connectors Division | NPTF | 250 °F | 2800 psi | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -65 °F | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Tee | 3/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/4" (O.D.) | Compression | 1/4" (O.D.) | |||||
| 164CA-8 | 19 In Stock | 99 In Stock | $38.22/each | EA | Fluid System Connectors Division | NPTF | 250 °F | 2800 psi | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -65 °F | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Tee | 1/2" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/2" (O.D.) | 0.2759 lb | ||||||
| 165CA-10 | Quote Required | 2 Limited Stock | $55.14/each | EA | Fluid System Connectors Division | NPTF | 250 °F | 193 bar | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -54 °C | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Elbow 90° | 5/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 5/8" (O.D.) | |||||||
| 165CA-12 | Quote Required | 30 In Stock | $92.91/each | EA | Fluid System Connectors Division | NPTF | 250 °F | 2800 psi | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -54 °C | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Elbow 90° | 3/4" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 3/4" (O.D.) | |||||||
| 165CA-2 | 1 Limited Stock | 44 In Stock | $18.20/each | EA | Fluid System Connectors Division | NPTF | 121 °C | 2800 psi | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -54 °C | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Elbow 90° | 1/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/8" (O.D.) | |||||||
| 165CA-3 | Quote Required | 7 In Stock | $13.12/each | EA | Fluid System Connectors Division | NPTF | 250 °F | 2800 psi | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -54 °C | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Elbow 90° | 3/16" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 3/16" (O.D.) | 0.2759 lb | ||||||
| 165CA-4 | 85 In Stock | 85 In Stock | $8.48/each | EA | Fluid System Connectors Division | NPTF | 121 °C | 193 bar | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -54 °C | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Elbow 90° | 1/4" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/4" (O.D.) | 0.2759 lb | ||||||
| 165CA-5 | Quote Required | 71 In Stock | $14.59/each | EA | Fluid System Connectors Division | NPTF | 250 °F | 2800 psi | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -65 °F | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Elbow 90° | 5/16" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 5/16" (O.D.) | |||||||
| 165CA-6 | 17 In Stock | 463 In Stock | $12.89/each | EA | Fluid System Connectors Division | NPTF | 250 °F | 193 bar | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -65 °F | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Elbow 90° | 3/8" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 3/8" (O.D.) | 0.2759 lb | ||||||
| 165CA-8 | 11 In Stock | 46 In Stock | $29.91/each | EA | Fluid System Connectors Division | NPTF | 121 °C | 2800 psi | Brass | Water, air, inert and non-combustible gasses | Compressors, Machine Tools, Dispensing, Pumps, Purification | -54 °C | Copper, Aluminum, TFE, FEA, PFA, Thermoplastic | Brass | Brass | Elbow 90° | 1/2" (O.D.) | Tube to Tube | Brass, Forged | Compression | Compression | 1/2" (O.D.) | 0.2759 lb | ||||||
| 169CA-10-8 | 13 In Stock | 165 In Stock | $23.75/each | EA | Fluid System Connectors Division | NPTF | 121 °C | 2800 psi | Pumps | -54 °C | PFA | Brass | Elbow 90° | 5/8" (O.D.) | Tube to Pipe | Brass, Forged | Compression | Male Pipe | Air | Brass (Sleeve) | 1/2" | ||||||||
| 169CA-12-12 | Quote Required | 1 Limited Stock | $51.85/each | EA | Fluid System Connectors Division | NPTF | 121 °C | 2800 psi | Dispensing | -54 °C | FEA | Brass | Elbow 90° | 3/4" (O.D.) | Tube to Pipe | Brass, Forged | Compression | Male Pipe | 0.5519 lb | Air | Brass (Nut) | 3/4" | |||||||
| 169CA-12-8 | Quote Required | 15 In Stock | $59.05/each | EA | Fluid System Connectors Division | NPTF | 121 °C | 2800 psi | Pumps | -65 °F | FEA | Brass | Elbow 90° | 3/4" (O.D.) | Tube to Pipe | Brass, Forged | Compression | Male Pipe | 0.5519 lb | Water | Brass (Sleeve) | 1/2" | |||||||
| 169CA-3-2 | 15 In Stock | 483 In Stock | $6.68/each | EA | Fluid System Connectors Division | NPTF | 121 °C | 2800 psi | Dispensing | -54 °C | PFA | Brass | Elbow 90° | 3/16" (O.D.) | Tube to Pipe | Brass, Forged | Compression | Male Pipe | 0.2759 lb | Inert Gases | Brass (Nut) | 1/8" |
