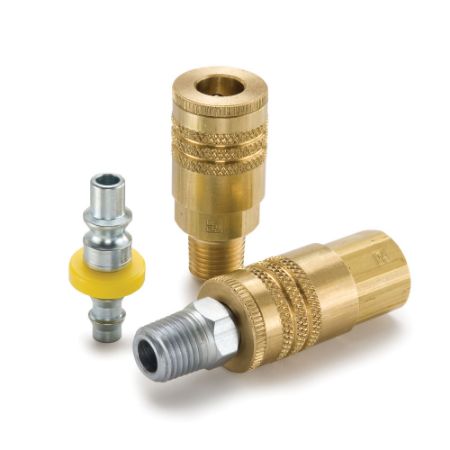

ARO 210 Interchange, Quick Connect Air Couplings - 50 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
50 Series Couplers connect with 50 Series Nipples and are interchangeable with the ARO 210 couplers. 50 Series quick couplings are pneumatic/air, manual sleeve, single shut off up to 300 psi. Couplers have an integral sleeve guard to resist accidental disconnection. The tubular valve delivers high air flow with minimal pressure drop. Couplers and Nipples are available in 1/4" size.
Technical Characteristics:
• Size: 1/4”
• Material: Brass Couplers; Steel Nipples
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
Markets:
• Furniture building
• Textile industry
• Industrial
• Construction
• Factory automation
Features/Benefits:
• Interchangeable with ARO 210 nipples
• Steel nipples are case hardened for durability
• Non-valved nipples mate with valved couplers for a single shut-off connection
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
• Paint applicators
Read More...Technical Characteristics:
• Size: 1/4”
• Material: Brass Couplers; Steel Nipples
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
Markets:
• Furniture building
• Textile industry
• Industrial
• Construction
• Factory automation
Features/Benefits:
• Interchangeable with ARO 210 nipples
• Steel nipples are case hardened for durability
• Non-valved nipples mate with valved couplers for a single shut-off connection
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
• Paint applicators
| Action | Part No. | Availability | Partner Available | Price | UOM | Body Material | Plating Type | Maximum Operating Temperature | Hex Size | Body Size | Valve Type | Product Type | Application | Dimensional Weight | Division | Minimum Operating Temperature | Maximum Operating Pressure | Interchange Type | Connection Type | Connection Thread Size (inch) | Coupling Half | Hose I.D. (inch) | Seal Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A2C | 517 In Stock | 2453 In Stock | $4.20/each | EA | Steel | Zinc with clear trivalent chromate | 250 °F | 0.56 inch | 1/4 inch | Unvalved | Manual Connect | Pneumatic Tools | 0.013329336530775381 lb | Quick Coupling Division | -40 °F | 300 psi | Interchangeable with ARO’s 210 series | Male NPTF | 1/4 - 18 | Male Nipple | na | ||
| A3C | 446 In Stock | 1148 In Stock | $4.94/each | EA | Steel | Zinc with clear trivalent chromate | 250 °F | 0.62 inch | 1/4 inch | Unvalved | Manual Connect | Pneumatic Tools | 0.013329336530775381 lb | Quick Coupling Division | -40 °F | 300 psi | Interchangeable with ARO’s 210 series | Female NPTF | 1/4 - 18 | Male Nipple | na | ||
| A8C | 61 In Stock | 131 In Stock | $9.40/each | EA | Steel | Zinc with clear trivalent chromate | 250 °F | 0.62 inch | 1/4 inch | Unvalved | Manual Connect | Pneumatic Tools | 0.013329336530775381 lb | Quick Coupling Division | -40 °F | 300 psi | Interchangeable with ARO’s 210 series | Hose barb | na | Male Nipple | 1/4 | ||
| A8CP | 17 In Stock | 432 In Stock | $10.56/each | EA | Steel | Zinc with clear trivalent chromate | 250 °F | 0.62 inch | 1/4 inch | Unvalved | Manual Connect | Air Compressors | 0.013329336530775381 lb | Quick Coupling Division | -40 °F | 300 psi | Interchangeable with ARO’s 210 series | Push-Lok hose barb | na | Male Nipple | 1/4 | ||
| B50-3BP | 24 In Stock | 136 In Stock | $31.96/each | EA | Brass | 250 °F | 0.75 inch | 1/4 inch | Tubular | Manual Connect | Air Compressors | 0.026658673061550762 lb | Quick Coupling Division | -40 °F | 300 psi | Interchangeable with ARO’s 210 series | Push-Lok hose barb | na | Female Coupler | 1/4 | Nitrile | ||
| B50-5BP | 8 In Stock | 215 In Stock | $32.48/each | EA | Brass | 250 °F | 0.75 inch | 1/4 inch | Tubular | Manual Connect | Pneumatic Tools | 0.026658673061550762 lb | Quick Coupling Division | -40 °F | 300 psi | Interchangeable with ARO’s 210 series | Push-Lok hose barb | na | Female Coupler | 3/8 | Nitrile | ||
| B52 | 199 In Stock | 548 In Stock | $25.80/each | EA | Brass | 250 °F | 0.75 inch | 1/4 inch | Tubular | Manual Connect | Air Compressors | 0.026658673061550762 lb | Quick Coupling Division | -40 °F | 300 psi | Interchangeable with ARO’s 210 series | Male NPTF | 1/4 - 18 | Female Coupler | na | Nitrile | ||
| B52E | 35 In Stock | 53 In Stock | $28.82/each | EA | Brass | 250 °F | 0.75 inch | 1/4 inch | Tubular | Manual Connect | Pneumatic Tools | 0.026658673061550762 lb | Quick Coupling Division | -40 °F | 300 psi | Interchangeable with ARO’s 210 series | Male NPTF | 3/8 - 18 | Female Coupler | na | Nitrile | ||
| B53 | 365 In Stock | 1068 In Stock | $24.44/each | EA | Brass | 250 °F | 0.75 inch | 1/4 inch | Tubular | Manual Connect | Pneumatic Tools | 0.026658673061550762 lb | Quick Coupling Division | -40 °F | 300 psi | Interchangeable with ARO’s 210 series | Female NPTF | 1/4 - 18 | Female Coupler | na | Nitrile | ||
| B53E | 33 In Stock | 60 In Stock | $30.13/each | EA | Brass | 250 °F | 0.81 inch | 1/4 inch | Tubular | Manual Connect | Air Compressors | 0.02670863309352518 lb | Quick Coupling Division | -40 °F | 300 psi | Interchangeable with ARO’s 210 series | Female NPTF | 3/8 - 18 | Female Coupler | na | Nitrile |
