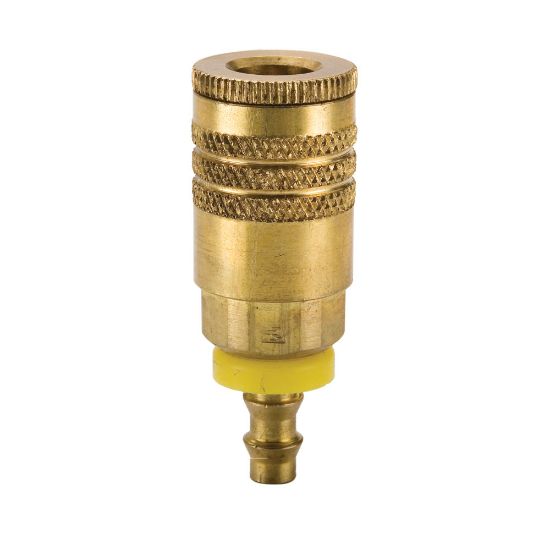

Parker B50-5BP - ARO 210 Interchange, Quick Connect Air Couplings - 50 Series

Name: Parker B50-5BP - ARO 210 Interchange, Quick Connect Air Couplings - 50 Series
SKU: B50-5BP
Price: 30.64 USD
Availability: InStock

Parker's general purpose pneumatic, air quick connect couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:

8 In Stock

Richmond, VA	3
Johnson City, TN	3
Knoxville, TN	2

Partner Available:

274 In Stock

Brand Parker

Part No. B50-5BP

$30.64

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	250 °F
Seal Material	Nitrile	Body Material	Brass
Body Size	1/4 inch	Valve Type	Tubular
Hex Size	0.75 inch	Product Type	Manual Connect
Application	Pneumatic Tools	Dimensional Weight	0.026658673061550762 lb
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	300 psi	Interchange Type	Interchangeable with ARO’s 210 series
Connection Type	Push-Lok hose barb	Coupling Half	Female Coupler
Connection Thread Size (inch)	na	Hose I.D. (inch)	3/8

California Residents: Prop-65 Warning

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
