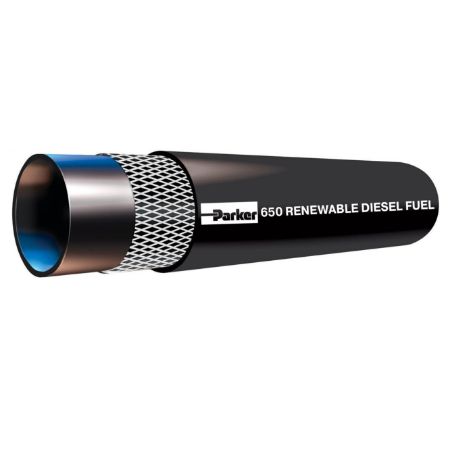

650 Renewable Diesel Fuel Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

The 650 Renewable Fuel Hose from the Hose Products Division of Parker Hannifin is a “one does all” fuel line hose. The 650 meets or exceeds the SAE J30R7 and meets or exceeds the performance of SAE J30R2 (T1, T2, and T3), R3, and R13 (T1 and T2) specifications. Making it easier for the customer to meet multiple variations of the fuel system requirements and specifications for the components of their equipment. The 650 Renewable Fuel Hose not only handles all the gasoline and diesel requirements but also is compatible with renewable biodiesels up to 100%. The hose is rated from -40°F to +257°F. Qualified with the HY Series (offered in steel and stainless steel, over B20 bio diesel fuel recommended to use stainless or nylon fittings) and J2044 fittings, which gives multiple options to meet the application’s requirements.

Features/Benefits

•Rated to SAE J30R7

•Meets or exceeds performance of SAE J30R2, T1, T2, & T3

•Meets or exceeds performance of SAE J30R3

•Meets or exceeds performance of SAE J30R13

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Division	Minimum Operating Temperature	Hose Inside Diameter	Minimum Bend Radius	Specifications Met	Maximum Operating Pressure	Application	Maximum Operating Temperature	Media	Weight	Cover Material	Hose Inner Tube Material	Hose Reinforcement Material	Hose Outside Diameter
650-10-RL	Quote Required	Quote Required	TBD		Hose Products Division	-40 °C	5/8 inch	127 mm	SAE J30R7	24.1 bar	Media Transfer	275 °F	Fuels	0.34 kg/ft	Black synthetic rubber	Black synthetic rubber	Multiple aramid plies	23.8 mm
650-12-RL	Quote Required	Quote Required	TBD		Hose Products Division	-40 °C	19.1 mm	180 mm	SAE J30R7	300 psi	Media Transfer	125 °C	Fuels	0.50 kg/ft	Black synthetic rubber	Black synthetic rubber	Multiple aramid plies	1.13 inch
650-3-RL	Quote Required	2397 In Stock	$2.27	FT	Hose Products Division	-40 °F	4.8 mm	32 mm	30R3	34.5 bar	Media Transfer	125 °C	Fuels	0.11 kg/ft	Black synthetic rubber	Black synthetic rubber	Multiple aramid plies	10.3 mm
650-4-RL	Quote Required	Quote Required	TBD		Hose Products Division	-40 °F	6.4 mm	1.50 inch	SAE J30R7	27.6 bar	Media Transfer	125 °C	Fuels	0.13 kg/ft	Black synthetic rubber	Black synthetic rubber	Multiple aramid plies	12.7 mm
650-5-RL	Quote Required	Quote Required	$2.72	FT	Hose Products Division	-40 °F	7.9 mm	2.00 inch	30R3	27.6 bar	Media Transfer	125 °C	Fuels	0.10 lb/ft	Black synthetic rubber	Black synthetic rubber	Multiple aramid plies	0.56 inch
650-6-RL	Quote Required	Quote Required	TBD		Hose Products Division	-40 °F	9.5 mm	2.50 inch	SAE J30R7	400 psi	Media Transfer	125 °C	Fuels	0.20 kg/ft	Black synthetic rubber	Black synthetic rubber	Multiple aramid plies	15.9 mm
650-8-RL	Quote Required	Quote Required	TBD		Hose Products Division	-40 °C	1/2 inch	4.00 inch	30R2 Type 1, 2, 3	2.76 MPa	Media Transfer	275 °F	Fuels	0.21 lb/ft	Black synthetic rubber	Black synthetic rubber	Multiple aramid plies	0.78 inch
