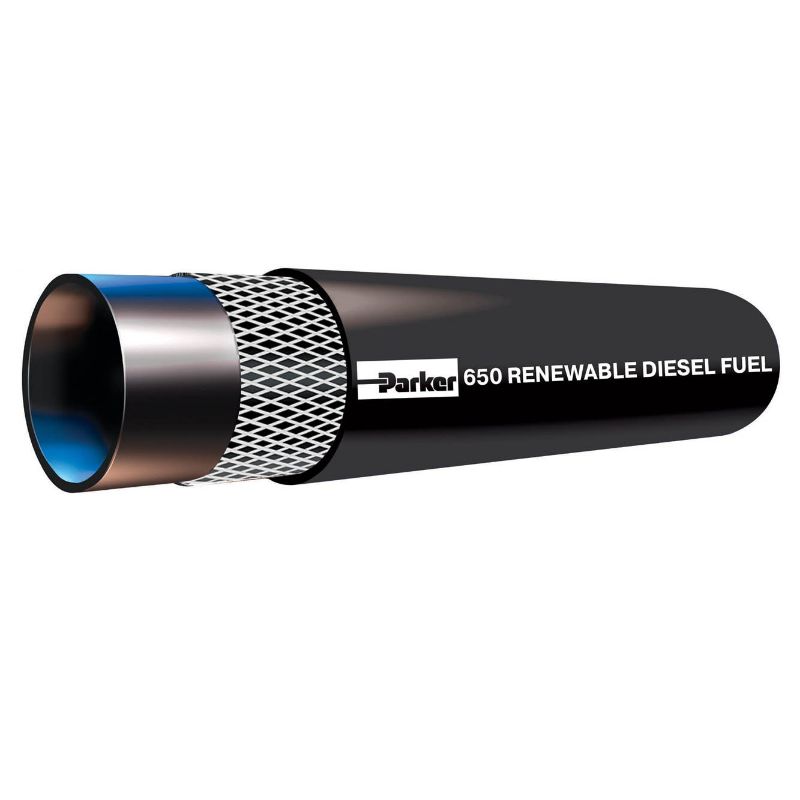

Parker 650-3-RL - 650 Renewable Diesel Fuel Hose

650 Renewable Diesel Fuel Hose not only handles all gasoline and diesel requirements, but it is also compatible with renewable biodiesels up to 100%. 650 is compatible with HY series fittings and available with J2044 connections.

Availability:	Quote Required
Partner Available:	2397 In Stock

Brand Parker

Part No. 650-3-RL

$2.27

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	125 °C
Minimum Bend Radius	32 mm	Hose Inside Diameter	4.8 mm
Application	Media Transfer	Specifications Met	30R3
Maximum Operating Pressure	34.5 bar	Media	Fuels
Weight	0.11 kg/ft	Cover Material	Black synthetic rubber
Hose Inner Tube Material	Black synthetic rubber	Hose Reinforcement Material	Multiple aramid plies
Hose Outside Diameter	10.3 mm
