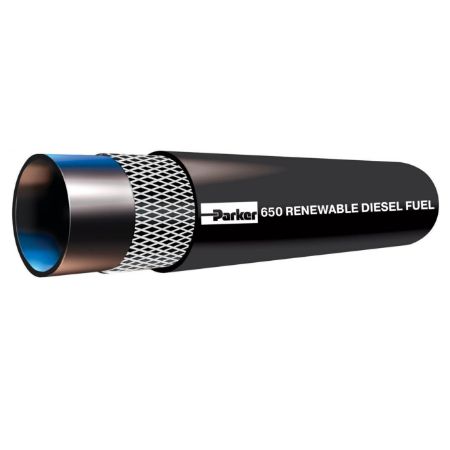

650 Renewable Diesel Fuel Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

The 650 Renewable Fuel Hose from the Hose Products Division of Parker Hannifin is a “one does all” fuel line hose. The 650 meets or exceeds the SAE J30R7 and meets or exceeds the performance of SAE J30R2 (T1, T2, and T3), R3, and R13 (T1 and T2) specifications. Making it easier for the customer to meet multiple variations of the fuel system requirements and specifications for the components of their equipment. The 650 Renewable Fuel Hose not only handles all the gasoline and diesel requirements but also is compatible with renewable biodiesels up to 100%. The hose is rated from -40°F to +257°F. Qualified with the HY Series (offered in steel and stainless steel, over B20 bio diesel fuel recommended to use stainless or nylon fittings) and J2044 fittings, which gives multiple options to meet the application’s requirements.

Features/Benefits

•Rated to SAE J30R7

•Meets or exceeds performance of SAE J30R2, T1, T2, & T3

•Meets or exceeds performance of SAE J30R3

•Meets or exceeds performance of SAE J30R13

View as Grid List

Sort by

Display per page

Action	Part No.	Availability	Partner Available	Price	UOM	Division	Minimum Operating Temperature	Maximum Operating Temperature	Minimum Bend Radius	Hose Inside Diameter	Application	Specifications Met	Maximum Operating Pressure	Media	Weight	Cover Material	Hose Inner Tube Material	Hose Reinforcement Material	Hose Outside Diameter
	650-3-RL	Quote Required	2439 In Stock	$2.38/foot	FT	Hose Products Division	-40 °F	125 °C	32 mm	4.8 mm	Media Transfer	30R3	34.5 bar	Fuels	0.11 kg/ft	Black synthetic rubber	Black synthetic rubber	Multiple aramid plies	10.3 mm
	650-5-RL	Quote Required	Quote Required	$2.85/foot	FT	Hose Products Division	-40 °F	125 °C	2.00 inch	7.9 mm	Media Transfer	30R3	27.6 bar	Fuels	0.10 lb/ft	Black synthetic rubber	Black synthetic rubber	Multiple aramid plies	0.56 inch
