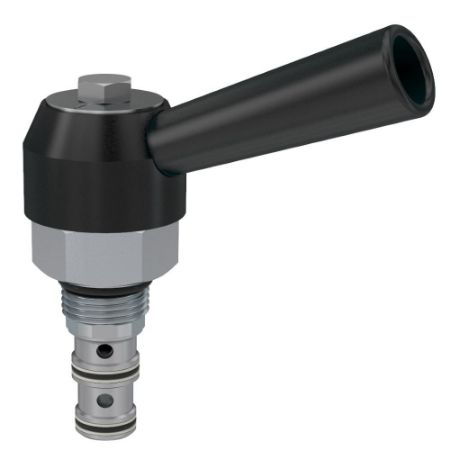

3 Way Rotary Type Manual Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 3-way manual rotary spool valves provide precise operator control for switching or diverter type applications with a knob or lever style actuator. These valves are capable of flows up to 23 lpm (6 gpm) and pressures as high as 240 bar (3500 psi). Parker’s 3-way manual rotary spool valves operate throughout a 90 degree rotation with a closed center condition at 45 degrees. These valves are available with detented positions and are ideal for single direction applications, such as uni-directional motors or single acting circuits on a variety of machinery within the construction, material handling, or industrial markets.
Markets:
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Mobile
Features/Benefits:
• Lever and knob options
• Detented versions available
• External parts zinc plated
Applications:
• Single acting circuits
• Pilot circuits
• Uni-directional motors
Read More...Markets:
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Mobile
Features/Benefits:
• Lever and knob options
• Detented versions available
• External parts zinc plated
Applications:
• Single acting circuits
• Pilot circuits
• Uni-directional motors
| Action | Part No. | Availability | Partner Available | Price | Maximum Tank Pressure | Function | Maximum Inlet Pressure Rating | Configuration | Rotation Angle | For Fluid Type | Cavity Size | Maximum Operating Temperature | Leak Rate | Operation Type | Maximum Flow Rate | Operating Temperature | Body Material | Installation Torque | Minimum Operating Temperature | Division | Detents | Flow Rate | Actuation Type | Maximum Operating Pressure | Seal Material | Filter Efficiency Rating | Valve Material | Maximum Kinematic Viscosity | Weight | Seal Material | Configuration | Detents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DM103FKD | 3 In Stock | Quote Required | $196.00/each | 500 psi | Spool Type | 3500 psi | Finger Knob | 90 ° | Mineral-based or synthetic hydraulic fluids | C10-3 | +121 °C | 164 @ 3500 PSI (240 BAR) cm3/min | Manual | 6 Gal/min | -30 to +250 °F | N/A | 16 lb-ft | -34 °C | Hydraulic Systems Division | 2 position detent | 6 Gal/min | Rotary | 240 bar | Nitrile | ISO 4406 18/16/13, SAE Class 4 | Stem, stainless steel. All other parts hardened steel. | 45-2000 SSU (6 to 420 cSt) | 0.3 lb | Nitrile | Finger Knob | 2 position detent | |
| DM103FKNV | Quote Required | $206.50/each | 500 psi | Spool Type | 3500 psi | Finger Knob | 45 ° | Mineral-based or synthetic hydraulic fluids | C10-3 | +204 °C | 164 @ 3500 PSI (240 BAR) cm3/min | Manual | 6 Gal/min | -26 to +204 °C | N/A | 22 Nm | -26 °C | Hydraulic Systems Division | 3 position detent | 6 Gal/min | Rotary | 240 bar | Fluorocarbon | ISO 4406 18/16/13, SAE Class 4 | Stem, stainless steel. All other parts hardened steel. | 45-2000 SSU (6 to 420 cSt) | 0.11 kg | Fluorocarbon | Finger Knob | 3 position detent | ||
| DM103LD | Quote Required | 6 In Stock | $235.86/each | 34.5 bar | Spool Type | 3500 psi | Lever | 90 ° | Mineral-based or synthetic hydraulic fluids | C10-3 | +250 °F | 164 @ 3500 PSI (240 BAR) cm3/min | Manual | 6 Gal/min | -30 to +250 °F | N/A | 22 Nm | -34 °C | Hydraulic Systems Division | 2 position detent | 6 Gal/min | Rotary | 240 bar | Nitrile | ISO 4406 18/16/13, SAE Class 4 | Stem, stainless steel. All other parts hardened steel. | 45-2000 SSU (6 to 420 cSt) | 0.11 kg | Nitrile | Lever | 2 position detent |
