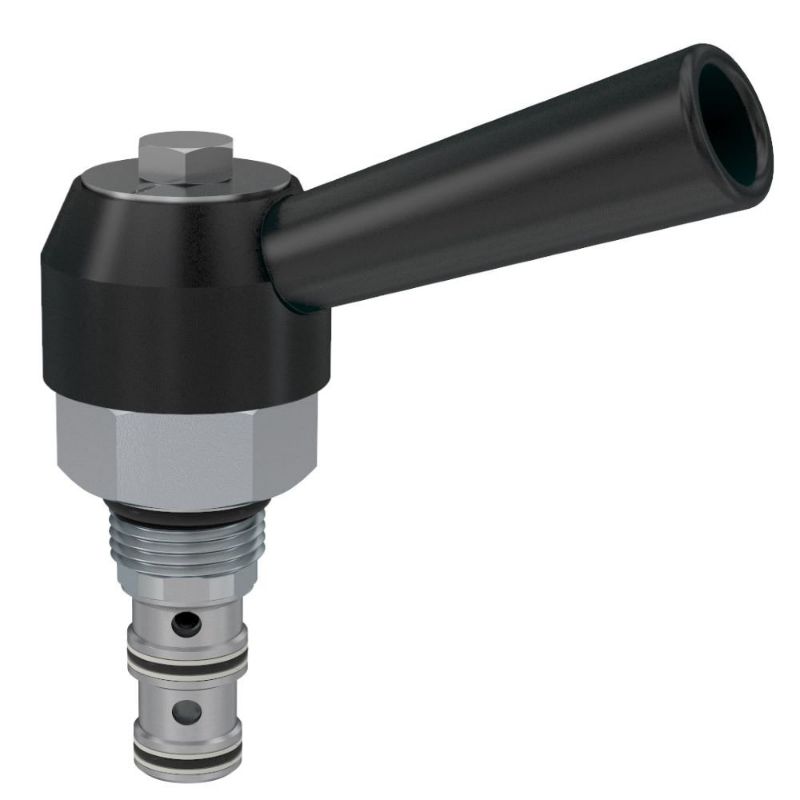

Parker DM103FKD - 3 Way Rotary Type Manual Valve

Name: Parker DM103FKD - 3 Way Rotary Type Manual Valve
SKU: DM103FKD
Price: 196.00 USD
Availability: InStock

REGIONAL - Parker’s manually operated 3-way, 2 or 3-position directional control spool valve is capable of flows up to 23 lpm (6 gpm) and pressures as high as 240 bar (3500 psi). Knob and lever actuators are available with detents.

AFP Availability:

3 In Stock

North Chesterfield, VA

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. DM103FKD

$196.00/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Tank Pressure	500 psi
Function	Spool Type	Maximum Inlet Pressure Rating	3500 psi
Configuration	Finger Knob	Rotation Angle	90 °
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Cavity Size	C10-3
Maximum Operating Temperature	+121 °C	Leak Rate	164 @ 3500 PSI (240 BAR) cm3/min
Operation Type	Manual	Maximum Flow Rate	6 Gal/min
Operating Temperature	-30 to +250 °F	Body Material	N/A
Installation Torque	16 lb-ft	Minimum Operating Temperature	-34 °C
Division	Hydraulic Systems Division	Detents	2 position detent
Flow Rate	6 Gal/min	Actuation Type	Rotary
Maximum Operating Pressure	240 bar	Seal Material	Nitrile
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Valve Material	Stem, stainless steel. All other parts hardened steel.
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.3 lb
Seal Material	Nitrile	Configuration	Finger Knob
Detents	2 position detent
