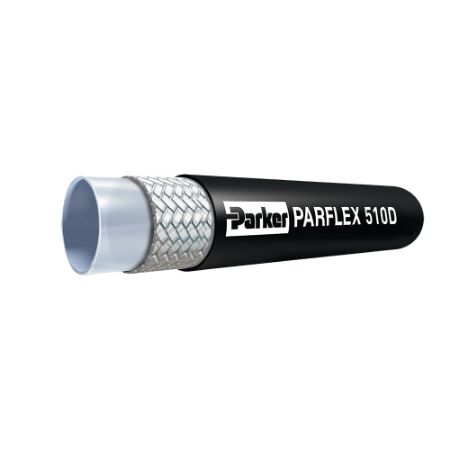

100R7 Hydraulic Hose - 510D
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 510D thermoplastic 100R7 hose stands apart from most of our other SAE 100R7 hydraulic hoses because some sizes use field attachable fittings, in addition to crimp fittings. This improved design allows for quicker installations and maintenance change outs. The 510D hoses features an improved force to flex and a matte cover for low coefficient of friction
Features/Benefits:
• Features low force to flex in sizes -3 through -8•Reduces noise in hydraulic systems
• Twin-line or multi-line bonded hose constructions available
•Formed hose assemblies available
• High density braid for maximum impulse life without loss of flexibility
• Designed to use with quick-connect field attachable fittings or crimp fittings in sizes -3, -4, -6 or -8
• Nylon core material allows for greater chemical compatibility
Applications:
• Medium pressure hydraulic service
• Turf equipment and grounds maintenance
• Utility trucks
• Aerial Lift
Technical Specifications:
• +/- 2% Change in length at maximum working pressure
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Features/Benefits:
• Features low force to flex in sizes -3 through -8•Reduces noise in hydraulic systems
• Twin-line or multi-line bonded hose constructions available
•Formed hose assemblies available
• High density braid for maximum impulse life without loss of flexibility
• Designed to use with quick-connect field attachable fittings or crimp fittings in sizes -3, -4, -6 or -8
• Nylon core material allows for greater chemical compatibility
Applications:
• Medium pressure hydraulic service
• Turf equipment and grounds maintenance
• Utility trucks
• Aerial Lift
Technical Specifications:
• +/- 2% Change in length at maximum working pressure
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | Part No. | Availability | Partner Available | Price | UOM | Minimum Operating Temperature | Division | Design Factor | Maximum Operating Temperature | Minimum Bend Radius | Application | Cover Material | Compatible Fitting | Hose Inner Tube Material | Hose Reinforcement Material | Size | Inside Diameter | Media | Specifications Met | Weight | Outside Diameter | Maximum Operating Pressure | Hose I.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 510D-10 | Quote Required | TBD | -40 °C | Parflex Division | 4:1 | 100 °C | 102 mm | Construction Equipment | Polyurethane | 56 Series | Polyamide (PA) | Fiber | -10 | 5/8 inch | Petroleum Hydraulic Fluids | DNV GL | 0.21 lb/ft | 24.9 mm | 15.8 MPa | 5/8 | |||
| 510D-12 | 194 In Stock | 1814 In Stock | $11.63 | FT | -40 °C | Parflex Division | 4:1 | 212 °F | 127 mm | Agriculture Equipment | Polyurethane | 56 Series | Polyamide (PA) | Fiber | -12 | 19 mm | Petroleum Hydraulic Fluids | ISO 3949, Type R7-1 | 0.25 lb/ft | 26.7 mm | 8.8 MPa | 3/4 | |
| 510D-16 | Quote Required | 150 In Stock | $18.60 | FT | -40 °C | Parflex Division | 4:1 | 212 °F | 8 inch | Construction Equipment | Polyurethane | 56 Series | Copolyester | Fiber | -16 | 25 mm | Petroleum Hydraulic Fluids | DNV GL | 0.27 lb/ft | 1.320 inch | 70 bar | 1 | |
| 510D-3 | 10 In Stock | 3132 In Stock | $3.42 | FT | -40 °F | Parflex Division | 4:1 | 212 °F | 3/4 inch | Aerial Lift | Polyurethane | 56 Series | Polyamide (PA) | Fiber | -3 | 5 mm | Petroleum Hydraulic Fluids | MSHA | 0.07 lb/ft | 0.403 inch | 224 bar | 3/16 | |
| 510D-4 | 1336 In Stock | 21714 In Stock | $3.62 | FT | -40 °F | Parflex Division | 4:1 | 212 °F | 1-1/2 inch | Hydraulics | Polyurethane | 51R Series | Polyamide (PA) | Fiber | -4 | 6.3 mm | Petroleum Hydraulic Fluids | MSHA | 0.06 lb/ft | 11.9 mm | 210 bar | 1/4 | |
| 510D-5 | Quote Required | 1037 In Stock | $4.71 | FT | -40 °C | Parflex Division | 4:1 | 100 °C | 44 mm | Forestry | Polyurethane | 56 Series | Polyamide (PA) | Fiber | -5 | 8 mm | Petroleum Hydraulic Fluids | ISO 3949, Type R7-1 | 0.11 lb/ft | 14.6 mm | 17.5 MPa | 5/16 | |
| 510D-6 | 711 In Stock | 12262 In Stock | $4.61 | FT | -40 °F | Parflex Division | 4:1 | 212 °F | 2 inch | Agriculture Equipment | Polyurethane | 56 Series | Polyamide (PA) | Fiber | -6 | 10 mm | Petroleum Hydraulic Fluids | SAE 100R7 | 0.10 lb/ft | 16.3 mm | 158 bar | 3/8 | |
| 510D-8 | 845 In Stock | 10985 In Stock | $6.03 | FT | -40 °C | Parflex Division | 4:1 | 212 °F | 3 inch | Manufacturing | Polyurethane | 56 Series | Polyamide (PA) | Fiber | -8 | 1/2 inch | Petroleum Hydraulic Fluids | SAE 100R7 | 0.22 lb/ft | 0.810 inch | 158 bar | 1/2 |
