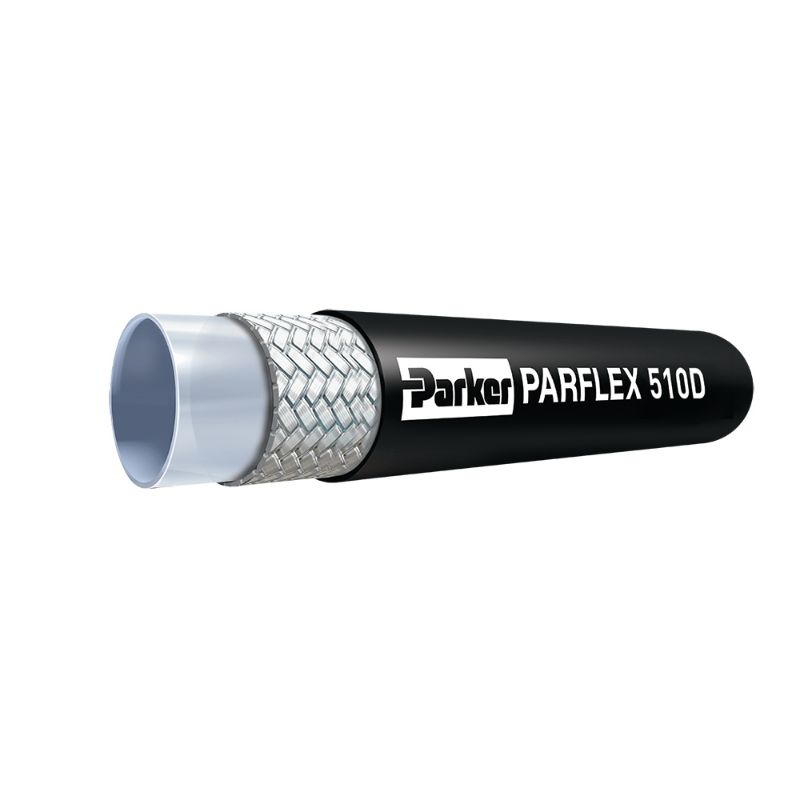

Parker 510D-12 - 100R7 Hydraulic Hose - 510D

Name: Parker 510D-12 - 100R7 Hydraulic Hose - 510D
SKU: 510D-12
Price: 11.98 USD
Availability: InStock

Parker's 510D hydraulic hose reduces noise in hydraulic systems. Quick connect fittings to speed up installation and it has a low for to flex for tighter routing.

AFP Availability:

179 In Stock

Summerville, SC	129
Greensboro, NC	40
Richmond, VA	8
Mooresville, NC	1

Partner Available:

2146 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 510D-12

$11.98/each

Qty:

Products specifications

Attribute name	Attribute value
Inside Diameter	19 mm	Outside Diameter	26.7 mm
Division	Parflex Division	Maximum Operating Temperature	212 °F
Size	-12	Compatible Fitting	56 Series
Media	Petroleum Hydraulic Fluids	Design Factor	4:1
Hose Inner Tube Material	Polyamide (PA)	Minimum Operating Temperature	-40 °C
Application	Agriculture Equipment	Hose Reinforcement Material	Fiber
Cover Material	Polyurethane	Specifications Met	ISO 3949, Type R7-1
Minimum Bend Radius	127 mm	Maximum Operating Pressure	8.8 MPa
Weight	0.25 lb/ft	Hose I.D. (inch)	3/4
