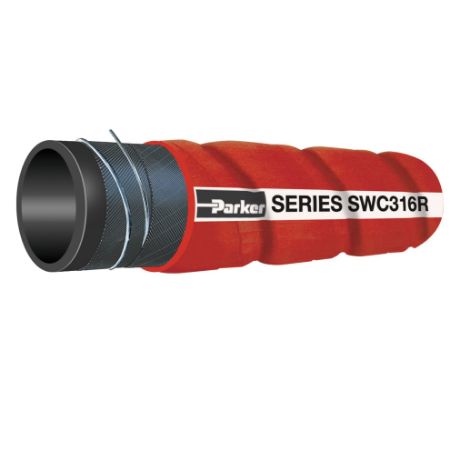

WILDCATTER® CORRUGATED OILFIELD PETROLEUM TRANSPORT SUCTION HOSE
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series Wildcatter Corrugated Oilfield Petroleum Transport Suction Hose provides excellent service across a wide variety of medium pressure, standard duty tank truck applications. The lightweight, corrugated construction provides crush resistance and kink resistance for unimpeded flow, additional flexibility for easy handling and resistance to abrasion and weathering for maximum performance.
The Wildcatter trade name indicates the product is designed and manufactured for premium service in oilfield applications. However, Wildcatter products may be used in other industries, markets and applications where the product meets the required performance criteria.
Markets:
• General Industrial
• Oilfield
• Oil & Gas
• Transportation
Features/Benefits:
• Tube: Black nitrile for fuel and oil resistance to 200°F.
• Reinforcement: Multiple textile plies for strength and durability, and a dual wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black or red nitrile for abrasion, heat, oil resistance and durability.
Applications:
• Biodiesel (to B100 in dedicated service)
• Brine
• Crude oil
• Diesel
• Ethanol
• Gasoline
• Mild chemicals
• Petroleum waste
• Sediments
• Sludge
• Slurries
• Water
• Oilfield equipment and service trucks
• Bulk depots and storage facilities
• Service trucks
• Transport tank trucks
Safety/Technical:
• Design Factor: 4:1
• Refer to CrimpSource® for current crimp specifications.
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
• Do not use for oil or fuel transfer service in or on open water.
| Action | Part No. | Availability | Partner Available | Price | UOM | Inside Diameter | Media | Maximum Operating Pressure | Vacuum Pressure Rating | Cover Structure | Hose Reinforcement Material | Hose Inner Tube Material | Maximum Operating Temperature | Outside Diameter | Cover Material | Weight | Division | Minimum Operating Temperature | Minimum Bend Radius | Nominal Hose Inside Diameter | Application | Size | Color | Hose I.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SWC316-1500 | Quote Required | TBD | 1-1/2 inch | Fuels (Diesel) - Check fuel type with our catalogue chart. | 1 MPa | 737 mm-Hg | Corrugated | Multiple Plies of Textile with Dual Wire Helix | Black | 82 °C | 2.060 inch | Nitrile | 1.18 kg/m | Hose Products Division | -40 °F | 10.2 mm | 40 mm | Oilfield | -24 | Black | 1-1/2 | |||
| SWC316-2000 | Quote Required | TBD | 2 inch | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | 150 psi | 737 mm-Hg | Corrugated | Multiple Plies of Textile with Dual Wire Helix | Nitrile | 82 °C | 65.1 mm | Nitrile | 0.95 lb/ft | Hose Products Division | -40 °F | 5 inch | 50 mm | Transportation | -32 | Black | 2 | |||
| SWC316-3000 | Quote Required | $20.76 | FT | 3 inch | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | 150 psi | 737 mm-Hg | Corrugated | Multiple Plies of Textile with Dual Wire Helix | Nitrile | 180 °F | 3.590 inch | Nitrile | 2.53 kg/m | Hose Products Division | -40 °C | 9 inch | 80 mm | Petroleum Transfer | -40 | Black | 3 | ||
| SWC316-4000 | 34 In Stock | 125 In Stock | $29.37 | FT | 4 inch | Fuels (Gasoline) - Check fuel type with our catalogue chart. | 1 MPa | 737 mm-Hg | Corrugated | Multiple Plies of Textile with Dual Wire Helix | Nitrile | 82 °C | 4.590 inch | Nitrile | 2.25 lb/ft | Hose Products Division | -40 °C | 12 inch | 100 mm | Transportation | -48 | Black | 4 | |
| SWC316-6000 | Quote Required | TBD | 6 | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | 125 | 29 | Corrugated | Multiple Plies of Textile with Dual Wire Helix | Black | 180 | 6.750 | Nitrile | 4.3 | Hose Products Division | -40 | 18 | 150 | Oilfield | -64 | Black | 6 | |||
| SWC316R-1500 | Quote Required | TBD | 1-1/2 | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | 150 | 29 | Corrugated | Multiple Plies of Textile with Dual Wire Helix | Black | 180 | 2.060 | Nitrile | 0.79 | Hose Products Division | -40 | 4 | 40 | Oilfield | -24 | Red | 1-1/2 | |||
| SWC316R-2000 | Quote Required | TBD | 2 inch | Fuels (Biodiesel (to B100 in dedicated service) | 1 MPa | 737 mm-Hg | Corrugated | Multiple Plies of Textile with Dual Wire Helix | Black | 82 °C | 2.560 inch | Nitrile | 1.42 kg/m | Hose Products Division | -40 °C | 12.7 mm | 50 mm | Oilfield | -32 | Red | 2 | |||
| SWC316R-3000 | Quote Required | TBD | 3 inch | Fuels (Diesel) - Check fuel type with our catalogue chart. | 1 MPa | 737 mm-Hg | Corrugated | Multiple Plies of Textile with Dual Wire Helix | Black | 82 °C | 91.3 mm | Nitrile | 2.53 kg/m | Hose Products Division | -40 °F | 9 inch | 80 mm | Oilfield | -40 | Red | 3 | |||
| SWC316R-4000 | Quote Required | TBD | 4 inch | Fuels (Diesel) - Check fuel type with our catalogue chart. | 1 MPa | 737 mm-Hg | Corrugated | Multiple Plies of Textile with Dual Wire Helix | Nitrile | 82 °C | 116.7 mm | Nitrile | 3.35 kg/m | Hose Products Division | -40 °C | 30.5 mm | 100 mm | Petroleum Transfer | -48 | Red | 4 | |||
| SWC316R-6000 | Quote Required | TBD | 6 | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | 125 | 29 | Corrugated | Multiple Plies of Textile with Dual Wire Helix | Black | 180 | 6.750 | Nitrile | 4.3 | Hose Products Division | -40 | 18 | 150 | Oilfield | -64 | Red | 6 |
