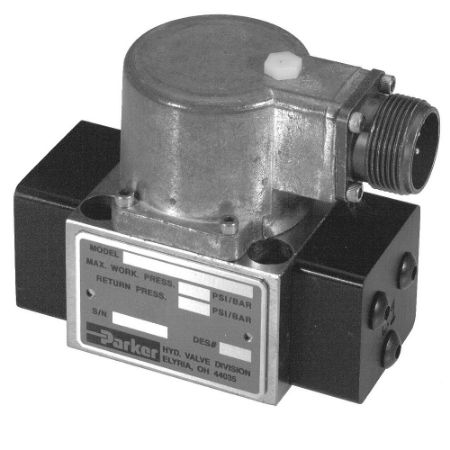

Two-Stage Torque Motor Servovalve – DY Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s DY series the unique rigid pin feedback design avoids ball glitch problems, which can occur in other types of servovalves. The valves are rated for 210 Bar (3000 PSI) standard, or can be built for 350 Bar (5000 PSI) service and the pressure ratings are the same for both the tool steel construction or the optional stainless steel spool and body.
Markets:
• Defense
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Power Generation
Features/Benefits:
• No ball glitch
• Lapped spool & body
• Survives high tank port pressures
• Tool steel, or stainless steel, spool & body
• Versatile 21.59 mm (0.850 in.) port circle, can mount to standard 19.81 mm (0.780 in.) and 23.62 mm (0.930 in.) port circle patterns.
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Defense
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Power Generation
Features/Benefits:
• No ball glitch
• Lapped spool & body
• Survives high tank port pressures
• Tool steel, or stainless steel, spool & body
• Versatile 21.59 mm (0.850 in.) port circle, can mount to standard 19.81 mm (0.780 in.) and 23.62 mm (0.930 in.) port circle patterns.
Applications:
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Pressure | Actuation Type | Minimum Operating Temperature | Additional Options | Body Material | Weight | Maximum Flow Rate | Seal Material | Division | Valve Type | Maximum Operating Temperature | Maximum Operating Pressure (psi) | Flow Rate (gpm) | Wiring | Resistance (Ohms) | Seal Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DY01ADCNA1 | Quote Required | TBD | 3000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | 1 | Nitrile | Hydraulic Valve Systems Division | Servovalve | +180 | 3000 | 1 | (+) signal A, C | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Nitrile | |||
| DY01ADCNA1.5 | Quote Required | TBD | 3000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | .5 | Nitrile | Hydraulic Valve Systems Division | Servovalve | +180 | 3000 | 1.5 | (+) signal A, C | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Nitrile | |||
| DY01ADCNA3 | Quote Required | TBD | 3000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | 3 | Nitrile | Hydraulic Valve Systems Division | Servovalve | +180 | 3000 | 3 | (+) signal A, C | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Nitrile | |||
| DY01ADCNB1 | Quote Required | TBD | 5000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | 1 | Nitrile | Hydraulic Valve Systems Division | Servovalve | +180 | 5000 | 1 | (+) signal A, C | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Nitrile | |||
| DY01ADCNB1.5 | Quote Required | TBD | 5000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | .5 | Nitrile | Hydraulic Valve Systems Division | Servovalve | +180 | 5000 | 1.5 | (+) signal A, C | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Nitrile | |||
| DY01ADCNB3 | Quote Required | TBD | 5000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | 3 | Nitrile | Hydraulic Valve Systems Division | Servovalve | +180 | 5000 | 3 | (+) signal A, C | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Nitrile | |||
| DY01ADCVA1 | Quote Required | $4,750.99 | EA | 3000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | 1 | Fluorocarbon | Hydraulic Valve Systems Division | Servovalve | +180 | 3000 | 1 | (+) signal A, C | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Fluorocarbon | ||
| DY01ADCVA1.5 | Quote Required | TBD | 3000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | .5 | Fluorocarbon | Hydraulic Valve Systems Division | Servovalve | +180 | 3000 | 1.5 | (+) signal A, C | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Fluorocarbon | |||
| DY01ADCVA3 | Quote Required | TBD | 3000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | 3 | Fluorocarbon | Hydraulic Valve Systems Division | Servovalve | +180 | 3000 | 3 | (+) signal A, C | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Fluorocarbon | |||
| DY01ADCVB1 | Quote Required | TBD | 5000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | 1 | Fluorocarbon | Hydraulic Valve Systems Division | Servovalve | +180 | 5000 | 1 | (+) signal A, C | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Fluorocarbon | |||
| DY01ADCVB1.5 | Quote Required | TBD | 5000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | .5 | Fluorocarbon | Hydraulic Valve Systems Division | Servovalve | +180 | 5000 | 1.5 | (+) signal A, C | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Fluorocarbon | |||
| DY01ADCVB3 | Quote Required | TBD | 5000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | 3 | Fluorocarbon | Hydraulic Valve Systems Division | Servovalve | +180 | 5000 | 3 | (+) signal A, C | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Fluorocarbon | |||
| DY01ADDNA1 | Quote Required | TBD | 3000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | 1 | Nitrile | Hydraulic Valve Systems Division | Servovalve | +180 | 3000 | 1 | Port C1; (+) signal B, D | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Nitrile | |||
| DY01ADDNA1.5 | Quote Required | TBD | 3000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | .5 | Nitrile | Hydraulic Valve Systems Division | Servovalve | +180 | 3000 | 1.5 | Port C1; (+) signal B, D | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Nitrile | |||
| DY01ADDNA3 | Quote Required | TBD | 3000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | 3 | Nitrile | Hydraulic Valve Systems Division | Servovalve | +180 | 3000 | 3 | Port C1; (+) signal B, D | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Nitrile | |||
| DY01ADDNB1 | Quote Required | TBD | 5000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | 1 | Nitrile | Hydraulic Valve Systems Division | Servovalve | +180 | 5000 | 1 | Port C1; (+) signal B, D | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Nitrile | |||
| DY01ADDNB1.5 | Quote Required | TBD | 5000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | .5 | Nitrile | Hydraulic Valve Systems Division | Servovalve | +180 | 5000 | 1.5 | Port C1; (+) signal B, D | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Nitrile | |||
| DY01ADDNB3 | Quote Required | TBD | 5000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | 3 | Nitrile | Hydraulic Valve Systems Division | Servovalve | +180 | 5000 | 3 | Port C1; (+) signal B, D | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Nitrile | |||
| DY01ADDVA1 | Quote Required | TBD | 3000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | 1 | Fluorocarbon | Hydraulic Valve Systems Division | Servovalve | +180 | 3000 | 1 | Port C1; (+) signal B, D | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Fluorocarbon | |||
| DY01ADDVA1.5 | Quote Required | TBD | 3000.0 | Hydraulic Pressure | +30 | Consult catalog for additional features | Steel | 2.1 | .5 | Fluorocarbon | Hydraulic Valve Systems Division | Servovalve | +180 | 3000 | 1.5 | Port C1; (+) signal B, D | 200 Ohms; 50 mA (Parallel); 25 mA (Series) | Fluorocarbon |
