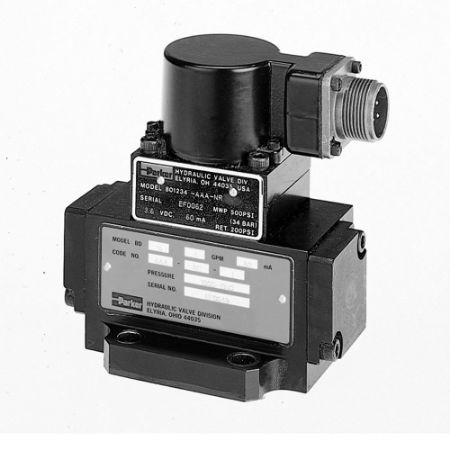

Two-Stage Torque Motor Servovalve – BD Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s BD series valves will provide accurate control of rotary and linear actuators when used in conjunction with Series BD90 and BD101 servo amplifiers or a motion controller.
Markets:
• Defense
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Power Generation
Features/Benefits:
• Rugged reliable trouble-free operation
• Reduced contaminant sensitivity
• Linear flow gain characteristics
• Intrinsically safe model available
• Explosion proof model available
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Defense
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Power Generation
Features/Benefits:
• Rugged reliable trouble-free operation
• Reduced contaminant sensitivity
• Linear flow gain characteristics
• Intrinsically safe model available
• Explosion proof model available
Applications:
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Flow Rate | Maximum Operating Temperature | Division | Options | Maximum Operating Pressure | Filter Efficiency Rating | Minimum Operating Temperature | Resistance | Actuation Type | Seal Material | Response Time | Body Material | Electrical Connection | Valve Type | Current (amps) | Operating Pressure | Flow Rate (gpm) | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BD15AAANB1 | Quote Required | $6,162.75 | EA | 1 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 3000 psi | ISO Code 17/15/12 | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 26.0 ms 10 to 90% | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 2600 - 3000 | 1 | S04 | ||
| BD15AAANB10 | Quote Required | TBD | 10 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 3000 psi | ISO Code 17/15/12 | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 26.0 ms 10 to 90% | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 2600 - 3000 | 10 | S04 | |||
| BD15AAANB15 | Quote Required | TBD | 15 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 3000 psi | SAE Class 3 or better | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 10 to 90%, 26 ms ms | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 2600 - 3000 | 15 | S04 | |||
| BD15AAANB2.5 | Quote Required | TBD | 2.5 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 3000 psi | SAE Class 3 or better | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 26.0 ms 10 to 90% | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 2600 - 3000 | 2.5 | S04 | |||
| BD15AAANB20 | Quote Required | TBD | 20 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 3000 psi | ISO Code 17/15/12 | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 10 to 90%, 26 ms ms | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 2600 - 3000 | 20 | S04 | |||
| BD15AAANB5 | Quote Required | TBD | 5 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 3000 psi | ISO Code 17/15/12 | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 10 to 90%, 26 ms ms | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 2600 - 3000 | 5 | S04 | |||
| BD15AAANC10 | Quote Required | $6,162.75 | EA | 10 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 2500 psi | ISO Code 17/15/12 | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 26.0 ms 10 to 90% | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 2000 - 2500 | 10 | S04 | ||
| BD15AAANC15 | Quote Required | TBD | 15 | 180 | Hydraulic Valve Systems Division | Standard Valve | 2500 | ISO Code 17/15/12 | 30 | 60 | Hydraulic Pressure | Nitrile | 10 to 90%, 26 ms | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 2000 - 2500 | 15 | S04 | |||
| BD15AAANC2.5 | Quote Required | $6,162.75 | EA | 2.5 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 2500 psi | SAE Class 3 or better | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 26.0 ms 10 to 90% | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 2000 - 2500 | 2.5 | S04 | ||
| BD15AAANC20 | Quote Required | TBD | 20 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 2500 psi | ISO Code 17/15/12 | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 26.0 ms 10 to 90% | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 2000 - 2500 | 20 | S04 | |||
| BD15AAANC5 | Quote Required | TBD | 5 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 2500 psi | ISO Code 17/15/12 | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 10 to 90%, 26 ms ms | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 2000 - 2500 | 5 | S04 | |||
| BD15AAAND1 | Quote Required | TBD | 1 | 180 | Hydraulic Valve Systems Division | Standard Valve | 1950 | ISO Code 17/15/12 | 30 | 60 | Hydraulic Pressure | Nitrile | 10 to 90%, 26 ms | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 1400 - 1950 | 1 | S04 | |||
| BD15AAAND10 | Quote Required | TBD | 10 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 1950 psi | ISO Code 17/15/12 | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 10 to 90%, 26 ms ms | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 1400 - 1950 | 10 | S04 | |||
| BD15AAAND15 | Quote Required | TBD | 15 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 1950 psi | SAE Class 3 or better | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 10 to 90%, 26 ms ms | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 1400 - 1950 | 15 | S04 | |||
| BD15AAAND2.5 | Quote Required | TBD | 2.5 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 1950 psi | SAE Class 3 or better | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 26.0 ms 10 to 90% | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 1400 - 1950 | 2.5 | S04 | |||
| BD15AAAND20 | Quote Required | $6,162.75 | EA | 20 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 1950 psi | SAE Class 3 or better | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 26.0 ms 10 to 90% | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 1400 - 1950 | 20 | S04 | ||
| BD15AAAND5 | Quote Required | TBD | 5 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 1950 psi | ISO Code 17/15/12 | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 10 to 90%, 26 ms ms | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 1400 - 1950 | 5 | S04 | |||
| BD15AAANE1 | Quote Required | TBD | 1 | 180 | Hydraulic Valve Systems Division | Standard Valve | 1350 | ISO Code 17/15/12 | 30 | 60 | Hydraulic Pressure | Nitrile | 10 to 90%, 26 ms | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 1000 - 1350 | 1 | S04 | |||
| BD15AAANE10 | Quote Required | TBD | 10 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 1350 psi | SAE Class 3 or better | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 26.0 ms 10 to 90% | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 1000 - 1350 | 10 | S04 | |||
| BD15AAANE15 | Quote Required | TBD | 15 Gal/min | 180 °F | Hydraulic Valve Systems Division | Standard Valve | 1350 psi | SAE Class 3 or better | 30 °F | 60 Ω | Hydraulic Pressure | Nitrile | 26.0 ms 10 to 90% | Aluminum | C2B (Standard) | Servo Valve | 60 (Standard) | 1000 - 1350 | 15 | S04 |
