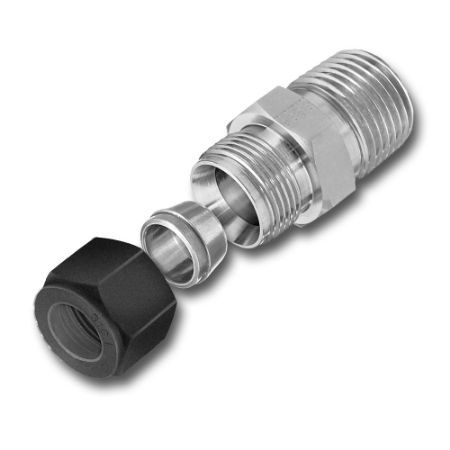

Tube Fitting,Single Ferrule Compression Fitting - CPI™ Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker CPI™ single ferrule compression tube fittings are designed as leak free connections for process, power, and instrumentation applications. These tube fittings utilize a single ferrule for easy make-up and excellent performance in vibration applications. The “spring loaded” effect of the single ferrule creates a constant tension between the fitting body and fitting nut.
CPI™ tube fitting are manufactured from heat code traceable 316 stainless steel. Other corrosion resistant alloys include 6Mo and Alloy C-276 (also known as Hastelloy C®). Straight fittings are machined from cold finished bar stock, while shaped bodies are machined from close grain forgings.
The fittings are available for imperial pipe sizes from 1/16” through to 2” O.D., and for metric sizes from 2 mm through to 25 mm O.D. These gaugeable tube fittings are manufactured to the highest industry quality standards.
Markets:
• Chemical
• Petro-Chemical
• Power
• Nuclear
• Oil and Gas
• Pulp and Paper
Features/Benefits:
• Single Ferrule for easy makeup
• Molybdenium Disulfide coated nuts for low torque make-up
• Parker Suparcase™ ferrule for superior corrosion resistant
• Hardened ferrules provide optimum performance
Applications:
• Instrument Air Lines
• Heat Trace systems
• Process Lines
| Action | Part No. | Availability | Partner Available | Price | UOM | Connection Size | Maximum Operating Pressure | Tube Outside Diameter | Connection Type | Configuration | Division | Assembly | Materials of Construction | Maximum Operating Temperature | Application | Minimum Operating Temperature | Materials of Construction | Connection 2 Size | Connection 1 Size | Shape | Configuration | Product Style | Product Style | Industry Application | Material | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-10 HBZ-SS | Quote Required | $61.54/each | EA | 5/8 inch | 10000 psi | 25 mm | Single Ferrule | Tube to Tube (Union) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 605 °C | Chemical Process Control Systems | -425 °F | Stainless Steel AISI 316 | 5/8" | 5/8" | Union | Tube to Tube Union | |||||||
| 10-10-10 JBZ-SS | Quote Required | $101.78/each | EA | 5/8 inch | 10000 psi | 2 inch | Single Ferrule | Tube to Tube (Union) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 605 °C | Pulp and Paper Process Control Systems | -425 °F | Stainless Steel AISI 316 | 5/8" | 5/8" | Union Tee | Tube to Tube Union | |||||||
| 12 PNBZ-SS | Quote Required | $37.20/each | EA | Instrumentation Products Division | Stainless Steel AISI 316 | Stainless Steel AISI 316 | 3/4" | Components | Components | |||||||||||||||||
| 12 TZ-SS | Quote Required | 86 In Stock | $13.25/each | EA | Instrumentation Products Division | Stainless Steel AISI 316 | Stainless Steel AISI 316 | 3/4" | Components | Components | ||||||||||||||||
| 12-12 CBZ-B | Quote Required | 11 In Stock | $36.94/each | EA | Tube to Pipe (Male Pipe) | Instrumentation Products Division | Brass | Brass | 3/4" | 3/4" | Elbow - Male | Tube to Male Pipe | ||||||||||||||
| 12-12 CBZ-SS | Quote Required | 8 In Stock | $71.37/each | EA | 3/4 inch | 689.5 bar | 25 mm | Single Ferrule | Tube to Pipe (Male Pipe) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 1200 °F | Pulp and Paper Process Control Systems | -425 °F | Stainless Steel AISI 316 | 3/4" | 3/4" | Elbow - Male | Tube to Male Pipe | ||||||
| 12-12 EBZ-SS | Quote Required | 2 Limited Stock | $119.00/each | EA | 3/4 inch | 689.5 bar | 25 mm | Single Ferrule | Tube to Tube (Union) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 605 °C | Chemical Process Control Systems | -255 °C | Stainless Steel AISI 316 | 3/4" | 3/4" | Union Elbow | Tube to Tube Union | ||||||
| 12-12 FBZ-SS | Quote Required | 1 Limited Stock | $48.48/each | EA | 3/4 inch | 10000 psi | 2 inch | Single Ferrule | Tube to Pipe (Male Pipe) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 1200 °F | Chemical Process Control Systems | -425 °F | Stainless Steel AISI 316 | 3/4" | 3/4" | Union | Tube to Male Pipe | NPT Male Connector | |||||
| 12-12 GBZ-SS | Quote Required | 4 In Stock | $62.36/each | EA | 3/4 inch | 10000 psi | 2 inch | Single Ferrule | Tube to Pipe (Female Pipe) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 605 °C | Chemical Process Control Systems | -425 °F | Stainless Steel AISI 316 | 3/4" | 3/4" | Union Reducer | Tube to Female Pipe | NPT Female Connector | |||||
| 12-12 HBZ-SS | Quote Required | 2 Limited Stock | $85.04/each | EA | 3/4 inch | 10000 psi | 2 inch | Single Ferrule | Tube to Tube (Union) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 605 °C | Pulp and Paper Process Control Systems | -255 °C | Stainless Steel AISI 316 | 3/4" | 3/4" | Union | Tube to Tube Union | ||||||
| 12-12-12 JBZ-SS | Quote Required | 3 In Stock | $130.93/each | EA | 3/4 inch | 10000 psi | 25 mm | Single Ferrule | Tube to Tube (Union) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 605 °C | Pulp and Paper Process Control Systems | -425 °F | Stainless Steel AISI 316 | 3/4" | 3/4" | Union Tee | Tube to Tube Union | ||||||
| 12-8 FBZ-SS | Quote Required | $47.31/each | EA | 1/2 inch | 10000 psi | 25 mm | Single Ferrule | Tube to Pipe (Male Pipe) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 605 °C | Oil & Gas Control Systems | -425 °F | Stainless Steel AISI 316 | 1/2" | 3/4" | Union | Tube to Male Pipe | NPT Male Connector | Chemical Process Control Systems | Oil and Gas Control Systems | Refining Process Control Systems | Pulp and Paper Process Control Systems | |||||
| 14-12 GBZ-SS | Quote Required | $118.86/each | EA | 3/4 inch | 10000 psi | 2 inch | Single Ferrule | Tube to Pipe (Female Pipe) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 605 °C | Oil & Gas Control Systems | -255 °C | Stainless Steel AISI 316 | 3/4" | 7/8" | Union Reducer | Tube to Female Pipe | NPT Female Connector | ||||||
| 16-12 FBZ-SS | Quote Required | $93.23/each | EA | 3/4 inch | 689.5 bar | 25 mm | Single Ferrule | Tube to Pipe (Male Pipe) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 1200 °F | Refining Process Control Systems | -425 °F | Stainless Steel AISI 316 | 3/4" | 1" | Union | Tube to Male Pipe | NPT Male Connector | ||||||
| 16-16 EBZ-SS | Quote Required | 2 Limited Stock | $233.16/each | EA | 1 inch | 689.5 bar | 2 inch | Single Ferrule | Tube to Tube (Union) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 1200 °F | Chemical Process Control Systems | -255 °C | Stainless Steel AISI 316 | 1" | 1" | Union Elbow | Tube to Tube Union | ||||||
| 16-16 GBZ-SS | Quote Required | $137.29/each | EA | 1 inch | 689.5 bar | 2 inch | Single Ferrule | Tube to Pipe (Female Pipe) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 605 °C | Chemical Process Control Systems | -425 °F | Stainless Steel AISI 316 | 1" | 1" | Union Reducer | Tube to Female Pipe | NPT Female Connector | ||||||
| 16-16 HBZ-SS | Quote Required | 1 Limited Stock | $148.14/each | EA | 1 inch | 689.5 bar | 2 inch | Single Ferrule | Tube to Tube (Union) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 1200 °F | Oil & Gas Control Systems | -255 °C | Stainless Steel AISI 316 | 1" | 1" | Union | Tube to Tube Union | ||||||
| 2 BZ-SS | 4 In Stock | 19 In Stock | $4.76/each | EA | Instrumentation Products Division | Stainless Steel AISI 316 | Stainless Steel AISI 316 | 1/8" | Tube Nut | Components | Components | 316 Stainless Steel | Components | |||||||||||||
| 20-20 EBZ-SS | Quote Required | $294.29/each | EA | 1-1/4 inch | 10000 psi | 25 mm | Single Ferrule | Tube to Tube (Union) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 1200 °F | Oil & Gas Control Systems | -425 °F | Stainless Steel AISI 316 | 1-1/4" | 1-1/4" | Union Elbow | Tube to Tube Union | 316 Stainless Steel | Tube to Tube Union | |||||
| 2-2 HBZ-SS | Quote Required | $22.63/each | EA | 1/8 inch | 10000 psi | 2 inch | Single Ferrule | Tube to Tube (Union) | Instrumentation Products Division | - | Stainless Steel AISI 316 | 605 °C | Oil & Gas Control Systems | -255 °C | Stainless Steel AISI 316 | 1/8" | 1/8" | Union | Tube to Tube Union | 316 Stainless Steel | Tube to Tube Union |
