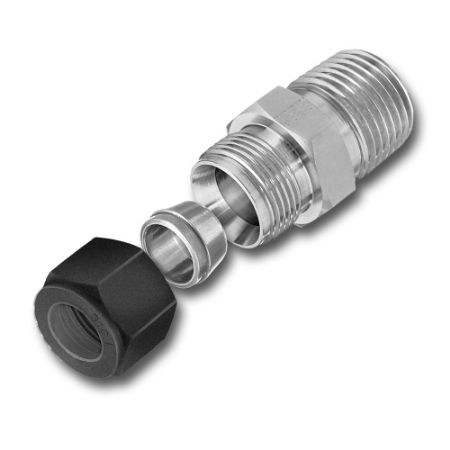

Tube Fitting,Single Ferrule Compression Fitting - CPI™ Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker CPI™ single ferrule compression tube fittings are designed as leak free connections for process, power, and instrumentation applications. These tube fittings utilize a single ferrule for easy make-up and excellent performance in vibration applications. The “spring loaded” effect of the single ferrule creates a constant tension between the fitting body and fitting nut.
CPI™ tube fitting are manufactured from heat code traceable 316 stainless steel. Other corrosion resistant alloys include 6Mo and Alloy C-276 (also known as Hastelloy C®). Straight fittings are machined from cold finished bar stock, while shaped bodies are machined from close grain forgings.
The fittings are available for imperial pipe sizes from 1/16” through to 2” O.D., and for metric sizes from 2 mm through to 25 mm O.D. These gaugeable tube fittings are manufactured to the highest industry quality standards.
Markets:
• Chemical
• Petro-Chemical
• Power
• Nuclear
• Oil and Gas
• Pulp and Paper
Features/Benefits:
• Single Ferrule for easy makeup
• Molybdenium Disulfide coated nuts for low torque make-up
• Parker Suparcase™ ferrule for superior corrosion resistant
• Hardened ferrules provide optimum performance
Applications:
• Instrument Air Lines
• Heat Trace systems
• Process Lines
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Pressure | Materials of Construction | Tube Outside Diameter | Division | Application | Maximum Operating Temperature | Minimum Operating Temperature | Assembly | Configuration | Connection Type | Connection Size | Materials of Construction | Connection 2 Size | Connection 1 Size | Shape | Configuration | Product Style | Product Style | Industry Application |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-10 HBZ-SS | Quote Required | $61.54/each | EA | 10000 psi | Stainless Steel AISI 316 | 25 mm | Instrumentation Products Division | Chemical Process Control Systems | 605 °C | -425 °F | - | Tube to Tube (Union) | Single Ferrule | 5/8 inch | Stainless Steel AISI 316 | 5/8" | 5/8" | Union | Tube to Tube Union | |||||
| 10-10-10 JBZ-SS | Quote Required | $101.78/each | EA | 10000 psi | Stainless Steel AISI 316 | 2 inch | Instrumentation Products Division | Pulp and Paper Process Control Systems | 605 °C | -425 °F | - | Tube to Tube (Union) | Single Ferrule | 5/8 inch | Stainless Steel AISI 316 | 5/8" | 5/8" | Union Tee | Tube to Tube Union | |||||
| 12 PNBZ-SS | Quote Required | $37.20/each | EA | Stainless Steel AISI 316 | Instrumentation Products Division | Stainless Steel AISI 316 | 3/4" | Components | Components | |||||||||||||||
| 12 TZ-SS | Quote Required | 86 In Stock | $11.29/each | EA | Stainless Steel AISI 316 | Instrumentation Products Division | Stainless Steel AISI 316 | 3/4" | Components | Components | ||||||||||||||
| 12-12 CBZ-B | Quote Required | 11 In Stock | TBD | EA | Brass | Instrumentation Products Division | Tube to Pipe (Male Pipe) | Brass | 3/4" | 3/4" | Elbow - Male | Tube to Male Pipe | ||||||||||||
| 12-12 CBZ-SS | Quote Required | 8 In Stock | $71.37/each | EA | 689.5 bar | Stainless Steel AISI 316 | 25 mm | Instrumentation Products Division | Pulp and Paper Process Control Systems | 1200 °F | -425 °F | - | Tube to Pipe (Male Pipe) | Single Ferrule | 3/4 inch | Stainless Steel AISI 316 | 3/4" | 3/4" | Elbow - Male | Tube to Male Pipe | ||||
| 12-12 EBZ-SS | Quote Required | 1 Limited Stock | $110.81/each | EA | 689.5 bar | Stainless Steel AISI 316 | 25 mm | Instrumentation Products Division | Chemical Process Control Systems | 605 °C | -255 °C | - | Tube to Tube (Union) | Single Ferrule | 3/4 inch | Stainless Steel AISI 316 | 3/4" | 3/4" | Union Elbow | Tube to Tube Union | ||||
| 12-12 FBZ-B | Quote Required | TBD | EA | Brass | Instrumentation Products Division | Tube to Pipe (Male Pipe) | Brass | 3/4" | 3/4" | Union | Tube to Male Pipe | NPT Male Connector | ||||||||||||
| 12-12 FBZ-SS | Quote Required | 1 Limited Stock | $48.48/each | EA | 10000 psi | Stainless Steel AISI 316 | 2 inch | Instrumentation Products Division | Chemical Process Control Systems | 1200 °F | -425 °F | - | Tube to Pipe (Male Pipe) | Single Ferrule | 3/4 inch | Stainless Steel AISI 316 | 3/4" | 3/4" | Union | Tube to Male Pipe | NPT Male Connector | |||
| 12-12 GBZ-SS | Quote Required | 4 In Stock | $62.36/each | EA | 10000 psi | Stainless Steel AISI 316 | 2 inch | Instrumentation Products Division | Chemical Process Control Systems | 605 °C | -425 °F | - | Tube to Pipe (Female Pipe) | Single Ferrule | 3/4 inch | Stainless Steel AISI 316 | 3/4" | 3/4" | Union Reducer | Tube to Female Pipe | NPT Female Connector | |||
| 12-12 HBZ-SS | Quote Required | 2 Limited Stock | $74.14/each | EA | 10000 psi | Stainless Steel AISI 316 | 2 inch | Instrumentation Products Division | Pulp and Paper Process Control Systems | 605 °C | -255 °C | - | Tube to Tube (Union) | Single Ferrule | 3/4 inch | Stainless Steel AISI 316 | 3/4" | 3/4" | Union | Tube to Tube Union | ||||
| 12-12-12 JBZ-SS | Quote Required | 3 In Stock | $130.93/each | EA | 10000 psi | Stainless Steel AISI 316 | 25 mm | Instrumentation Products Division | Pulp and Paper Process Control Systems | 605 °C | -425 °F | - | Tube to Tube (Union) | Single Ferrule | 3/4 inch | Stainless Steel AISI 316 | 3/4" | 3/4" | Union Tee | Tube to Tube Union | ||||
| 12-8 FBZ-SS | Quote Required | $47.31/each | EA | 10000 psi | Stainless Steel AISI 316 | 25 mm | Instrumentation Products Division | Oil & Gas Control Systems | 605 °C | -425 °F | - | Tube to Pipe (Male Pipe) | Single Ferrule | 1/2 inch | Stainless Steel AISI 316 | 1/2" | 3/4" | Union | Tube to Male Pipe | NPT Male Connector | Chemical Process Control Systems | Oil and Gas Control Systems | Refining Process Control Systems | Pulp and Paper Process Control Systems | |||
| 14-12 GBZ-SS | Quote Required | $118.86/each | EA | 10000 psi | Stainless Steel AISI 316 | 2 inch | Instrumentation Products Division | Oil & Gas Control Systems | 605 °C | -255 °C | - | Tube to Pipe (Female Pipe) | Single Ferrule | 3/4 inch | Stainless Steel AISI 316 | 3/4" | 7/8" | Union Reducer | Tube to Female Pipe | NPT Female Connector | ||||
| 16-12 CBZ-S | Quote Required | TBD | EA | 10000 | Steel | 25 | Instrumentation Products Division | Chemical Process Control Systems | 605 | -255 | - | Tube to Pipe (Male Pipe) | Single Ferrule | 3/4 | Steel | 3/4" | 1" | Elbow - Male | Tube to Male Pipe | |||||
| 16-12 FBZ-SS | Quote Required | $93.23/each | EA | 689.5 bar | Stainless Steel AISI 316 | 25 mm | Instrumentation Products Division | Refining Process Control Systems | 1200 °F | -425 °F | - | Tube to Pipe (Male Pipe) | Single Ferrule | 3/4 inch | Stainless Steel AISI 316 | 3/4" | 1" | Union | Tube to Male Pipe | NPT Male Connector | ||||
| 16-16 EBZ-SS | Quote Required | 2 Limited Stock | $205.81/each | EA | 689.5 bar | Stainless Steel AISI 316 | 2 inch | Instrumentation Products Division | Chemical Process Control Systems | 1200 °F | -255 °C | - | Tube to Tube (Union) | Single Ferrule | 1 inch | Stainless Steel AISI 316 | 1" | 1" | Union Elbow | Tube to Tube Union | ||||
| 16-16 GBZ-SS | Quote Required | $137.29/each | EA | 689.5 bar | Stainless Steel AISI 316 | 2 inch | Instrumentation Products Division | Chemical Process Control Systems | 605 °C | -425 °F | - | Tube to Pipe (Female Pipe) | Single Ferrule | 1 inch | Stainless Steel AISI 316 | 1" | 1" | Union Reducer | Tube to Female Pipe | NPT Female Connector | ||||
| 16-16 HBZ-S | Quote Required | TBD | EA | 10000 psi | Steel | 25 mm | Instrumentation Products Division | Refining Process Control Systems | 1200 °F | -255 °C | - | Tube to Tube (Union) | Single Ferrule | 1 inch | Steel | 1" | 1" | Union | Tube to Tube Union | |||||
| 16-16 HBZ-SS | Quote Required | 1 Limited Stock | $129.15/each | EA | 689.5 bar | Stainless Steel AISI 316 | 2 inch | Instrumentation Products Division | Oil & Gas Control Systems | 1200 °F | -255 °C | - | Tube to Tube (Union) | Single Ferrule | 1 inch | Stainless Steel AISI 316 | 1" | 1" | Union | Tube to Tube Union |
