Truck Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

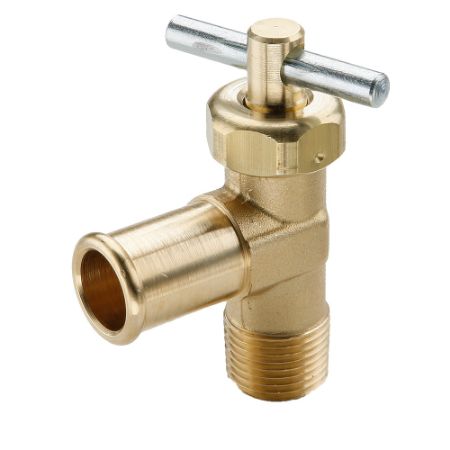

Parker's truck valves are a robust, all brass construction with metal-to-metal seats for high heat/fluid compatibility. Fine thread screw down to afford flow control ability and a positive seal. Truck valve connections include flare, hose, tube and pipe. Round and pin handle are available.
Markets:
• Heavy duty truck
• Trailer
• Mobile
Features/Benefits:
• Can be “throttled”
• Lower pressure ratings
• More economical
• Unique configurations
Applications:
• Water lines
• Oil lines
• Coolant lines
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Body Material | Maximum Operating Pressure | Minimum Operating Temperature | Maximum Operating Temperature | Dimensional Weight | Stem Material | Connection 1 Tube O.D. (inch) | Connection 1 Thread Size (inch) | Connection 2 Thread Size (inch) | Connection 2 Style | Connection 1 Style | Connection 1 Hose I.D. (inch) | Shape | Style | Handle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SV404P-10-8 | Quote Required | 37 In Stock | $92.62/each | EA | Fluid System Connectors Division | Brass | 150 psi | -30 °F | 121 °C | 0.5518884892086331 lb | Brass | na | na | 1/2 | Male Pipe | Hose Barb | 5/8 | Right Angle | Hose to Pipe | Round | |
| SV404P-12-6 | Quote Required | 4 In Stock | $90.38/each | EA | Fluid System Connectors Division | Brass | 150 psi | -30 °F | 121 °C | 0.5518884892086331 lb | Brass | na | na | 3/8 | Male Pipe | Hose Barb | 3/4 | Right Angle | Hose to Pipe | Round | |
| SV404P-12-8 | 6 In Stock | 5 In Stock | $88.26/each | EA | Fluid System Connectors Division | Brass | 150 psi | -34 °C | 121 °C | 0.5518884892086331 lb | Brass | na | na | 1/2 | Male Pipe | Hose Barb | 3/4 | Right Angle | Hose to Pipe | Round | |
| V404P-10-6 | Quote Required | 313 In Stock | $48.18/each | EA | Fluid System Connectors Division | Brass | 150 psi | -34 °C | 121 °C | 0.5518884892086331 lb | Brass | na | na | 3/8 | Male Pipe | Hose Barb | 5/8 | Right Angle | Hose to Pipe | Round | |
| V404P-6-6 | Quote Required | 81 In Stock | $42.59/each | EA | Fluid System Connectors Division | Brass | 150 psi | -34 °C | 121 °C | 0.27594424460431655 lb | Brass | na | na | 3/8 | Male Pipe | Hose Barb | 3/8 | Right Angle | Hose to Pipe | Round | |
| V404PH-10-6 | 3 In Stock | 24 In Stock | $33.32/each | EA | Fluid System Connectors Division | Brass | 150 psi | -30 °F | 121 °C | 0.5518884892086331 lb | Brass | na | na | 3/8 | Male Pipe | Hose Barb | 5/8 | Right Angle | Hose to Pipe | Pin | |
| V405P-6-6 | Quote Required | 82 In Stock | $48.06/each | EA | Fluid System Connectors Division | Brass | 10 bar | -34 °C | 121 °C | 0.5518884892086331 lb | Brass | na | 3/8 | 3/8 | Male Pipe | Female Pipe | na | Right Angle | Female Pipe to Male Pipe | Round | |
| V405P-6-8 | Quote Required | 5 In Stock | $55.55/each | EA | Fluid System Connectors Division | Brass | 10 bar | -34 °C | 121 °C | 0.5518884892086331 lb | Brass | na | 3/8 | 1/2 | Male Pipe | Female Pipe | na | Right Angle | Female Pipe to Male Pipe | Round | |
| V405P-8-8 | Quote Required | 53 In Stock | $63.66/each | EA | Fluid System Connectors Division | Brass | 150 psi | -30 °F | 250 °F | 0.5518884892086331 lb | Brass | na | 1/2 | 1/2 | Male Pipe | Female Pipe | na | Right Angle | Female Pipe to Male Pipe | Round | |
| V408NTA-8-8 | Quote Required | TBD | Fluid System Connectors Division | Brass | 150 psi | -34 °C | 121 °C | Brass | 1/2 | na | 1/2 | Male Pipe | Female Pipe | na | Right Angle | Tube to Pipe | Round | ||||
| V409F-10-8 | Quote Required | 1 Limited Stock | $83.54/each | EA | Fluid System Connectors Division | Brass | 10 bar | -30 °F | 250 °F | 0.5518884892086331 lb | Brass | 5/8 | na | 1/2 | Male Pipe | Male Flare | na | Right Angle | Flare to Pipe | Round | |
| V409F-12-8 | Quote Required | $94.09/each | EA | Fluid System Connectors Division | Brass | 150 psi | -34 °C | 250 °F | 0.5518884892086331 lb | Brass | 3/4 | na | 1/2 | Male Pipe | Male Flare | na | Right Angle | Flare to Pipe | Round | ||
| V409F-8-6 | Quote Required | TBD | Fluid System Connectors Division | Brass | 150 psi | -34 °C | 121 °C | Brass | 1/2 | na | 3/8 | Male Pipe | Male Flare | na | Right Angle | Flare to Pipe | Round | ||||
| V409F-8-8 | Quote Required | $81.87/each | EA | Fluid System Connectors Division | Brass | 10 bar | -30 °F | 250 °F | 0.5518884892086331 lb | Brass | 1/2 | na | 1/2 | Male Pipe | Male Flare | na | Right Angle | Flare to Pipe | Round | ||
| V410NTA-8-8 | Quote Required | TBD | Fluid System Connectors Division | Brass | 10 bar | -30 °F | 250 °F | Brass | 1/2 | na | 1/2 | Male Pipe | Compression | na | Right Angle | Tube to Pipe | Round | ||||
| V412F-10-8 | Quote Required | TBD | Fluid System Connectors Division | Brass | 150 psi | -34 °C | 250 °F | 0.5518884892086331 lb | Brass | 5/8 | na | 1/2 | Male Pipe | Male Flare | na | Right Angle | Tube to Pipe | Round |
