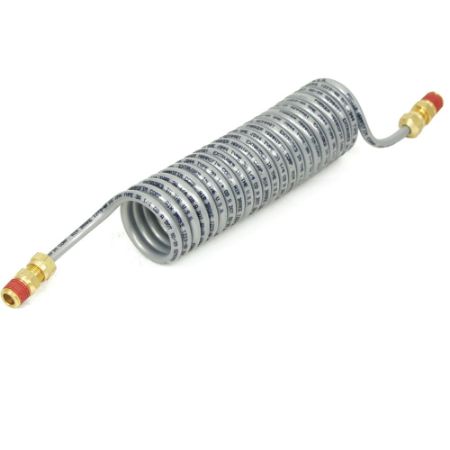

Truck Coils, Fifth Wheel Slider

A Parker Fifth Wheel Slider Coil is a universal slider coil, providing clutter-free hook-up with adjustable length pneumatic tubing for fifth wheel sliding action.  The UV resistant tube is heat and light stabilized and the coil will self-adjust from 10" to a fully extended 74" working length for greater movability.  The working length extension allows for the fifth wheel base plate to slide in location for level loading of the trailer.

Markets:
• Transportation

Features/Benefits:
• Universal, ready for immediate installation
• Self-adjusting, from 10" to fully extended 74" working length for extra operating maneuvering
• Coil set is strong and permanent - Even after prolonged use in fully extended position, coils will retract to shorter length without sagging and eliminating hazards of chafing and wear
• No maintenance required - stays on the job at peak performance through years of trouble-free life

Applications:
• Double trailers
• Converter dollies

Certifications/Compliances:
• Conforms to SAE Specification J844 Type A and meets D.O.T. FMVSS 106

Technical Specifications:
• Construction: ¼” O.D. Nylon single wall tubing
• Available with or without fittings; silver coils come complete with fittings and a black coil is supplied without fittings
