Truck Coils, Fifth Wheel Slider

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

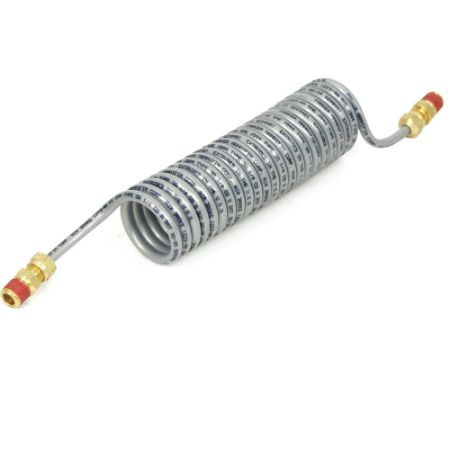

A Parker Fifth Wheel Slider Coil is a universal slider coil, providing clutter-free hook-up with adjustable length pneumatic tubing for fifth wheel sliding action. The UV resistant tube is heat and light stabilized and the coil will self-adjust from 10" to a fully extended 74" working length for greater movability. The working length extension allows for the fifth wheel base plate to slide in location for level loading of the trailer.

Markets:
• Transportation

Features/Benefits:
• Universal, ready for immediate installation
• Self-adjusting, from 10" to fully extended 74" working length for extra operating maneuvering
• Coil set is strong and permanent - Even after prolonged use in fully extended position, coils will retract to shorter length without sagging and eliminating hazards of chafing and wear
• No maintenance required - stays on the job at peak performance through years of trouble-free life

Applications:
• Double trailers
• Converter dollies

Certifications/Compliances:
• Conforms to SAE Specification J844 Type A and meets D.O.T. FMVSS 106

Technical Specifications:
• Construction: ¼” O.D. Nylon single wall tubing
• Available with or without fittings; silver coils come complete with fittings and a black coil is supplied without fittings

View as Grid List

Sort by

Display per page

Action	Part No.	Availability	Partner Available	Price	Product Style	Application	Minimum Operating Temperature	Retracted Length	Division	Pigtail Length	Maximum Operating Temperature	Working Length	Color	Disclaimer	Tube Outside Diameter	Tube Material	Color
	811537	Quote Required	Quote Required	TBD	Fifth Wheel Slider Coil	Tractor to Trailer	-40 °F	10 inch	Parflex Division	2 inch	200 °F	74 inch	Silver	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	1/4 inch	Polyamide (PA) (heat and light stabilized)	Silver
