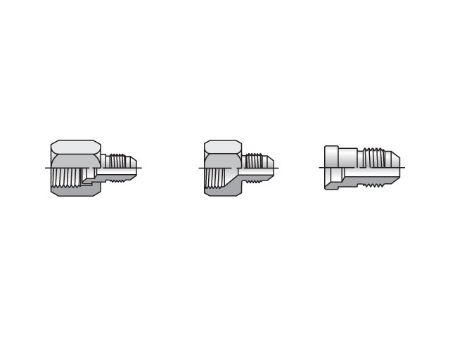

Triple-Lok 37° Straight TRTXN

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Triple-Lok® 37° flare tube fittings and adapters are the most popular industrial tube/hose fitting connection in the world. Simply by changing the industry standard sleeve, the same Triple-Lok body can be adapted to metric tubing in sizes ranging from 6 mm tube O.D. to 38 mm tube O.D. Likewise, by using only the body without the nut and sleeve, the Triple-Lok fitting is used as an industry standard hose adapter.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	UOM	Material	Pkg Qty/UOM	Pkg Qty	End 1	End 2	Parker Group	Parker Division	Configuration Type	Material	Inch/Metric	End 1 Type	End 1	End 2 Type	Series	Tube Fitting/Adapter Type	Trade Name	Configuration Sub-Type	End 2
10-8 TRTXN-S BP	Quote Required	Quote Required	TBD	EA		Steel	100 EA	100	5/8 Inch	1/2 Inch	Fluid Connector	Tube Fitting	Straight	Steel	Inch	Inch	5/8 Inch	Inch	37°	37°, Triple-Lok	Triple-Lok	Reducer 37° Flare	1/2 Inch
12-10 TRTXN-S BP	Quote Required	Quote Required	TBD	EA		Steel	50 EA	50	3/4 Inch	3/4 Inch	Fluid Connector	Tube Fitting	Straight	Steel	Inch	Inch	3/4 Inch	Inch	37°	37°, Triple-Lok	Triple-Lok	Reducer 37° Flare	3/4 Inch
24-16 TRTXN-S	11 In Stock	117 In Stock	$113.08	EA	EA	Steel	2 EA	2	1 1/2 Inch	1 Inch	Fluid Connector	Tube Fitting	Straight	Steel	Inch	Inch	1 1/2 Inch	Inch	37°	37°, Triple-Lok	Triple-Lok	Reducer 37° Flare	1 Inch
8-4 TRBTXN-SS	Quote Required	Quote Required	TBD	EA		Stainless Steel	1 EA	1	1/2 Inch	1/4 Inch	Fluid Connector	Tube Fitting	Straight	Stainless Steel	Inch	Inch	1/2 Inch	Inch	37°	37°, Triple-Lok	Triple-Lok	Reducer 37° Flare	1/4 Inch
