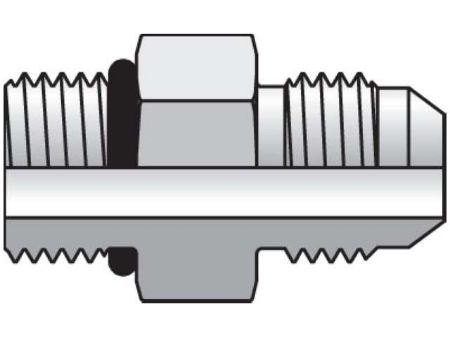

Triple-Lok 37° Straight F5OX
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Triple-Lok® 37° flare tube fittings and adapters are the most popular industrial tube/hose fitting connection in the world. Simply by changing the industry standard sleeve, the same Triple-Lok body can be adapted to metric tubing in sizes ranging from 6 mm tube O.D. to 38 mm tube O.D. Likewise, by using only the body without the nut and sleeve, the Triple-Lok fitting is used as an industry standard hose adapter.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Material | Pkg Qty/UOM | End 1 | Pkg Qty | End 2 | Parker Group | Parker Division | Configuration Type | Material | Inch/Metric | End 1 | End 1 Type | Series | Tube Fitting/Adapter Type | End 2 Type | Trade Name | Configuration Sub-Type | End 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 F5BX-S | Quote Required | $15.68/each | EA | EA | Steel | 10 EA | 3/4 Inch | 10 | 1 1/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 3/4 Inch | Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Thread Connector 37° Flare / SAE-ORB | 1 1/16-12 UN/UNF-2A | ||
| 12-16 F5BX-S | Quote Required | $23.58/each | EA | EA | Steel | 10 EA | 3/4 Inch | 10 | 1 5/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 3/4 Inch | Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Thread Connector 37° Flare / SAE-ORB | 1 5/16-12 UN/UNF-2A | ||
| 16 F5BX-SS | Quote Required | $206.43/each | EA | EA | Stainless Steel | 1 EA | 1 Inch | 1 | 1 5/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Straight | Stainless Steel | Inch | 1 Inch | Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Thread Connector 37° Flare / SAE-ORB | 1 5/16-12 UN/UNF-2A | ||
| 4 F5BX-SS | Quote Required | $24.08/each | EA | EA | Stainless Steel | 25 EA | 1/4 Inch | 25 | 7/16-20 UN/UNF-2A | Fluid Connector | Tube Fitting | Straight | Stainless Steel | Inch | 1/4 Inch | Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Thread Connector 37° Flare / SAE-ORB | 7/16-20 UN/UNF-2A | ||
| 8 F5BX-S | Quote Required | $8.61/each | EA | EA | Steel | 25 EA | 1/2 Inch | 25 | 3/4-16 UN/UNF-2A | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 1/2 Inch | Inch | 37° | 37°, Triple-Lok | UN/UNF-2A | Triple-Lok | Straight Thread Connector 37° Flare / SAE-ORB | 3/4-16 UN/UNF-2A |
