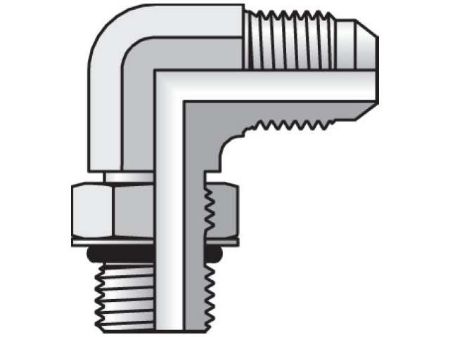

Triple-Lok 37° 90° Elbow C5OX
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Triple-Lok® 37° flare tube fittings and adapters are the most popular industrial tube/hose fitting connection in the world. Simply by changing the industry standard sleeve, the same Triple-Lok body can be adapted to metric tubing in sizes ranging from 6 mm tube O.D. to 38 mm tube O.D. Likewise, by using only the body without the nut and sleeve, the Triple-Lok fitting is used as an industry standard hose adapter.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | Pkg Qty/UOM | Pkg Qty | End 1 | Material | End 2 | Parker Group | Parker Division | Inch/Metric | End 1 Type | End 1 | Material | Configuration Type | Series | Configuration Sub-Type | Tube Fitting/Adapter Type | End 2 | End 2 Type | Trade Name | O-Ring/Seal Material | O-Ring/Seal Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 C5BX-SS | Quote Required | TBD | EA | 5 EA | 5 | 5/8 Inch | Stainless Steel | 7/8-14 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 5/8 Inch | Stainless Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 7/8-14 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 10 C5OX-S BP | Quote Required | TBD | EA | 100 EA | 100 | 5/8 Inch | Steel | 7/8-14 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 5/8 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 7/8-14 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 10 C5OX-S V0894 | Quote Required | TBD | EA | 100 EA | 100 | 5/8 Inch | Steel | 7/8-14 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 5/8 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 7/8-14 UN/UNF-2A | UN/UNF-2A | Triple-Lok | Fluorocarbon | Fluorocarbon | ||
| 10-12 C5OX-S BP | Quote Required | TBD | EA | 75 EA | 75 | 5/8 Inch | Steel | 1 1/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 5/8 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 10-12 C5X-S | Quote Required | TBD | EA | 5 EA | 5 | 5/8 Inch | Steel | 1 1/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 5/8 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 10-8 C5OX-S BP | Quote Required | TBD | EA | 110 EA | 110 | 5/8 Inch | Steel | 3/4-16 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 5/8 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 3/4-16 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 12 C5BX-S | Quote Required | TBD | EA | 10 EA | 10 | 3/4 Inch | Steel | 1 1/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 3/4 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 12 C5BX-SS | Quote Required | TBD | EA | 5 EA | 5 | 3/4 Inch | Stainless Steel | 1 1/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 3/4 Inch | Stainless Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 12 C5OX-S BP | Quote Required | TBD | EA | 50 EA | 50 | 3/4 Inch | Steel | 1 1/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 3/4 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 12 C5OX-S V0894 | Quote Required | TBD | EA | 75 EA | 75 | 3/4 Inch | Steel | 1 1/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 3/4 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | Fluorocarbon | Fluorocarbon | ||
| 12 C5OX-SS V0894 BP | Quote Required | TBD | EA | 2 EA | 2 | 3/4 Inch | Stainless Steel | 1 1/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 3/4 Inch | Stainless Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 12 C5X-S | Quote Required | TBD | EA | 10 EA | 10 | 3/4 Inch | Steel | 1 1/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 3/4 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 12 C5X-SS | Quote Required | TBD | EA | 1 EA | 1 | 3/4 Inch | Stainless Steel | 1 1/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 3/4 Inch | Stainless Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 1 1/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 12-10 C5BX-S | Quote Required | TBD | EA | 10 EA | 10 | 3/4 Inch | Steel | 7/8-14 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 3/4 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 7/8-14 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 12-10 C5OX-S BP | Quote Required | TBD | EA | 25 EA | 25 | 3/4 Inch | Steel | 7/8-14 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 3/4 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 7/8-14 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 12-10 C5OX-S V0894 | Quote Required | TBD | EA | 80 EA | 80 | 3/4 Inch | Steel | 7/8-14 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 3/4 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 7/8-14 UN/UNF-2A | UN/UNF-2A | Triple-Lok | Fluorocarbon | Fluorocarbon | ||
| 12-16 C5OX-S BP | Quote Required | TBD | EA | 25 EA | 25 | 3/4 Inch | Steel | 1 5/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 3/4 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 1 5/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 16 C5BX-S | Quote Required | TBD | EA | 5 EA | 5 | 1 Inch | Steel | 1 5/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 1 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 1 5/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 16 C5OX-S BP | Quote Required | TBD | EA | 25 EA | 25 | 1 Inch | Steel | 1 5/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 1 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 1 5/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | ||||
| 16 C5OX-S V0894 | Quote Required | TBD | EA | 25 EA | 25 | 1 Inch | Steel | 1 5/16-12 UN/UNF-2A | Fluid Connector | Tube Fitting | Inch | Inch | 1 Inch | Steel | 90° Elbow | 37° | Straight Thread Elbow 37° Flare / SAE-ORB | 37°, Triple-Lok | 1 5/16-12 UN/UNF-2A | UN/UNF-2A | Triple-Lok | Fluorocarbon | Fluorocarbon |
