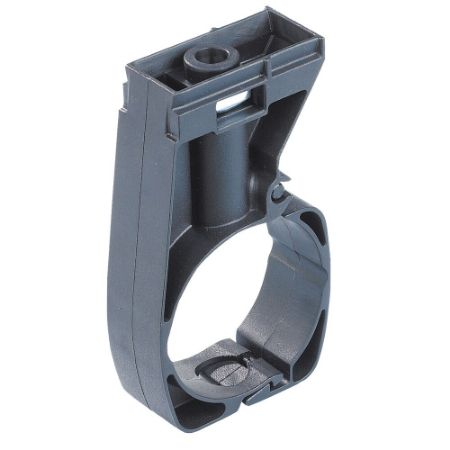

Transair® Pipe Hangers
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Transair Pipe Hangers are lightweight and easy to install. All hangers are installed by positioning a threaded rod into a fixed position, then threading the pipe hanger onto the rod. This installation method keeps the piping stable during the expansion and contraction of the system. To overcome most pipe routing challenges, Parker offers spacers and threaded rod adapters that can be used to extend the pipe below or away from an obstacle. Transair compressed air piping can only be hung using Transair pipe hangers. The use of non-Transair hangers can void the warranty.
All hangers are 100% recyclable, silicone free, and made from materials with no propagation of flame. All hangers conform to the UL94V-2 standard. Parker Hannifin warrants all Transair components to be free of defects in material and workmanship for 10 years from the date of installation.
Each Transair pipe hanger can support 44lbs, but Parker suggests using 2 clips per length of pipe. For proper installation and placement of the hangers, download our installation manual.
Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace
Features / Benefits:
• Modular and reusable
• 100% recyclable
• Faster installation
• Lower installation costs
• Lightweight
• 10-year Warranty
Applications:
• Compressed Air
• Vacuum
• Industrial/Inert Gasses (i.e. Argon, Nitrogen, Carbon Dioxide)
• Process Water
• Chemical Transfer
| Action | Part No. | Availability | Partner Available | Price | UOM | Brand | Industry | Product Style | Configuration | Connection 1 Size | Quantity per Box | Technology | Assembly Time | Division | Minimum Operating Temperature | Application | Maximum Operating Temperature | Assembly | Shape | Division | For Fluid Type | Pipe Outside Diameter | Body Material | Maximum Operating Pressure | Connection 2 Type | Product Type | Weight | Connection 1 Type | Connection 2 Size | Pipe O.D. (inch) | Application | Type | Pipe O.D. (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0169 00 05 00 | Quote Required | 1969 In Stock | $4.90 | EA | Parker | General Industrial | Increaser | Thread to Port | 1/4-20 inch | 15 | Fluid & Gas Handling | 0.01 Hours | Fluid System Connectors Division | n/a °C | In Plant Pneumatic | n/a °C | n/a | Straight | Fluid System Connectors Division | n/a | 25 mm | Treated Steel | n/a psi | Female NPT | Compressed Air Piping | 0.120 lb | Port | 3/8-16 inch | 1/2 to 1-1/2 | Aluminum Pipe | Threaded Rod Adapter | 16.5 to 40 | |
| 6697 00 02 | Quote Required | TBD | Parker|Transair | General Industrial | Pipe hanger | Thread to Port | M8 mm | 15 | Pneumatics | 0.01 Hours | Fluid System Connectors Division | n/a °C | In Plant Pneumatic | n/a °C | n/a | Straight | Low Pressure Connectors Europe Division | n/a | Treated Steel | n/a psi | Female NPT | Compressed Air Piping | 0,013 lb | Port | n/a inch | 1/4-20 | n/a | Adaptor | M8 | ||||
| 6697 00 03 | Quote Required | 305 In Stock | $3.60 | EA | Transair | General Industrial | Spacer | n/a (spacer) | n/a inch | 15 | Pneumatics | 0.02 Hours | Low Pressure Connectors Europe Division | n/a °C | In Plant Pneumatic | n/a °C | n/a | Straight | Low Pressure Connectors Europe Division | n/a | Technical Polymer | n/a psi | Female BSPP | Compressed Air Piping | 0.009 lb | Pipe | n/a inch | 1/2 to 1-1/2 | Aluminum Pipe | Spacer | 16.5 to 40 | ||
| 6697 17 00 | Quote Required | TBD | Transair | General Industrial | Pipe hanger | Pipe to Port | 16.5 mm | 25 | Pneumatics | 0.01 Hours | Low Pressure Connectors Europe Division | n/a °C | In Plant Pneumatic | n/a °F | n/a | Circular | Low Pressure Connectors Europe Division | n/a | Technical Polymer | n/a psi | Female Metric | Compressed Air Piping | 0.012 lb | Pipe | M8x1.25 mm | 1/2 | Aluminum Pipe | Pipe Hanger | 16.5 | ||||
| 6697 17 01 | 15 In Stock | 607 In Stock | $3.78 | EA | Parker | General Industrial | Pipe hanger | Pipe to Port | 1/2 inch | 25 | Fluid & Gas Handling | 0.01 Hours | Fluid System Connectors Division | n/a °C | In Plant Pneumatic | n/a °F | n/a | Circular | Fluid System Connectors Division | n/a | Technical Polymer | n/a psi | Female NPT | Compressed Air Piping | 0.02 kg | Pipe | 1/4-20 UNC inch | 1/2 | Aluminum Pipe | Pipe Hanger | 16.5 | ||
| 6697 25 00 | Quote Required | TBD | Transair | General Industrial | Pipe hanger | Pipe to Port | 1 inch | 25 | Pneumatics | 0.01 Hours | Low Pressure Connectors Europe Division | n/a °F | In Plant Pneumatic | n/a °F | n/a | Circular | Low Pressure Connectors Europe Division | n/a | Technical Polymer | n/a bar | Female Metric | Compressed Air Piping | 0.013 lb | Pipe | M8x1.25 mm | 1 | Aluminum Pipe | Pipe Hanger | 25 | ||||
| 6697 25 01 | 7 In Stock | 3097 In Stock | $4.45 | EA | Parker | General Industrial | Pipe hanger | Pipe to Port | 25 mm | 25 | Fluid & Gas Handling | 0.01 Hours | Fluid System Connectors Division | n/a °C | In Plant Pneumatic | n/a °C | n/a | Circular | Fluid System Connectors Division | n/a | Technical Polymer | n/a bar | Female NPT | Compressed Air Piping | 0.07 kg | Pipe | M8x1.25 mm | 1 | Aluminum Pipe | Pipe Hanger | 25 | ||
| 6697 40 00 | Quote Required | TBD | Transair | General Industrial | Pipe hanger | Pipe to Port | 40 mm | 20 | Fluid & Gas Handling | 0.01 Hours | Low Pressure Connectors Europe Division | n/a °C | In Plant Pneumatic | n/a °C | n/a | Circular | Low Pressure Connectors Europe Division | n/a | Technical Polymer | n/a psi | Female Metric | Compressed Air Piping | 0.035 kg | Pipe | M8x1.25 mm | 1-1/2 | Aluminum Pipe | Pipe Hanger | 40 | ||||
| 6697 40 01 | 24 In Stock | 2434 In Stock | $5.00 | EA | Transair | General Industrial | Pipe hanger | Pipe to Port | 40 mm | 20 | Fluid & Gas Handling | 0.01 Hours | Fluid System Connectors Division | n/a °C | In Plant Pneumatic | n/a °F | n/a | Circular | Fluid System Connectors Division | n/a | Technical Polymer | n/a bar | Female NPT | Compressed Air Piping | 0.080 lb | Pipe | M8x1.25 mm | 1-1/2 | Aluminum Pipe | Pipe Hanger | 40 | ||
| 6697 50 00 | Quote Required | TBD | Parker | General Industrial | Pipe hanger | Pipe to Port | 50 mm | 20 | Fluid & Gas Handling | 0.02 Hours | Low Pressure Connectors Europe Division | n/a °C | In Plant Pneumatic | n/a °F | n/a | Circular | Low Pressure Connectors Europe Division | n/a | Technical Polymer | n/a psi | Female Metric | Compressed Air Piping | 0.068 kg | Pipe | 3/8 inch | 2 | Aluminum Pipe | Pipe Hanger | 2 | ||||
| 6697 50 01 | Quote Required | 1834 In Stock | $5.60 | EA | Transair | General Industrial | Pipe hanger | Pipe to Port | 50 mm | 20 | Fluid & Gas Handling | 0.02 Hours | Fluid System Connectors Division | n/a °C | In Plant Pneumatic | n/a °F | n/a | Circular | Fluid System Connectors Division | n/a | Technical Polymer | n/a bar | Female NPT | Compressed Air Piping | 0.06 kg | Pipe | M10x1.5 mm | 2 | Aluminum Pipe | Pipe Hanger | 50 | ||
| 6697 63 00 | Quote Required | TBD | Parker | General Industrial | Pipe hanger | Pipe to Port | 2-1/2 inch | 20 | Fluid & Gas Handling | 0.02 Hours | Low Pressure Connectors Europe Division | n/a °C | In Plant Pneumatic | n/a °F | n/a | Circular | Low Pressure Connectors Europe Division | n/a | Technical Polymer | n/a psi | Female Metric | Compressed Air Piping | 0.0728 kg | Pipe | M10x1.5 mm | 2-1/2 | Aluminum Pipe | Pipe Hanger | 63 | ||||
| 6697 63 01 | Quote Required | 537 In Stock | $8.70 | EA | Parker | General Industrial | Pipe hanger | Pipe to Port | 63 mm | 20 | Pneumatics | 0.02 Hours | Fluid System Connectors Division | n/a °F | In Plant Pneumatic | n/a °C | n/a | Circular | Fluid System Connectors Division | n/a | Technical Polymer | n/a bar | Female NPT | Compressed Air Piping | 0.08 kg | Pipe | M10x1.5 mm | 2-1/2 | Aluminum Pipe | Pipe Hanger | 63 | ||
| ER01 L1 00 | Quote Required | 88 In Stock | $10.24 | EA | Transair | General Industrial | Pipe hanger | Pipe to Port | 76 mm | 25 | Fluid & Gas Handling | 0.1 Hours | Fluid System Connectors Division | n/a °C | In Plant Pneumatic | n/a °F | n/a | Circular | Fluid System Connectors Division | n/a | Treated Steel | n/a psi | Female Metric | Compressed Air Piping | 0.168 kg | Pipe | M8|M10 mm | 3 | Aluminum Pipe | Pipe Hanger | 76 | ||
| ER01 L3 00 | 50 In Stock | 214 In Stock | $11.74 | EA | Transair | General Industrial | Pipe hanger | Pipe to Port | 100 mm | 25 | Fluid & Gas Handling | 0.1 Hours | Low Pressure Connectors Europe Division | n/a °C | In Plant Pneumatic | n/a °C | n/a | Circular | Fluid System Connectors Division | n/a | Treated Steel | n/a psi | Female Metric | Compressed Air Piping | 0.2586 kg | Pipe | 3/8-16 UNC inch | 4 | Aluminum Pipe | Pipe Hanger | 101 | ||
| ER01 L8 00 | Quote Required | TBD | Transair | General Industrial | Pipe hanger | Pipe to Port | 168 mm | 10 | Fluid & Gas Handling | 0.1 Hours | Low Pressure Connectors Europe Division | n/a °C | In Plant Pneumatic | n/a °F | n/a | Circular | Low Pressure Connectors Europe Division | n/a | Treated Steel | n/a bar | Female Metric | Compressed Air Piping | 0.244 lb | Pipe | M8|M10 mm | 6 | Aluminum Pipe | Pipe Hanger | 168 | ||||
| ER01 M4 00 | Quote Required | TBD | Parker | General Industrial | Pipe hanger | Pipe to Port | 1-1/2 | 25 | Pneumatics | 0.1 | Low Pressure Connectors Europe Division | n/a | In Plant Pneumatic | n/a | n/a | Circular | Low Pressure Connectors Europe Division | n/a | Treated Steel | n/a | Female Metric | Compressed Air Piping | 0,017 | Pipe | 3/8-16 | 1-1/2 | Stainless Steel Pipe | Pipe Hanger | 42 | ||||
| ER01 M6 00 | Quote Required | TBD | Parker | General Industrial | Pipe hanger | Pipe to Port | 2-1/2 | 25 | Pneumatics | 0.1 | Low Pressure Connectors Europe Division | n/a | In Plant Pneumatic | n/a | n/a | Circular | Low Pressure Connectors Europe Division | n/a | Treated Steel | n/a | Female Metric | Compressed Air Piping | 0,026 | Pipe | 3/8-16 | 2-1/2 | Stainless Steel Pipe | Pipe Hanger | 60 | ||||
| ER01 N7 00 | Quote Required | TBD | Transair | General Industrial | Pipe hanger | Pipe to Port | 22 mm | 50 | Fluid & Gas Handling | 0.1 Hours | Low Pressure Connectors Europe Division | n/a °F | In Plant Pneumatic | n/a °F | n/a | Circular | Low Pressure Connectors Europe Division | n/a | Treated Steel | n/a psi | Female Metric | Compressed Air Piping | 0.029 lb | Pipe | 3/8-16 inch | 3/4 | Stainless Steel Pipe | Pipe Hanger | 22 | ||||
| ER01 N9 00 | Quote Required | TBD | Parker | General Industrial | Pipe hanger | Pipe to Port | 1 | 25 | Pneumatics | 0.1 | Low Pressure Connectors Europe Division | n/a | In Plant Pneumatic | n/a | n/a | Circular | Low Pressure Connectors Europe Division | n/a | Treated Steel | n/a | Female Metric | Compressed Air Piping | 0.032 | Pipe | 3/8-16 | 1 | Stainless Steel Pipe | Pipe Hanger | 28 |
