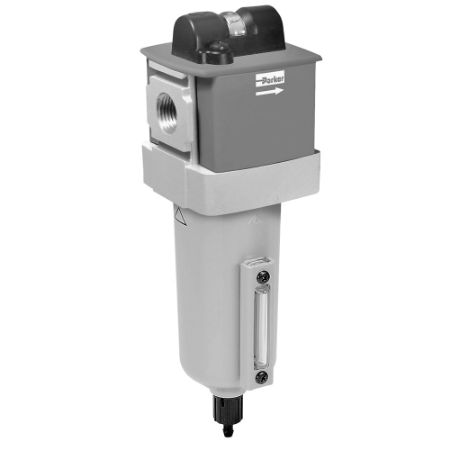

Transair Coalescing Filters
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's line of coalescing filters are designed to remove liquid aerosols, water, oil and submicron particulate materials from compressed air systems. These coalescing filters will remove solid particles, water and oil aerosols down to 0.01 microns. Parker offers an array of filters to match flow and space restrictions without sacrificing performance. Through the use of connector brackets, these coalescing filters can attach to other Parker air preparation products.
Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace
Features/Benefits:
• Integral 1/2", 3/4", or 1" NPT ports.
• High efficient 0.01 micron filter elements
• Robust, lightweight aluminum construction
• Manual or auto drains
Applications:
• Compressed Air
| Action | Part No. | Availability | Partner Available | Price | UOM | Minimum Operating Temperature | Cap Material | Seal Material | Division | Body Material | Maximum Operating Pressure | Filter Efficiency Rating | Retainer Material | Filter Element Type | Maximum Operating Temperature | Port Thread Size (Inch) | Flow Rate (SCFM) | Flow Rate (dm3/s) | Drain Option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FP32FB94DSAN | Quote Required | TBD | -13 °F | ABS | Nitrile | Fluid System Connectors Division | Aluminum | 10 bar | 0.01 MICRON | Acetal | Sintered Polyethylene | 65.5 °C | 1/2 | 38 | 28 | Auto | |||
| FP32FB94DSMN | Quote Required | $0.01 | EA | -25 °C | ABS | Nitrile | Fluid System Connectors Division | Aluminum | 10 bar | 0.01 MICRON | Acetal | Sintered Polyethylene | 150 °F | 1/2 | 38 | 28 | Manual | ||
| FP33FA94DSAN | Quote Required | TBD | -13 °F | ABS | Nitrile | Fluid System Connectors Division | Aluminum | 10 bar | 0.01 MICRON | Acetal | Sintered Polyethylene | 150 °F | 1/2 | 72 | 34 | Auto | |||
| FP33FA94DSMN | Quote Required | TBD | -25 °C | ABS | Nitrile | Fluid System Connectors Division | Aluminum | 150 psig | 0.01 MICRON | Acetal | Sintered Polyethylene | 65.5 °C | 1/2 | 72 | 34 | Manual | |||
| FP33FA96DSAN | Quote Required | TBD | -25 °C | ABS | Nitrile | Fluid System Connectors Division | Aluminum | 150 psig | 0.01 MICRON | Acetal | Sintered Polyethylene | 150 °F | 3/4 | 72 | 34 | Auto | |||
| FP33FA96DSMN | Quote Required | TBD | -13 °F | ABS | Nitrile | Fluid System Connectors Division | Aluminum | 10 bar | 0.01 MICRON | Acetal | Sintered Polyethylene | 150 °F | 3/4 | 72 | 34 | Manual | |||
| FP3YFA96DSAN | Quote Required | TBD | 14 °F | ABS | Nitrile | Fluid System Connectors Division | Aluminum | 254 psig | 0.01 MICRON | Acetal | Sintered Polyethylene | 60 °C | 3/4 | 120 | 59 | Auto | |||
| FP3YFA96DSCN | Quote Required | TBD | 14 °F | ABS | Nitrile | Fluid System Connectors Division | Aluminum | 17.5 bar | 0.01 MICRON | Acetal | Sintered Polyethylene | 60 °C | 3/4 | 120 | 59 | Manual | |||
| FP3YFA98DSAN | Quote Required | TBD | -10 °C | ABS | Nitrile | Fluid System Connectors Division | Aluminum | 17.5 bar | 0.01 MICRON | Acetal | Sintered Polyethylene | 140 °F | 1 | 120 | 59 | Auto | |||
| FP3YFA98DSCN | Quote Required | TBD | -10 °C | ABS | Nitrile | Fluid System Connectors Division | Aluminum | 254 psig | 0.01 MICRON | Acetal | Sintered Polyethylene | 60 °C | 1 | 120 | 59 | Manual |
