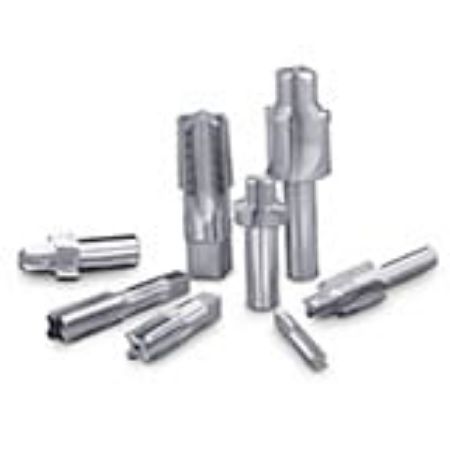

Thread Tapping and Port Counterboring Tools
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's high quality Thread Tapping and Port Counterboring Tools machine precision ports and threads in the most common industrial fitting port styles.
Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Port thread tapping tools are bottoming type and made from high speed tool steel.
• BSPP and ISO 6149 counterboring tools are carbide tipped, and the SAE counterboring tool made from high speed steel.
• Available port tool styles and sizes:
- SAE straight thread J1926-1 in SAE dash sizes 2 through 32
- NPTF in sizes 1/8” through 1 ½”
- BSPP Straight Thread DIN 3852-2 and ISO 228-1 in sizes 1/8 through 1 1/2
- BSPT ISO 7-1 in sizes 1/8 through 1 1/2
- ISO 6149-1 in sizes M8 through M48 for the tapping and small spotface counterboring tool, and in sizes M10 through M33 for the counterboring tool with ID groove
Applications
• Creating ports and threads in industrial and mobile applications
Read More...Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Port thread tapping tools are bottoming type and made from high speed tool steel.
• BSPP and ISO 6149 counterboring tools are carbide tipped, and the SAE counterboring tool made from high speed steel.
• Available port tool styles and sizes:
- SAE straight thread J1926-1 in SAE dash sizes 2 through 32
- NPTF in sizes 1/8” through 1 ½”
- BSPP Straight Thread DIN 3852-2 and ISO 228-1 in sizes 1/8 through 1 1/2
- BSPT ISO 7-1 in sizes 1/8 through 1 1/2
- ISO 6149-1 in sizes M8 through M48 for the tapping and small spotface counterboring tool, and in sizes M10 through M33 for the counterboring tool with ID groove
Applications
• Creating ports and threads in industrial and mobile applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Specifications Met | Shank Length | Wrench Size | Port Thread Size | Product Type | Length | Shank Diameter | Pilot Drill Diameter | Division | Port Type | Dash Number | Operation Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9/16X18 UNF-2B | Quote Required | TBD | EA | SAE J1926-1 | na | 0.322 inch | na | na | 3 19/32 inch | 0.429 inch | na | Tube Fittings Division | SAE Straight Thread | 6 | Tapping | ||
| 974242-G1/4 | Quote Required | $166.41/each | EA | ISO 228-1 | na | na | na | na | 2 7/16 inch | 0.563 inch | na | Tube Fittings Division | BSPP | na | Tapping | ||
| Y-34731 | Quote Required | $410.17/each | EA | SAE J1926-1 | 1 1/2 inch | na | na | na | 2 1/2 inch | 1/2 inch | 0.328 inch | Tube Fittings Division | SAE Straight Thread | 3 | Counterboring | ||
| Y-34732 | Quote Required | $390.65/each | EA | SAE J1926-1 | 1 1/2 inch | na | na | na | 2 41/64 inch | 1/2 inch | 0.377 inch | Tube Fittings Division | SAE Straight Thread | 4 | Counterboring | ||
| Y-34734 | Quote Required | $437.80/each | EA | SAE J1926-1 | 1 1/2 inch | na | na | na | 2 47/64 inch | 3/4 inch | 0.5 inch | Tube Fittings Division | SAE Straight Thread | 6 | Counterboring | ||
| Y-34736 | Quote Required | $496.08/each | EA | SAE J1926-1 | 2 inch | na | na | na | 3 29/64 inch | 1 inch | 0.797 inch | Tube Fittings Division | SAE Straight Thread | 10 | Counterboring | ||
| Y-34739 | Quote Required | $687.83/each | EA | SAE J1926-1 | 2 inch | na | na | na | 3 41/64 inch | 1 inch | 1.22 inch | Tube Fittings Division | SAE Straight Thread | 16 | Counterboring | ||
| Y-34741 | Quote Required | $1,161.85/each | EA | SAE J1926-1 | 2 inch | na | na | na | 3 37/64 inch | 1 1/2 inch | 1.78 inch | Tube Fittings Division | SAE Straight Thread | 24 | Counterboring |
