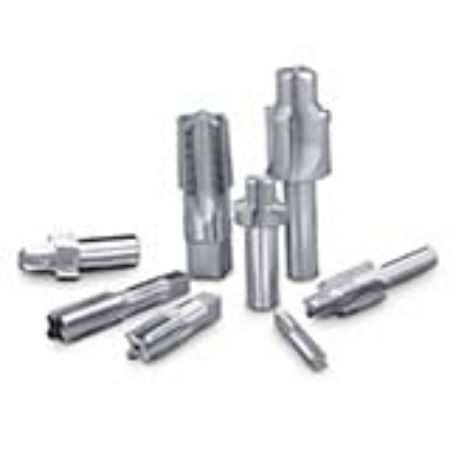

Thread Tapping and Port Counterboring Tools
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's high quality Thread Tapping and Port Counterboring Tools machine precision ports and threads in the most common industrial fitting port styles.
Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Port thread tapping tools are bottoming type and made from high speed tool steel.
• BSPP and ISO 6149 counterboring tools are carbide tipped, and the SAE counterboring tool made from high speed steel.
• Available port tool styles and sizes:
- SAE straight thread J1926-1 in SAE dash sizes 2 through 32
- NPTF in sizes 1/8” through 1 ½”
- BSPP Straight Thread DIN 3852-2 and ISO 228-1 in sizes 1/8 through 1 1/2
- BSPT ISO 7-1 in sizes 1/8 through 1 1/2
- ISO 6149-1 in sizes M8 through M48 for the tapping and small spotface counterboring tool, and in sizes M10 through M33 for the counterboring tool with ID groove
Applications
• Creating ports and threads in industrial and mobile applications
Read More...Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Port thread tapping tools are bottoming type and made from high speed tool steel.
• BSPP and ISO 6149 counterboring tools are carbide tipped, and the SAE counterboring tool made from high speed steel.
• Available port tool styles and sizes:
- SAE straight thread J1926-1 in SAE dash sizes 2 through 32
- NPTF in sizes 1/8” through 1 ½”
- BSPP Straight Thread DIN 3852-2 and ISO 228-1 in sizes 1/8 through 1 1/2
- BSPT ISO 7-1 in sizes 1/8 through 1 1/2
- ISO 6149-1 in sizes M8 through M48 for the tapping and small spotface counterboring tool, and in sizes M10 through M33 for the counterboring tool with ID groove
Applications
• Creating ports and threads in industrial and mobile applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Port Thread Size | Shank Length | Pilot Drill Diameter | Division | Dash Number | Shank Diameter | Operation Type | Length | Wrench Size | Product Type | Specifications Met | Port Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 974242-G1/4 | Quote Required | $166.41/each | EA | na | na | na | Tube Fittings Division | na | 0.563 inch | Tapping | 2 7/16 inch | na | na | ISO 228-1 | BSPP | ||
| Y-34731 | Quote Required | $410.17/each | EA | na | 1 1/2 inch | 0.328 inch | Tube Fittings Division | 3 | 1/2 inch | Counterboring | 2 1/2 inch | na | na | SAE J1926-1 | SAE Straight Thread | ||
| Y-34732 | Quote Required | $390.65/each | EA | na | 1 1/2 inch | 0.377 inch | Tube Fittings Division | 4 | 1/2 inch | Counterboring | 2 41/64 inch | na | na | SAE J1926-1 | SAE Straight Thread | ||
| Y-34734 | Quote Required | $437.80/each | EA | na | 1 1/2 inch | 0.5 inch | Tube Fittings Division | 6 | 3/4 inch | Counterboring | 2 47/64 inch | na | na | SAE J1926-1 | SAE Straight Thread | ||
| Y-34736 | Quote Required | $496.08/each | EA | na | 2 inch | 0.797 inch | Tube Fittings Division | 10 | 1 inch | Counterboring | 3 29/64 inch | na | na | SAE J1926-1 | SAE Straight Thread | ||
| Y-34739 | Quote Required | $687.83/each | EA | na | 2 inch | 1.22 inch | Tube Fittings Division | 16 | 1 inch | Counterboring | 3 41/64 inch | na | na | SAE J1926-1 | SAE Straight Thread | ||
| Y-34741 | Quote Required | $1,161.85/each | EA | na | 2 inch | 1.78 inch | Tube Fittings Division | 24 | 1 1/2 inch | Counterboring | 3 37/64 inch | na | na | SAE J1926-1 | SAE Straight Thread |
