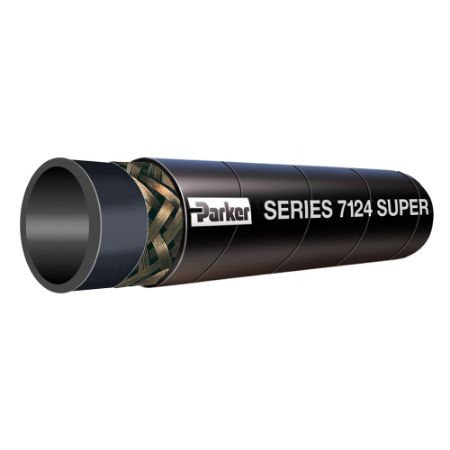

SUPER-FLEX® 2000 Semi-Hardwall Gasoline Dispenser Hose, Series 7124
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 7124 Semi-Hardwall Gasoline Dispenser Hose provides excellent service across a wide variety of industrial and commercial curb pump applications. The robust construction reduces meter creep for accurate consumption data and provides excellent crush resistance and kink resistance for maximum performance. The non-marking hose cover does not deface the finish of vehicles and resists abrasion, oil and weathering. Series 7124 is qualified with permanent crimp couplings for a safe and secure connection and provides robust service in consumer-oriented applications.
Markets:
• General Industrial
• Oil & Gas
Features/Benefits:
• Tube: Black nitrile for fuel compatibility to 180°F.
• Reinforcement: One wire braid for crush resistance, strength and durability.
• Cover: Black CPE for abrasion, oil and weathering resistance.
Applications:
- media
• Refined fuels
• Diesel
• Ethanol
• Gasoline
• Oil
- usage
• Curb pumps
• Gasoline dispensers
• In-plant/tank transfer
• Car rental facilities
• Convenience stores
• Garages
• Service stations
Industry Standards:
• UL330/ULC
Safety/Technical:
• Design Factor: 5:1
• Not UL listed for E85 service
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
• Do not use Parker gasoline dispenser hose for aircraft fueling applications. Use only API/NFPA qualified hose for aircraft fueling applications.
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Minimum Operating Temperature | Length per Package | Maximum Operating Pressure | Minimum Bend Radius | Cover Color | Maximum Operating Temperature | Inside Diameter | Package Type | Hose Inner Tube Material | Cover Material | Outside Diameter | Media | Application | Weight | Cover Structure | Specifications Met | Hose Reinforcement Material | Maximum Working Pressure (psi) | Hose I.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7124-1001A | Quote Required | TBD | Hose Products Division | -40 °F | 500 ft | 50 psi | 5 inch | Black | 180 °F | 25.4 mm | Reel | Black | Chloroprene Rubber (CR) | 1.340 inch | Fuels (Biodiesel to B20 in dedicated service) | Petroleum Transfer | 0.5 lb/ft | Wrapped | UL 30, N4 (factory assemblies) | 1 Braid of Wire | 50 | 1 | |||
| 7124-631A | Quote Required | TBD | FT | Hose Products Division | -40 °F | 500 ft | 3 bar | 3 inch | Black | 180 °F | 5/8 inch | Reel | Black | Chloroprene Rubber (CR) | 24.6 mm | Fuels (Gasoline) - Check fuel type with our catalogue chart. | Petroleum Transfer | 0.35 lb/ft | Wrapped | UL 30, N4 (factory assemblies) | 1 Braid of Wire | 50 | 5/8 | ||
| 7124-751A | Quote Required | 495 In Stock | $9.85 | FT | Hose Products Division | -40 °F | 500 ft | 50 psi | 4 inch | Black | 180 °F | 3/4 inch | Reel | Black | Chloroprene Rubber (CR) | 28.2 mm | Fuels (Gasoline) - Check fuel type with our catalogue chart. | Petroleum Transfer | 0.42 lb/ft | Wrapped | NFPA 30A | 1 Braid of Wire | 50 | 3/4 |
