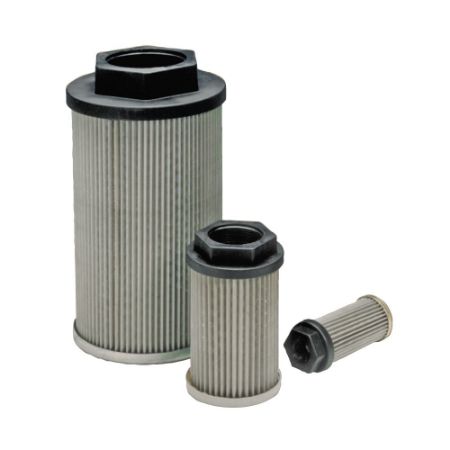

Suction Elements / Inbuilt Filters - SE Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker SE Series suction elements / inbuilt reservoir filters are designed to prevent large objects (i.e., stones, deposits, sticks, etc.) from entering hydraulic system pumps, which can cause increased wear and tear to critical components, shorter maintenance intervals, and added downtime. The elements are designed for installation inside the reservoir / tank and are equipped with 125 micron rating abs steel wire mesh media, which provides maximum filtration efficiency and full fluid flow, thus ensuring reliable system performance.
Multiple filter flow capacities (15 - 500 L/min) and mounting threads (G½, G¾, G1, G1½, G2, G2½, G3) are available to meet the unique requirements of customers’ systems. Suction elements with an integrated 0.17 bar bypass valve are also available as an option.
Typical applications for SE Series tank inbuilt filters include saw mills, agricultural machines, articulated dump trucks, forestry equipment, wheeled loaders, lubricated systems, excavators, industrial power units, and mobile cranes.
Benefits:
• Prevents ingress of large objects into hydraulic systems
• Lengthens time in between required maintenance intervals, reduces operating costs, and extends overall equipment/machine operational life
Features:
• Capable of flows up to 500 l/min (132 gpm).
• Operating temperature range: -30 to +90°C (-22 to +194°F)
• Optional 0.17 bar bypass valve available
• Connections: threads: G½, G¾, G1, G1½, G2, G2½, G3"
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
Read More...Multiple filter flow capacities (15 - 500 L/min) and mounting threads (G½, G¾, G1, G1½, G2, G2½, G3) are available to meet the unique requirements of customers’ systems. Suction elements with an integrated 0.17 bar bypass valve are also available as an option.
Typical applications for SE Series tank inbuilt filters include saw mills, agricultural machines, articulated dump trucks, forestry equipment, wheeled loaders, lubricated systems, excavators, industrial power units, and mobile cranes.
Benefits:
• Prevents ingress of large objects into hydraulic systems
• Lengthens time in between required maintenance intervals, reduces operating costs, and extends overall equipment/machine operational life
Features:
• Capable of flows up to 500 l/min (132 gpm).
• Operating temperature range: -30 to +90°C (-22 to +194°F)
• Optional 0.17 bar bypass valve available
• Connections: threads: G½, G¾, G1, G1½, G2, G2½, G3"
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
| Action | Part No. | Availability | Partner Available | Price | Brand | Industry | Outside Diameter | Division | Options | Technology | Mounting Type | Micron Rating | Division | Operating Temperature | Product Type | Housing Material | Application | Length | Bypass Valve Pressure Rating | Flow Rate | Port Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SE.75362410 | Quote Required | $35.91/each | Parker | • Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry | 86 mm | Hydraulic & Industrial Process Filtration Division EMEA | None | Filtration | Tank Mounted | 125.0 MICRON | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Hydraulic Filter | Nylon/Plated mild steel | • Deck and mobile cranes<br/>• Firefighting equipment<br/>• Forwarders<br/>• Hydraulic presses<br/>• Marine steering units<br/>• Power packs<br/>• Waste management, dump and fork lift trucks<br/>• Excavators<br/>• Harvesters<br/>• Was | 259 mm | No Bypass | 180 l/min | 2" NPT | ||
| SE75361410 | Quote Required | 1 Limited Stock | $108.40/each | Parker | • Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry | 86 mm | Engine Mobile Hydraulic and Fuel Filtration Division | Filtration | Tank Mounted | 125.0 MICRON | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Hydraulic Filter | Nylon/Plated mild steel | • Deck and mobile cranes<br/>• Firefighting equipment<br/>• Forwarders<br/>• Hydraulic presses<br/>• Marine steering units<br/>• Power packs<br/>• Waste management, dump and fork lift trucks<br/>• Excavators<br/>• Harvesters<br/>• Was | 260 mm | No Bypass | 180 l/min | G2 | ||
