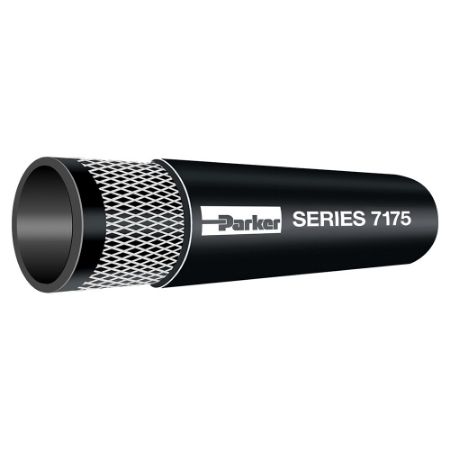

Softwall Farm Pump Hose, Series 7175

Parker's Series 7175 Softwall Farm Pump Hose provides reliable service across a wide variety of low volume agricultural applications. The hose resists abrasion, oil and weathering for maximum performance. Series 7175 is qualified with non-sparking permanent crimp couplings for a safe and secure connection.

Markets:

• Agriculture

Features/Benefits:

• Tube: Black nitrile for fuel compatibility to 180°F.

• Reinforcement: Multiple textile plies for strength and durability, and static wire for a path to conduct an electrical charge to ground.

• Cover: Black chloroprene for abrasion, oil and weathering resistance.

Applications:

- media

• Refined fuels

• Biodiesel (to B20 in dedicated service)

• Diesel

• Ethanol

• Gasoline

• Oil

- usage

• Farm pumps

• Hand pumps

• Powered pumps

• Skid tanks

• Storage tanks

Safety/Technical:

• Design Factor: 4:1

• Not UL listed

Warnings:

• Do not use Parker farm pump hose for aircraft fueling applications. Use only API/NFPA qualified hose for aircraft fueling applications. Use only UL330 listed hose for service station applications.

• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
