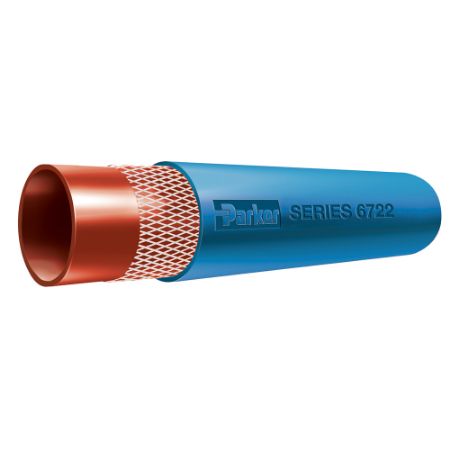

Silicone Standard Wall High Temperature Heater Hose, Series 6722

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series 6722 Silicone Standard Wall High Temperature Heater Hose provides excellent service across a wide variety of coolants and multiple engine heater and radiator applications. The silicone construction resists chemicals, aging, cold leaks, cracking, delamination, heat, ozone and peeling to maximize performance. The hose is flexible for easy routing and installation, resists the elevated temperatures common to engine compartments and is available in a variety of popular and convenient standard lengths.

Markets:

• General Industrial

• Transportation

Features/Benefits:

• Tube: Red silicone for superior heat resistance to 350°F.

• Reinforcement: Multiple textile plies for strength and kink resistance.

• Cover: Blue silicone for superior temperature resistance and easy identification.

Applications:

- media

• Coolant

• Hot water

- usage

• Coolant transfer in heater and coolant circuits

• DEF systems

• Agricultural equipment

• Buses

• Construction equipment

• Off-road equipment

• Trucks

Industry Standards:

• SAE J20R3 Class A

Safety/Technical:

• Design Factor: 3:1

• Nonconductive

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Division	Minimum Bend Radius	Cover Color	Minimum Operating Temperature	Inside Diameter	Application	Media	Outside Diameter	Weight	Cover Material	Cover Structure	Maximum Operating Pressure	Maximum Operating Temperature	Package Type	Specifications Met	Minimum Burst Pressure	Hose Inner Tube Material	Hose Reinforcement Material	Hose I.D. (inch)	Standard Pack Qty (ft)	Minimum Burst Pressure (psi)
6722-0250050	Quote Required	188 In Stock	$6.43/foot	FT	Hose Products Division	0.5	Blue	-65	1/4	Engine	Coolants	0.530	0.10	Silicone	Glossy	17	350	Carton	SAE J20R3	250	Brick Red	Multiple Plies of High Temperature Textile	1/4	50	250
6722-0375050	Quote Required	1566 In Stock	$7.21/foot	FT	Hose Products Division	0.8	Blue	-65	3/8	Engine	Coolants	0.690	0.13	Silicone	Glossy	17	350	Carton	SAE J20R3	250	Brick Red	Multiple Plies of High Temperature Textile	3/8	50	250
6722-0500050	Quote Required	683 In Stock	$9.20/foot	FT	Hose Products Division	1.5	Blue	-65	1/2	Engine	Coolants	0.820	0.17	Silicone	Glossy	17	350	Carton	SAE J20R3	250	Brick Red	Multiple Plies of High Temperature Textile	1/2	50	250
6722-0500250	Quote Required	175 In Stock	$7.85/foot	FT	Hose Products Division	38.1 mm	Blue	-54 °C	1/2 inch	Engine	Coolants	0.820 inch	0.17 lb/ft	Silicone	Glossy	250 psi	350 °F	Reel	SAE J20R3	17.2 bar	Silicone	Multiple Plies of High Temperature Textile	1/2	250	250
6722-0625050	Quote Required	564 In Stock	$11.02/foot	FT	Hose Products Division	1.8	Blue	-65	5/8	Engine	Coolants	0.940	0.24	Silicone	Glossy	17	350	Carton	SAE J20R3	250	Brick Red	Multiple Plies of High Temperature Textile	5/8	50	250
6722-0750050	7 In Stock	429 In Stock	$10.78/foot	FT	Hose Products Division	2.8	Blue	-65	3/4	Engine	Coolants	1.070	0.26	Silicone	Glossy	14	350	Carton	SAE J20R3	200	Brick Red	Multiple Plies of High Temperature Textile	3/4	50	200
6722-0750100	Quote Required	254 In Stock	$10.78/foot	FT	Hose Products Division	69.9 mm	Blue	-54 °C	19.1 mm	Engine	Water	1.070 inch	0.39 kg/m	Silicone	Glossy	14 bar	350 °F	Carton	SAE J2387	200 psi	Brick Red	Multiple Plies of High Temperature Textile	3/4	100	200
6722-0750250	Quote Required	2970 In Stock	$9.19/foot	FT	Hose Products Division	70 mm	Blue	-65 °F	19.1 mm	Silicone Coolant	Coolants	27.1 mm	0.39 kg/m	Silicone	Glossy	200 psi	347 °F	Reel	SAE J2387	200 psi	Silicone	Multiple Plies of High Temperature Textile	3/4	250	200
6722-1000050	Quote Required	524 In Stock	$13.76/foot	FT	Hose Products Division	5	Blue	-65	1	Engine	Coolants	1.340	0.34	Silicone	Glossy	12	350	Carton	SAE J20R3	175	Brick Red	Multiple Plies of High Temperature Textile	1	50	175
