Sewer Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

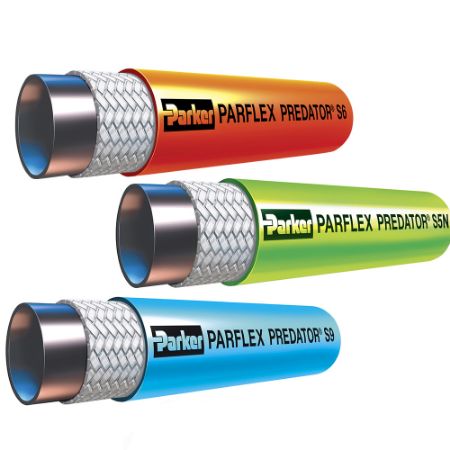

Parkers Predator® Sewer Hoses are available in three different options for jetting and cleaning: S5N (Water Jetting/Lateral Cleaning 4,000 psi), S6 (Sewer Cleaning 2,500 psi) and S9 (Sewer Cleaning 3,000 psi). Each Predator hose is designed with a unique cover color, in compliance with industry standard, to quickly identify the working pressure of each hose and simplify line identification for service personnel and maintenance purposes.
The Predator sewer hose maintains its reputation by delivering the highest level of quality and rugged performance in the industry. For larger volume and higher pressure applications, the S6 and S9 sewer cleaning hoses are available in a bonded twin-line construction. Whether your application involves lateral drain cleaning, water jetting or sewer cleaning service, Parker has the hoses, fittings, equipment and system support to do the job. For more information, such as specific operating parameters and detailed technical specifications, refer to the latest literature on the Product Support tab.
Markets:
• Municipal Sewer Cleaning
• Residential Sewer Cleaning
• Lateral Drain Cleaning
Features/Benefits:
• Easily identified lime green (S5N-4,000 psi), orange (S6-2,500 psi) or blue (S9-3,000) covers to signify constant working pressures
• S5N is lightweight and has a compact profile to provide easy handling and routing during sewer cleaning
• Bonded construction available for S6 and for large volume applications
Applications:
• High-pressure water equipment for cleaning or debris removal in lateral sewer lines
• For water/slurry applications
• S5N lines provide connection from commercial, industrial or residential structure to the main sewer line located under the streets
Notes:
• Factory-made assemblies only
• S6 and S9 - Used in large sewer lines. All standard assembly lengths coupled with rigid male pipe each end; packaged on heavy duty wood reels
• S5N hose is used on lateral lines which are smaller in diameter than the main lines and rely more on water pressure than water volume to clear residue and obstructions; packaged on plastic reels
• For water/slurry applications, contact Parflex for chemical compatibility recommendations
• Not for use in hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Weight | Cover Material | Maximum Operating Temperature | Minimum Operating Temperature | Division | Length per Package | Hose Reinforcement Material | Inside Diameter | Specifications Met | Hose Inner Tube Material | Size | Compatible Fitting | Minimum Bend Radius | Application | Media | Maximum Operating Pressure | Outside Diameter | Design Factor | Hose I.D. (inch) | Maximum Working Pressure (psi) | Standard Pack Qty (ft) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S508N-400 | Quote Required | TBD | 0.24 kg/m | Polyurethane | 135 °F | -40 °F | Parflex Division | View Part Details. | Aramid Fiber | 20.6 mm | N/A | Polyamide (PA) | -8 | 56 Series | 102 mm | Sewer Lines | Water | 276 bar | 20.6 mm | 4 | 0.500 | 4,000 | random lengths | |||
| S508N-500 | Quote Required | TBD | 0.24 kg/m | Polyurethane | 57 °C | -40 °F | Parflex Division | 500 ft | Aramid Fiber | 13 mm | Polyamide (PA) | -8 | 56 Series | 102 mm | Cleaning (Sewers) | Water | 276 bar | 20.6 mm | 4:1 | 0.500 | 4,000 | 500 | ||||
| S508N-600 | Quote Required | TBD | 0.16 lb/ft | Polyurethane | 57 °C | -40 °C | Parflex Division | 600 ft | Aramid Fiber | 13 mm | Polyamide (PA) | -8 | 56 Series | 102 mm | Cleaning (Sewers) | Water | 27.6 MPa | 0.810 inch | 4:1 | 0.500 | 4,000 | 600 | ||||
| S612 | Quote Required | TBD | 0.27 | Polyurethane | 135 | -40 | Parflex Division | View Part Details. | Fiber | 3/4 | Copolyester | -12 | HY Series | 4 | Sewer Lines | Water | 2500 | 1.150 | 4:1 | 0.750 | 2,500 | random lengths | ||||
| S612-400 | Quote Required | TBD | 0.40 kg/m | Polyurethane | 135 °F | -40 °C | Parflex Division | 400 ft | Fiber | 3/4 inch | Copolyester | -12 | SQ Series | 102 mm | Sewer Lines | Water | 2500 psi | 1.150 inch | 4:1 | 0.750 | 2,500 | 400 | ||||
| S612-500 | Quote Required | $4,188.82 | EA | 0.27 lb/ft | Polyurethane | 57 °C | -40 °F | Parflex Division | 500 ft | Fiber | 3/4 inch | Copolyester | -12 | SQ Series | 4 inch | Sewer Lines | Water | 2500 psi | 29 mm | 4:1 | 0.750 | 2,500 | 500 | |||
| S612-600 | Quote Required | TBD | 0.40 kg/m | Polyurethane | 57 °C | -40 °C | Parflex Division | 600 ft | Fiber | 19 mm | Copolyester | -12 | HY Series | 102 mm | Sewer Lines | Water | 2500 psi | 29 mm | 4:1 | 0.750 | 2,500 | 600 | ||||
| S616 | Quote Required | TBD | 0.36 | Polyurethane | 135 | -40 | Parflex Division | View Part Details. | Fiber | 1 | Copolyester | -16 | HY Series | 6 | Sewer Lines | Water | 2500 | 1.420 | 4:1 | 1 | 2,500 | random lengths | ||||
| S616-400 | Quote Required | TBD | 0.36 lb/ft | Polyurethane | 57 °C | -40 °F | Parflex Division | 400 ft | Fiber | 25 mm | Copolyester | -16 | HY Series | 152 mm | Sewer Lines | Water | 2500 psi | 36 mm | 4:1 | 1 | 2,500 | 400 | ||||
| S616-600 | Quote Required | 1 Limited Stock | $6,225.22 | EA | 0.36 lb/ft | Polyurethane | 135 °F | -40 °F | Parflex Division | 600 ft | Fiber | 1 inch | Copolyester | -16 | SQ Series | 152 mm | Cleaning (Sewers) | Water | 2500 psi | 36 mm | 4:1 | 1 | 2,500 | 600 | ||
| S616-800 | Quote Required | 3 In Stock | $8,300.30 | EA | 0.36 lb/ft | Polyurethane | 135 °F | -40 °C | Parflex Division | 800 ft | Fiber | 1 inch | Copolyester | -16 | HY Series | 152 mm | Cleaning (Sewers) | Water | 17.2 MPa | 36 mm | 4:1 | 1 | 2,500 | 800 | ||
| S912 | Quote Required | $0.01 | EA | 0.28 | Polyurethane | 135 | -40 | Parflex Division | View Part Details. | Fiber | 3/4 | Copolyester | -12 | HY Series | 4 | Sewer Lines | Water | 3000 | 1.160 | 4:1 | 3,000 | random lengths | ||||
| S912-400 | Quote Required | TBD | 0.28 lb/ft | Polyurethane | 135 °F | -40 °C | Parflex Division | 400 ft | Fiber | 19 mm | Copolyester | -12 | SQ Series | 4 inch | Cleaning (Sewers) | Water | 3000 psi | 29.5 mm | 4:1 | 0.750 | 3,000 | 400 | ||||
| S912-500 | Quote Required | $5,473.85 | EA | 0.28 lb/ft | Polyurethane | 135 °F | -40 °C | Parflex Division | 500 ft | Fiber | 19 mm | Copolyester | -12 | HY Series | 102 mm | Sewer Lines | Water | 207 bar | 29.5 mm | 4:1 | 0.750 | 3,000 | 500 | |||
| S912-600 | Quote Required | 1 Limited Stock | $6,568.60 | EA | 0.28 lb/ft | Polyurethane | 135 °F | -40 °F | Parflex Division | 600 ft | Fiber | 3/4 inch | Copolyester | -12 | HY Series | 102 mm | Cleaning (Sewers) | Water | 207 bar | 1.160 inch | 4:1 | 0.750 | 3,000 | 600 | ||
| S916 | Quote Required | TBD | 0.41 | Polyurethane | 135 | -40 | Parflex Division | View Part Details. | Fiber | 1 | Copolyester | -16 | HY Series | 8 | Sewer Lines | Water | 3000 | 1.480 | 4:1 | 1 | random lengths | |||||
| S916-400 | Quote Required | TBD | 0.61 kg/m | Polyurethane | 135 °F | -40 °C | Parflex Division | 400 ft | Fiber | 1 inch | Copolyester | -16 | SQ Series | 203 mm | Cleaning (Sewers) | Water | 20.7 MPa | 37.6 mm | 4:1 | 1 | 3,000 | 400 | ||||
| S916-500 | Quote Required | TBD | 0.61 kg/m | Polyurethane | 135 °F | -40 °C | Parflex Division | 500 ft | Fiber | 1 inch | Copolyester | -16 | SQ Series | 8 inch | Sewer Lines | Water | 3000 psi | 1.480 inch | 4:1 | 1 | 3,000 | 500 | ||||
| S916-600 | Quote Required | 1 Limited Stock | $7,345.96 | EA | 0.61 kg/m | Polyurethane | 57 °C | -40 °F | Parflex Division | 600 ft | Fiber | 25 mm | Copolyester | -16 | HY Series | 203 mm | Cleaning (Sewers) | Water | 20.7 MPa | 1.480 inch | 4:1 | 1 | 3,000 | 600 | ||
| S916-800 | Quote Required | TBD | 0.61 kg/m | Polyurethane | 57 °C | -40 °C | Parflex Division | 800 ft | Fiber | 25 mm | Copolyester | -16 | HY Series | 203 mm | Sewer Lines | Water | 207 bar | 37.6 mm | 4:1 | 1 | 3,000 | 800 |
