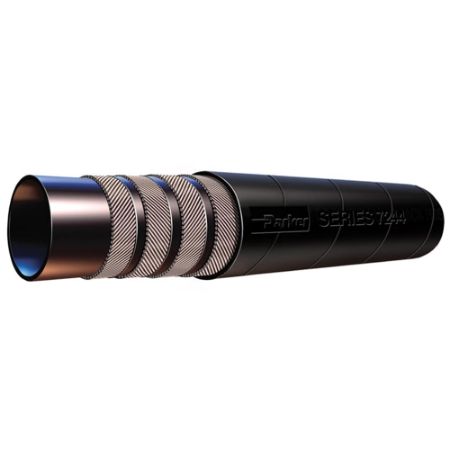

Sand Blast Hose, Series 7244

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series 7244 Sand Blast Hose provides excellent heavy duty service across multiple medium pressure blasting and transfer applications. The thick rubber tube provides additional resistance to sand and other abrasive materials going through the hose, and dissipates static electrical charge for operator safety. The thick hose wall provides kink resistance for unimpeded flow, and resistance to abrasion and weathering for maximum performance. Series 7244 is available in 200-foot continuous lengths, subject to minimum order quantity and quoted pricing.

Markets:
• Construction
• General Industrial

Features/Benefits:
• Tube: Black natural rubber for superior abrasion resistance to 160°F
• Reinforcement: Multiple textile plies for strength and durability
• Cover: Black synthetic rubber for resistance to abrasion, cuts, gouging, scuffs and weathering.

Applications:
- media
• Abrasive materials
• Sand
- usage
• Cleaning
• Conditioning
• Stripping
• Construction sites
• Highway maintenance
• Shipyards

Safety/Technical:
• Design Factor: 3:1

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Division	Package Type	Length per Package	Application	Cover Color	Inside Diameter	Minimum Bend Radius	Maximum Operating Temperature	Hose Reinforcement Material	Minimum Operating Temperature	Weight	Maximum Operating Pressure	Cover Structure	Media	Cover Material	Outside Diameter	Specifications Met	Hose Inner Tube Material	Hose I.D. (inch)
7244-1000	Quote Required	110 In Stock	$2.10	FT	Hose Products Division	Coil	50 ft	Material Handling	Black	1 inch	n/a	71 °C	4 Plies of Textile	-20 °F	0.95 lb	20.7 bar	Wrapped	Wet Abrasive Powders	Synthetic Rubber Blend	1.866 inch	ASME B30.27-2014	Static Dissipative	1
7244-1250	Quote Required	Quote Required	TBD		Hose Products Division	Coil	50 ft	Material Handling	Black	31.8 mm	n/a	71 °C	4 Plies of Textile	-20 °F	1.12 lb	300 psi	Wrapped	Dry Abrasive Powders (Sand)	Synthetic Rubber Blend	2.118 inch	ASME B30.27-2014	Natural Rubber (NR)	1-1/4
7244-1500	Quote Required	Quote Required	TBD		Hose Products Division	Coil	50 ft	Material Handling	Black	38.1 mm	n/a	160 °F	4 Plies of Textile	-29 °C	0.58 kg	20.7 bar	Wrapped	Dry Abrasive Powders (Sand)	Synthetic Rubber Blend	2.366 inch	ASME B30.27-2014	Natural Rubber (NR)	1-1/2
7244-2000	Quote Required	Quote Required	TBD		Hose Products Division	Coil	50 ft	Material Handling	Black	50.8 mm	n/a	71 °C	4 Plies of Textile	-20 °F	1.61 lb	300 psi	Wrapped	Dry Abrasive Powders (Sand)	Synthetic Rubber Blend	2.866 inch	ASME B30.27-2014	Black	2
7244-500	Quote Required	81 In Stock	TBD	FT	Hose Products Division	Coil	50 ft	Material Handling	Black	12.7 mm	n/a	160 °F	2 Plies of Textile	-29 °C	0.15 kg	20.7 bar	Wrapped	Wet Abrasive Powders	Synthetic Rubber Blend	1.051 inch	ASME B30.27-2014	Natural Rubber (NR)	1/2
7244-750	Quote Required	144 In Stock	TBD	FT	Hose Products Division	Coil	50 ft	Material Handling	Black	19.1 mm	n/a	71 °C	4 Plies of Textile	-20 °F	0.31 kg	20.7 bar	Wrapped	Dry Abrasive Powders (Sand)	Synthetic Rubber Blend	38.6 mm	ASME B30.27-2014	Black	3/4
