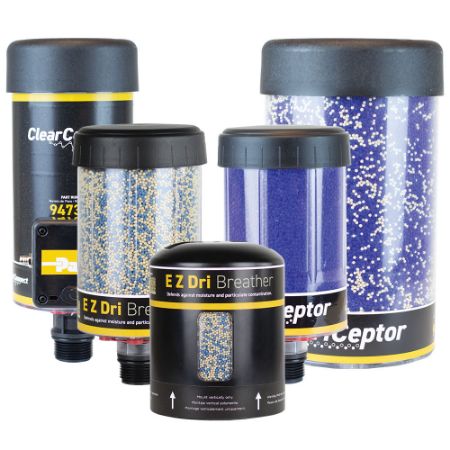

Reservoir Accessories - Desiccant Breathers
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Hydraulic and Fuel Filtration Division’s desiccant breather portfolio offers a wide selection of breather designs and desiccant types to deliver optimum performance. Reservoirs open to atmosphere are subject to an array of ambient conditions and require clean dry air on demand.
EZ Dri – Zeolite Breather
-Reduces head space Relative Humidity to as low as 5%
-Excellent temperature resistance for >100°F applications
-Color indicating beads allow visual identification for service on demand
TriCeptor – Silica Gel Breather
-Reduces head space Relative Humidity to as low as 20%
-Excellent performance in high humidity (>40% RH) environments
-Color indicating desiccant allow visual identification for service on demand
Mobile – Rugged Breather
-EZ Dri or TriCeptor options available
-Clean, dry air on demand via high flow check valves to maximize breather life
-Rugged construction to withstand the most demanding service
TriCeptor Plus – Mixed Desiccant Breather
-Clean, dry air on demand via high flow check valves to maximize breather life
-Mixed desiccant provides the ultimate application flexibility
-Reduces head space Relative Humidity to as low as 5%
-Color indicating desiccant allow visual identification for service on demand
TriCeptor Extended – Mixed Desiccant Breather
-Double the capacity of a standard breather
-Clean, dry air on demand via high flow check valves to maximize breather life
-Mixed desiccant provides the ultimate application flexibility
-Reduces head space Relative Humidity to as low as 5%
-Color indicating desiccant allow visual identification for service on demand
-Integrated oil-mist coalescer protects the desiccant from hydrocarbon contaminants
ClearConnect – Wired Relative Humidity sensor
-Relative humidity sensor provides real-time system monitoring
-Clean, dry air on demand via high flow check valves to maximize breather life
-Standard or extended sizes to meet desired service intervals
-Clear silica gel desiccant offers up to a 20% improvement in absorption capacity
Applications:
Reservoirs
Mobile Equipment
Gearboxes
Transformers
Storage Tanks
Totes
55 Gallon Drums
| Action | Part No. | Availability | Partner Available | Price | UOM | Outside Diameter | Pressure Relief Valve Type | Division | Housing Material | Maximum Operating Temperature | Installation | Minimum Operating Temperature | Filter Material | Height | Flow Rate | Connection Type | Seal Material | Special Option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 934330 | Quote Required | 56 In Stock | $108.76 | EA | 101.6 mm | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 200 °F | Screw on | -20 °F | Polyester, Zeolite (molecular sieve) | 6 in (152 mm) | 15 SCFM | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Nitrile | ||
| 934330T | 30 In Stock | 61 In Stock | $116.92 | EA | 101.6 mm | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 200 °F | Screw on | -20 °F | Polyester, silica gel | 6 in (152 mm) | 16 SCFM | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Nitrile | ||
| 934331 | Quote Required | TBD | 101.6 mm | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 200 °F | Screw on | -20 °F | Polyester, Zeolite (molecular sieve) | 8 in (203 mm) | 15 SCFM | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Nitrile | ||||
| 934331T | 13 In Stock | 116 In Stock | $136.14 | EA | 4.1 inch | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 200 °F | Screw on | -20 °F | Polyester, silica gel | 8 in (203 mm) | 16 SCFM | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Nitrile | ||
| 934332 | Quote Required | 54 In Stock | $166.64 | EA | 4.10 inch | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 200 °F | Screw on | -20 °F | Polyester, Zeolite (molecular sieve) | 10 in (254 mm) | 15 SCFM | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Nitrile | ||
| 934332T | 5 In Stock | 231 In Stock | $157.02 | EA | 101.6 mm | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 200 °F | Screw on | -20 °F | Polyester, silica gel | 10 in (254 mm) | 16 SCFM | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Nitrile | ||
| 941655 | 10 In Stock | 83 In Stock | $349.81 | EA | 5.1 inch | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate/Polybutylene Terephthalate | 300 °F | Screw on | -40 °F | Polyester, PTFE, Zeolite (molecular sieve) | 6.34 in (158.5 mm) | 15 SCFM | 1 1/2 in - 16 UN female thread | N/A | ||
| 941655T | Quote Required | 5 In Stock | $382.16 | EA | 5.1 inch | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate/Polybutylene Terephthalate | 300 °F | Screw on | -40 °F | Polyester, PTFE, silica gel | 6.34 in (158.5 mm) | 16 SCFM | 1 1/2 in - 16 UN female thread | N/A | Silicone Check Valve | |
| 947333 | Quote Required | TBD | 101.6 mm | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 200 °F | Screw on | -20 °F | Polyester, Silica Gel, Zeolite (molecular sieve) | 6 in (152 mm) | 12 SCFM | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Nitrile | Silicone Check Valve | |||
| 947334 | Quote Required | 5 In Stock | $1,394.57 | EA | 101.6 mm | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 200 °F | Screw on | -20 °F | Polyester, Silica Gel, Zeolite (molecular sieve) | 8 in (203 mm) | 11 SCFM | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Nitrile | Silicone Check Valve | |
| 947335 | Quote Required | TBD | 101.6 mm | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 200 °F | Screw on | -20 °F | Polyester, Silica Gel, Zeolite (molecular sieve) | 10 in (254 mm) | 10 SCFM | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Nitrile | Silicone Check Valve | |||
| 947336 | Quote Required | TBD | 144.0 mm | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 200 °F | Screw on | -20 °F | Polyester, Silica Gel, Zeolite (molecular sieve) | 6.4 in (163 mm) | 26 SCFM | 1 in FNPT | N/A | Silicone Check Valve | |||
| 947337 | Quote Required | TBD | 5.67 inch | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 200 °F | Screw on | -20 °F | Polyester, Silica Gel, Zeolite (molecular sieve) | 8.2 in (208 mm) | 25 SCFM | 1 in FNPT | N/A | Silicone Check Valve | |||
| 947338 | Quote Required | TBD | 144.0 mm | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 200 °F | Screw on | -20 °F | Polyester, Silica Gel, Zeolite (molecular sieve) | 10 in (254 mm) | 24 SCFM | 1 in FNPT | N/A | Silicone Check Valve | |||
| 947339 | Quote Required | TBD | 101.6 mm | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 130 °F | Screw on | -4 °F | Polyester, Clear silica gel | 10 in (254 mm) | 10 SCFM | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Nitrile | Silicone Check Valve, RH Sensor | |||
| 947340 | Quote Required | TBD | 144.0 mm | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 130 °F | Screw on | -4 °F | Polyester, Clear silica gel | 10 in (254 mm) | 24 SCFM | 1 in FNPT | N/A | Silicone Check Valve, RH Sensor | |||
| CCE10SGBM8F1 | Quote Required | TBD | 144.0 mm | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 130 °F | Screw on | -4 °F | Polyester, Clear silica gel | 10 in (254 mm) | 24 SCFM | 1 in FNPT | N/A | Silicone Check Valve, RH Sensor, Indicator | |||
| CCS10SGBM8M1 | Quote Required | TBD | 101.6 mm | Unpressurized | Engine Mobile Hydraulic and Fuel Filtration Division | Polycarbonate | 130 °F | Screw on | -4 °F | Polyester, Clear silica gel | 10 in (254 mm) | 10 SCFM | 1 in Multi-fit (NPT, NPSM, BSPT, BSPP) | Nitrile | Silicone Check Valve, RH Sensor, Indicator |
