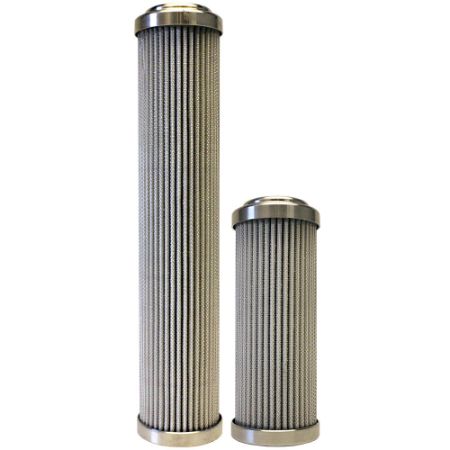

Replacement Elements - High Pressure 12S Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker 12S Series is an ultra high pressure stainless steel filter designed with the latest in filtration technology.
Using Parker 12S Series high efficiency replacement elements guarantees Parker's quality of filtration, directly impacting your system's fluid cleanliness and performance. Using knock-off aftermarket elements with unknown media quality may save initial cost, but can increase overall costs by requiring more frequent element servicing and potentially causing catastrophic system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single and Double length. All elements are rated at 2000 psid collapse, and are available in several micron ratings, (2, 5, 10, and 20 micron). These replacement elements are constructed to provide the quality of filtration that Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
Read More...Using Parker 12S Series high efficiency replacement elements guarantees Parker's quality of filtration, directly impacting your system's fluid cleanliness and performance. Using knock-off aftermarket elements with unknown media quality may save initial cost, but can increase overall costs by requiring more frequent element servicing and potentially causing catastrophic system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single and Double length. All elements are rated at 2000 psid collapse, and are available in several micron ratings, (2, 5, 10, and 20 micron). These replacement elements are constructed to provide the quality of filtration that Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | For Fluid Type | Product Type | Division | Compatible Series | Length | Filter Element Type | Micron Rating | Seal Material | Efficiency βx(C) ≥ 1000 | Collapse Pressure (psi) | Collapse Pressure (bar) | Seals | Pkg Qty | Media Type | Efficiency βx(C) ≥ 200 | Top Endcap Material | D Dimension | Glue Side Seam Adhesive | Parker Group | Inner Support Cylinder Material | Series | Efficiency βx(C) ≥ 200 | Media Type | Seals | E Dimension | Collapse Pressure (psi) | B Dimension | Media | A Dimension | Efficiency βx(C) ≥ 1000 | Collapse Pressure (bar) | Glue Endcaps Adhesive | Media Composition Detail | Parker Division | Bottom Endcap Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 403488 | Quote Required | $540.46/each | EA | EA | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 12S | double | Cartridge | 20QH microglass | Ethylene Propylene | 20 µ | 2000 psi | 138 bar | EPR: Ethylene Propylene | 1 | Microglass | 16 µ | Stainless steel | 1.689 in (42.9 mm) | Epoxy | Filtration | Stainless steel (wrapped) | ParFit | 16 µ | Microglass | EPR: Ethylene Propylene | 1.031 in (26.2 mm) | 2000 psi | 0.941 in (23.9 mm) | 20 Micron Absolute | 1.689 in (42.9 mm) | 20 µ | 138 bar | Epoxy | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | Hydraulic Filter | Stainless steel | ||
| 937441 | Quote Required | $481.32/each | EA | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 12S | single | Cartridge w/ bypass | 10QH microglass | Fluorocarbon |
