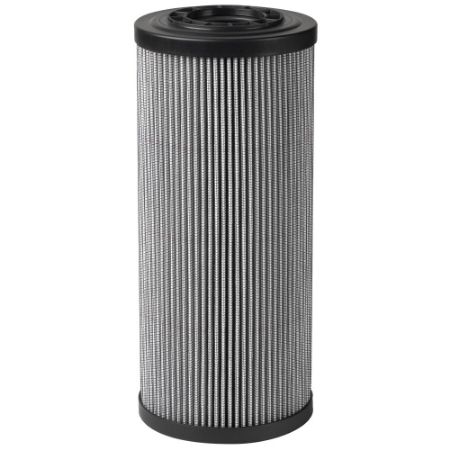

Replacement Elements - HF2/HF3/HF4
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Designed to meet the very specialized requirements of the automotive industry, utilizing the same, high quality, high efficiency Microglass media as fitted to the standard filters. Microglass media available as 3, 5, 10 or 20 micron (ßx ≥ 200). Media is supported both up and downstream and the whole assembly is bonded resulting in a 20 bar collapse rating. End caps and support tube are tin plated giving excellent corrosion protection.
HF2 4” and 8” Long. 3, 5, and 10 micron element with ß ≥ 200 and dual stage filtering media for up to 40% increased dirt holding capacity.
HF3 8” Long. 3, 5, and 10 micron element with b ≥ 200 and dual stage filtering media for up to 40% increased dirt holding capacity.
HF4 10", 20", and 30" Long. 3, 5, and 10 micron with ß ≥ 200 and dual stage filtering media for up to 40% increased dirt holding capacity.
Read More...HF2 4” and 8” Long. 3, 5, and 10 micron element with ß ≥ 200 and dual stage filtering media for up to 40% increased dirt holding capacity.
HF3 8” Long. 3, 5, and 10 micron element with b ≥ 200 and dual stage filtering media for up to 40% increased dirt holding capacity.
HF4 10", 20", and 30" Long. 3, 5, and 10 micron with ß ≥ 200 and dual stage filtering media for up to 40% increased dirt holding capacity.
| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Product Type | Product Style | Seal Material | Division | Media Material | Length | Filter Element Type | Micron Rating | Options | Seals | Media Type | Efficiency βx(C) ≥ 200 | Media | Collapse Pressure (psi) | Collapse Pressure (bar) | Pkg Qty | Efficiency βx(C) ≥ 1000 | Efficiency βx(C) ≥ 1000 | Bottom Endcap Material | Glue Endcaps Adhesive | Parker Division | Media Type | Parker Group | Seals | Glue Side Seam Adhesive | B Dimension | Competitor | Collapse Pressure (psi) | Collapse Pressure (bar) | D Dimension | Top Endcap Material | Efficiency βx(C) ≥ 200 | Series | E Dimension | Inner Support Cylinder Material | Media Composition Detail | Media |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HF21L10VQ | Quote Required | 13 In Stock | $56.07/each | EA | Hydraulic Filter Element | Hydraulic Filter | Fluorocarbon | Engine Mobile Hydraulic and Fuel Filtration Division | Multilayered microglass with epoxy coated mesh support | single | HF2 Cartridge | 10 Micron Absolute | Standard Collapse | ||||||||||||||||||||||||||||||
| HF31L10VQ | Quote Required | 1 Limited Stock | $98.19/each | EA | Hydraulic Filter Element | Hydraulic Filter | Fluorocarbon | Engine Mobile Hydraulic and Fuel Filtration Division | Multilayered microglass with epoxy coated mesh support | single | HF3 Cartridge | 10 Micron Absolute | Standard Collapse | ||||||||||||||||||||||||||||||
| HF41L10VQ | Quote Required | 22 In Stock | $73.30/each | EA | EA | Hydraulic Filter Element | Hydraulic Filter | Fluorocarbon | Engine Mobile Hydraulic and Fuel Filtration Division | Multilayered microglass with epoxy coated mesh support | single | HF4 Cartridge | 10 Micron Absolute | Standard Collapse | FKM: Fluorocarbon | Microglass | 9 µ | 10 Micron Absolute | 150 psi | 10.3 bar | 1 | 12 µ | 12 µ | Glass reinforced nylon | Epoxy | Hydraulic Filter | Microglass | Filtration | FKM: Fluorocarbon | Epoxy | 1.618 in (41.1 mm) | NORCO | 150 psi | 10.3 bar | 0.051 in (1.3 mm) | Glass reinforced nylon | 9 µ | ParFit | 9.201 in (233.7 mm) | Steel tin plated | Multilayer fiberglass with epoxy coated mesh on both sides | 10 Micron Absolute | |
| HF41L3VQ | Quote Required | 6 In Stock | $87.05/each | EA | EA | Hydraulic Filter Element | Hydraulic Filter | Fluorocarbon | Engine Mobile Hydraulic and Fuel Filtration Division | Multilayered microglass with epoxy coated mesh support | single | HF4 Cartridge | 3 Micron Absolute | Standard Collapse | FKM: Fluorocarbon | Microglass | 4 µ | 2 Micron Absolute | 150 psi | 10.3 bar | 1 | 5 µ | 5 µ | Glass reinforced nylon | Epoxy | Hydraulic Filter | Microglass | Filtration | FKM: Fluorocarbon | Epoxy | 1.618 in (41.1 mm) | NORCO | 150 psi | 10.3 bar | 0.051 in (1.3 mm) | Glass reinforced nylon | 4 µ | ParFit | 9.201 in (233.7 mm) | Steel tin plated | Multilayer fiberglass with epoxy coated mesh on both sides | 2 Micron Absolute | |
| HF41L5VQ | Quote Required | 9 In Stock | $82.01/each | EA | EA | Hydraulic Filter Element | Hydraulic Filter | Fluorocarbon | Engine Mobile Hydraulic and Fuel Filtration Division | Multilayered microglass with epoxy coated mesh support | single | HF4 Cartridge | 5 Micron Absolute | Standard Collapse | FKM: Fluorocarbon | Microglass | 5 µ | 5 Micron Absolute | 150 psi | 10.3 bar | 1 | 7 µ | 7 µ | Glass reinforced nylon | Epoxy | Hydraulic Filter | Microglass | Filtration | FKM: Fluorocarbon | Epoxy | 1.618 in (41.1 mm) | BENNETT | 150 psi | 10.3 bar | 0.051 in (1.3 mm) | Glass reinforced nylon | 5 µ | ParFit | 9.201 in (233.7 mm) | Steel tin plated | Multilayer fiberglass with epoxy coated mesh on both sides | 5 Micron Absolute | |
| HF42H10VQ | Quote Required | $388.48/each | EA | EA | Hydraulic Filter Element | Hydraulic Filter | Fluorocarbon | Engine Mobile Hydraulic and Fuel Filtration Division | Multilayered microglass with epoxy coated mesh support | double | HF4 Cartridge | 10 Micron Absolute | High Collapse | FKM: Fluorocarbon | Microglass | 9 µ | 10 Micron Absolute | 2000 psi | 138 bar | 1 | 12 µ | 12 µ | Black anodized aluminum | Epoxy | Hydraulic Filter | Microglass | Filtration | FKM: Fluorocarbon | Epoxy | 1.618 in (41.1 mm) | EPPENSTEINER | 2000 psi | 138 bar | 0.051 in (1.3 mm) | Black anodized aluminum | 9 µ | ParFit | 18.642 in (473.5 mm) | Steel tin plated | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | 10 Micron Absolute |
