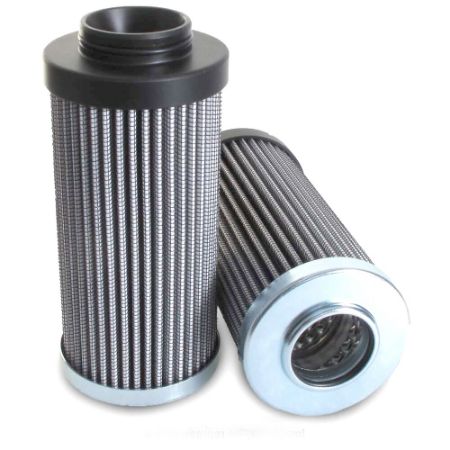

Replacement Elements - FTA/FTB/FTC Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Tank Top mounted return filters, with low installed height, surge responsive bypass valve and simple one-piece element removal.
These hydraulic filters are ideal for mobile or industrial applications and are available with integral fill port, breather, dipstick and bowl adaptors.
Applications
• Mobile Equipment
• Construction
• Industrial Power Units
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
Read More...These hydraulic filters are ideal for mobile or industrial applications and are available with integral fill port, breather, dipstick and bowl adaptors.
Applications
• Mobile Equipment
• Construction
• Industrial Power Units
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Division | Filter Element Type | Diameter | For Use With | Size | Length | Micron Rating | Seal Material | Media | Collapse Pressure (psi) | Pkg Qty | Collapse Pressure (bar) | Efficiency βx(C) ≥ 1000 | Efficiency βx(C) ≥ 200 | Seals | Media Type | E Dimension | Collapse Pressure (bar) | Inner Support Cylinder Material | Media | A Dimension | Parker Group | Seals | C Dimension | Glue Side Seam Adhesive | Collapse Pressure (psi) | Glue Endcaps Adhesive | B Dimension | Efficiency βx(C) ≥ 1000 | Bottom Endcap Material | Media Composition Detail | Efficiency βx(C) ≥ 200 | Top Endcap Material | Parker Division | D Dimension | Media Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FTAE1B05Q | Quote Required | $121.42/each | EA | Hydraulic & Industrial Process Filtration Division EMEA | 05Q Microglass | 45 mm | FTA | Length 1 | 118 mm | 5 µm | Fluoroelastomer | ||||||||||||||||||||||||||||||||
| FTAE1B10Q | Quote Required | 15 In Stock | $94.66/each | EA | EA | Hydraulic & Industrial Process Filtration Division EMEA | 10Q Microglass | 45 mm | FTA | Length 1 | 118 mm | 10 µm | Fluoroelastomer | 10 Micron Absolute | 150 psi | 1 | 10.3 bar | 12 µ | 9 µ | FKM: Fluorocarbon | Microglass | 4.661 in (118.4 mm) | 10.3 bar | Steel tin plated | 10 Micron Absolute | 1.78 in (45.2 mm) | Filtration | FKM: Fluorocarbon | 1.024 in (26 mm) | Epoxy | 150 psi | Epoxy | 1.024 in (26 mm) | 12 µ | Glass reinforced nylon | Multilayer fiberglass with epoxy coated mesh on both sides | 9 µ | Glass reinforced nylon | Hydraulic Filter | 1.78 in (45.2 mm) | Microglass | ParFit | |
| FTAE1B20Q | Quote Required | $88.81/each | EA | EA | Hydraulic & Industrial Process Filtration Division EMEA | 20Q Microglass | 45 mm | FTA | Length 1 | 118 mm | 20 µm | Fluoroelastomer | 20 Micron Absolute | 150 psi | 1 | 10.3 bar | 20 µ | 16 µ | FKM: Fluorocarbon | Microglass | 4.661 in (118.4 mm) | 10.3 bar | Steel tin plated | 20 Micron Absolute | 1.78 in (45.2 mm) | Filtration | FKM: Fluorocarbon | 1.024 in (26 mm) | Epoxy | 150 psi | Epoxy | 1.024 in (26 mm) | 20 µ | Glass reinforced nylon | Multilayer fiberglass with epoxy coated mesh on both sides | 16 µ | Glass reinforced nylon | Hydraulic Filter | 1.78 in (45.2 mm) | Microglass | ParFit | ||
| FTAE2B10Q | Quote Required | 18 In Stock | $118.54/each | EA | EA | Hydraulic & Industrial Process Filtration Division EMEA | 10Q Microglass | 45 mm | FTA | Length 2 | 211 mm | 10 µm | Fluoroelastomer | 10 Micron Absolute | 150 psi | 1 | 10.3 bar | 12 µ | 9 µ | FKM: Fluorocarbon | Microglass | 8.382 in (212.9 mm) | 10.3 bar | Steel tin plated | 10 Micron Absolute | 1.78 in (45.2 mm) | Filtration | FKM: Fluorocarbon | 1.024 in (26 mm) | Epoxy | 150 psi | Epoxy | 1.024 in (26 mm) | 12 µ | Glass reinforced nylon | Multilayer fiberglass with epoxy coated mesh on both sides | 9 µ | Glass reinforced nylon | Hydraulic Filter | 1.78 in (45.2 mm) | Microglass | ParFit | |
| FTAE2B20Q | Quote Required | TBD | EA | Hydraulic & Industrial Process Filtration Division EMEA | 20Q Microglass | 45 mm | FTA | Length 2 | 211 mm | 20 µm | Fluoroelastomer | ||||||||||||||||||||||||||||||||
| FTBE1B10Q | Quote Required | 56 In Stock | $141.11/each | EA | Hydraulic & Industrial Process Filtration Division EMEA | 10Q Microglass | 62 mm | FTB | Length 1 | 140 mm | 10 µm | Fluoroelastomer | |||||||||||||||||||||||||||||||
| FTBE1B20Q | Quote Required | 1 Limited Stock | TBD | EA | Hydraulic & Industrial Process Filtration Division EMEA | 20Q Microglass | 62 mm | FTB | Length 1 | 140 mm | 20 µm | Fluoroelastomer | |||||||||||||||||||||||||||||||
| FTBE2B05Q | Quote Required | 14 In Stock | $180.65/each | EA | Hydraulic & Industrial Process Filtration Division EMEA | 05Q Microglass | 62 mm | FTB | Length 2 | 243 mm | 5 µm | Fluoroelastomer | |||||||||||||||||||||||||||||||
| FTBE2B10Q | 12 In Stock | 43 In Stock | $167.48/each | EA | Hydraulic & Industrial Process Filtration Division EMEA | 10Q Microglass | 62 mm | FTB | Length 2 | 243 mm | 10 µm | Fluoroelastomer | |||||||||||||||||||||||||||||||
| FTCE1B10Q | 12 In Stock | 39 In Stock | $195.16/each | EA | Hydraulic & Industrial Process Filtration Division EMEA | 10Q Microglass | 95 mm | FTC | Length 1 | 204 mm | 10 µm | Fluoroelastomer | |||||||||||||||||||||||||||||||
| FTCE2B10Q | 13 In Stock | 19 In Stock | $218.72/each | EA | Hydraulic & Industrial Process Filtration Division EMEA | 10Q Microglass | 95 mm | FTC | Length 2 | 324 mm | 10 µm | Fluoroelastomer |
