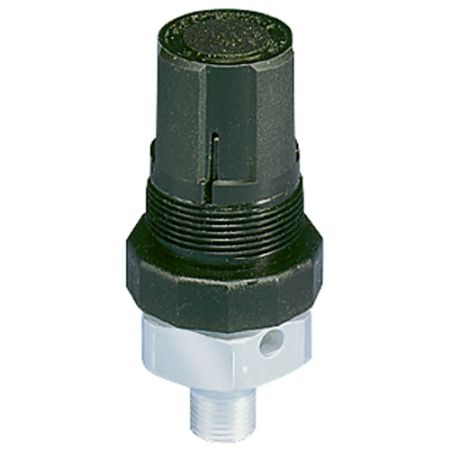

Relief Valves - 130 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The 130 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. This compact, sensitive diaphragm-type relief valve can be used where gradual proportional relief is required. It contains a top adjustment knob that adjusts relief range, same as a miniature regulator. There are four spring ranges (0-15, 0-25, 0-50 and 0-100 PSIG) available.
Markets:
• Factory Automation
• Heavy Industries
Features/Benefits:
• Compact design saves space
• Top adjustment knob
• Durable brass body
• Protects pneumatic circuit or system
Applications:
• Industrial environment
• General pneumatic assembly
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Port Size | Body Material | Port Type | Adjustment Mechanism | Operating Temperature | Pressure Relief Setting | Adjustment Screw Material | Maximum Inlet Pressure Rating | Available Accessories | Pressure Relief Setting (psig) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 130-02A | Quote Required | $43.53 | EA | Pneumatic Division | 1/4 | Aluminum | Male<br>NPT │ BSPP | Polypropylene Push-Pull Locking Knob | +4° to +49° °C | 0 to 100 psig | Zinc Plated Steel Adjusting Screw and Spring | 20.7 barg | W/O panel mount nut | 0-25 | ||
| 130-02AA | Quote Required | $46.66 | EA | Pneumatic Division | 1/4 | Aluminum | Male<br>NPT │ BSPP | Polypropylene Push-Pull Locking Knob | +4° to +49° °C | 0 to 100 psig | Zinc Plated Steel Adjusting Screw and Spring | 300 psig | W/O panel mount nut | 0-15 | ||
| 130-02AAP | Quote Required | $49.43 | EA | Pneumatic Division | 1/4 | Aluminum | Male<br>NPT │ BSPP | Polypropylene Push-Pull Locking Knob | +4° to +49° °C | 0 to 6.9 barg | Zinc Plated Steel Adjusting Screw and Spring | 20.7 barg | With panel mount nut | 0-15 | ||
| 130-02AP | Quote Required | $46.30 | EA | Pneumatic Division | 1/4 | Aluminum | NPT (Male)│BSPP¦(Male) | Polypropylene Push-Pull Locking Knob | 40 to 120 | 0 to 100 | Steel, Zinc-plated (adjusting screw and spring) | 300 | With panel mount nut | 0-25 | ||
| 130-02B | Quote Required | TBD | Pneumatic Division | 1/4 | Aluminum | NPT (Male)│BSPP¦(Male) | Polypropylene Push-Pull Locking Knob | 40 to 120 | 0 to 100 | Steel, Zinc-plated (adjusting screw and spring) | 300 | W/O panel mount nut | 0-50 | |||
| 130-02BP | Quote Required | $46.31 | EA | Pneumatic Division | 1/4 | Aluminum | Male<br>NPT │ BSPP | Polypropylene Push-Pull Locking Knob | +40° to +120° °F | 0 to 6.9 barg | Zinc Plated Steel Adjusting Screw and Spring | 20.7 barg | With panel mount nut | 0-50 | ||
| 130-02C | Quote Required | 4 In Stock | $43.53 | EA | Pneumatic Division | 1/4 | Aluminum | NPT (Male)│BSPP¦(Male) | Polypropylene Push-Pull Locking Knob | 40 to 120 | 0 to 100 | Steel, Zinc-plated (adjusting screw and spring) | 300 | W/O panel mount nut | 0-100 | |
| 130-02CP | Quote Required | $46.31 | EA | Pneumatic Division | 1/4 | Aluminum | Male<br>NPT │ BSPP | Polypropylene Push-Pull Locking Knob | +40° to +120° °F | 0 to 100 psig | Zinc Plated Steel Adjusting Screw and Spring | 20.7 barg | With panel mount nut | 0-100 |
