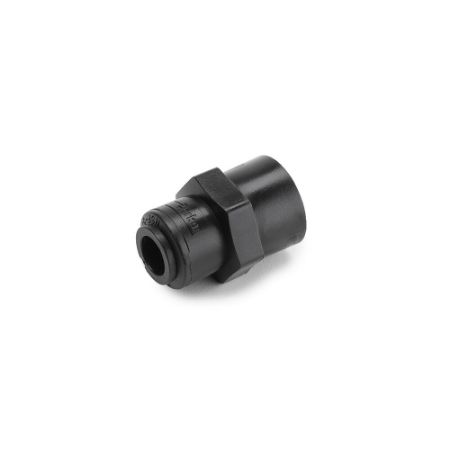

Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s TrueSeal thermoplastic push fit fittings are lightweight, field attachable and quickly connect to tubing without the use of tools. TrueSeal is a robust push-to-connect fitting ideal for water treatment and harsh chemical environments. Available in Acetal, Polypropylene and Kynar, TrueSeal fittings offer FDA and NSF 51 compliance; NSF 61 compliance in gray Acetal. TrueSeal in Acetal and Polypropylene has an EPDM seal, Kynar has a fluorocarbon seal. The gripping ring in TrueSeal is available with either a stainless-steel bite edge or an engineered thermoplastic bite edge.
Use with Parker Parflex Division tubing:
• Polyethylene
• Polypropylene
• Nylon
• Vinyl
• Fluoropolymer
• Polyurethane
• Kynar
Markets:
• Food
• Potable water
• Chemical
• Filtration
• Beverage
Features and Benefits:
• Gripping teeth available in stainless steel or with and engineered thermoplastic bite edge
• Acetal, Polypropylene and Kynar body material
• Engineered O-ring increases seal compression on tube
• EPDM seal in Acetal and Polypropylene, fluorocarbon in Kynar material
• FDA Compliant
• All fittings are NSF-51 listed
• Gray Acetal fittings are NSF-61
• 1/4" - 1/2" tube size
• NPT threads
• Push button release
• Use with Polyethylene, Polypropylene, Nylon, Vinyl, Fluoropolymer, Polyurethane, Kynar
Applications:
• Air
• Water
• Reverse Osmosis
• Beer & wine
• Dispensing systems
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | Maximum Operating Temperature | Body Material | Minimum Operating Temperature | Specifications Met | Seal Material | Maximum Operating Pressure | Division | Connection 1 Size | Connection 2 Size | Color | Connection 2 Type | Shape | Configuration | Connection 1 Type | Body Material | Product Style | Dimensional Weight | Connection 3 Type | Connection 3 Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A4BU4-MG | Quote Required | 140 In Stock | $4.14/each | 180 °F | Acetal | -20 °F | NSF/ANSI/CAN 61 | EPDM (O-Ring) | 300 psi | Fluid System Connectors Division | 1/4" | 1/4" | Gray | Push-to-Connect | Union - Bulkhead | Tube to Tube | Push-to-Connect | Acetal | |||||
| A4CAP-MG | 5 In Stock | 95 In Stock | $3.28/each | 82.2 °C | Acetal | -29 °C | NSF/ANSI/CAN 61 | EPDM (O-Ring) | 20 bar | Fluid System Connectors Division | 1/4" | Gray | Push-to-Connect | Acetal | Cap | ||||||||
| A4EU4-MG | 1 Limited Stock | 72 In Stock | $2.42/each | 82.2 °C | Acetal | -20 °F | FDA | EPDM (O-Ring) | 20 bar | Fluid System Connectors Division | 1/4" | 1/4" | Gray | Push-to-Connect | Elbow 90° | Tube to Tube | Push-to-Connect | Acetal | 0.2914 lb | ||||
| A4FC2-MG | Quote Required | 10 In Stock | $3.17/each | 82.2 °C | Acetal | -20 °F | NSF/ANSI/CAN 61 | EPDM (O-Ring) | 300 psi | Fluid System Connectors Division | 1/4" | 1/8" | Gray | Female NPT | Tube to Female Pipe | Push-to-Connect | Acetal | Connector | |||||
| A4FC4-MG | 2 Limited Stock | 57 In Stock | $3.31/each | 180 | Acetal | -20 | FDA | EPDM (O-Ring) | 300 | Fluid System Connectors Division | 1/4" | 1/4" | Gray | Female NPT | Tube to Female Pipe | Push-to-Connect | Acetal | Connector | 0.2914 | ||||
| A4FE4-MG | Quote Required | 66 In Stock | $3.83/each | 82.2 °C | Acetal | -20 °F | NSF/ANSI 51 | EPDM (O-Ring) | 300 psi | Fluid System Connectors Division | 1/4" | 1/4" | Gray | Female NPT | Elbow 90° | Tube to Female Pipe | Push-to-Connect | Acetal | 0.2914 lb | ||||
| A4FF4-MG | 5 In Stock | 6 In Stock | $3.37/each | 82.2 °C | Acetal | -20 °F | NSF/ANSI 51 | EPDM (O-Ring) | 300 psi | Fluid System Connectors Division | 1/4" | 7/16"-20 | Gray | UNS-2B Straight | Tube to Female Flare | Push-to-Connect | Acetal | Connector | |||||
| A4MC2-MG | Quote Required | 181 In Stock | $1.44/each | 180 °F | Acetal | -20 °F | FDA | EPDM (O-Ring) | 20 bar | Fluid System Connectors Division | 1/4" | 1/8" | Gray | Male NPT | Tube to Pipe | Push-to-Connect | Acetal | Connector | 0.1335 lb | ||||
| A4MC4-MG | 1 Limited Stock | 659 In Stock | $1.56/each | 180 °F | Acetal | -20 °F | NSF/ANSI/CAN 61 | EPDM (O-Ring) | 300 psi | Fluid System Connectors Division | 1/4" | 1/4" | Gray | Male NPT | Tube to Pipe | Push-to-Connect | Acetal | Connector | 0.1781 lb | ||||
| A4MC6-MG | 9 In Stock | 66 In Stock | $2.76/each | 82.2 °C | Acetal | -20 °F | NSF/ANSI 51 | EPDM (O-Ring) | 300 psi | Fluid System Connectors Division | 1/4" | 3/8" | Gray | Male NPT | Tube to Pipe | Push-to-Connect | Acetal | Connector | 0.1781 lb | ||||
| A4ME2-MG | 1 Limited Stock | 5 In Stock | $2.13/each | 82.2 °C | Acetal | -29 °C | NSF/ANSI/CAN 61 | EPDM (O-Ring) | 300 psi | Fluid System Connectors Division | 1/4" | 1/8" | Gray | Male NPT | Elbow 90° | Tube to Pipe | Push-to-Connect | Acetal | 0.1335 lb | ||||
| A4ME4-MG | Quote Required | 298 In Stock | $2.40/each | 82.2 °C | Acetal | -20 °F | NSF/ANSI 51 | EPDM (O-Ring) | 20 bar | Fluid System Connectors Division | 1/4" | 1/4" | Gray | Male NPT | Elbow 90° | Tube to Pipe | Push-to-Connect | Acetal | 0.0117 lb | ||||
| A4MES2-MG | Quote Required | 162 In Stock | $3.44/each | 82.2 °C | Acetal | -20 °F | NSF/ANSI 51 | EPDM (O-Ring) | 20 bar | Fluid System Connectors Division | 1/4" | 1/8" | Gray | Male NPT | Elbow 90° - Swivel | Tube to Pipe | Push-to-Connect | Acetal | 0.1781 lb | ||||
| A4MES4-MG | 2 Limited Stock | 1 Limited Stock | $3.44/each | 82.2 °C | Acetal | -29 °C | NSF/ANSI 51 | EPDM (O-Ring) | 20 bar | Fluid System Connectors Division | 1/4" | 1/4" | Gray | Male NPT | Elbow 90° - Swivel | Tube to Pipe | Push-to-Connect | Acetal | 0.1781 lb | ||||
| A4TMC2 | 5 In Stock | 55 In Stock | $0.79/each | 82.2 °C | Acetal | -29 °C | NSF/ANSI 51 | EPDM (O-Ring) | 20 bar | Fluid System Connectors Division | 1/4" | 1/8" | Gray | Male NPT | Tube Stem to Pipe | Push-to-Connect | Acetal | Connector | |||||
| A4TMC4 | Quote Required | 37 In Stock | $0.82/each | 180 °F | Acetal | -20 °F | NSF/ANSI/CAN 61 | EPDM (O-Ring) | 300 psi | Fluid System Connectors Division | 1/4" | 1/4" | Gray | Male NPT | Tube Stem to Pipe | Push-to-Connect | Acetal | Connector | 0.1781 lb | ||||
| A4TPL | Quote Required | 51 In Stock | $0.68/each | 180 °F | Acetal | -20 °F | NSF/ANSI 51 | EPDM (O-Ring) | 20 bar | Fluid System Connectors Division | 1/4" | Gray | Push-to-Connect | Acetal | Plug | 0.0647 lb | |||||||
| A4TU4-MG | 15 In Stock | 133 In Stock | $3.66/each | 82.2 °C | Acetal | -20 °F | NSF/ANSI 51 | EPDM (O-Ring) | 300 psi | Fluid System Connectors Division | 1/4" | 1/4" | Gray | Push-to-Connect | Tee | Tube to Tube | Push-to-Connect | Acetal | 0.2914 lb | Push-to-Connect | 1/4" | ||
| A4UC4-MG | Quote Required | 290 In Stock | $2.49/each | 82.2 °C | Acetal | -20 °F | NSF/ANSI/CAN 61 | EPDM (O-Ring) | 20 bar | Fluid System Connectors Division | 1/4" | 1/4" | Gray | Push-to-Connect | Union | Tube to Tube | Push-to-Connect | Acetal | 0.2914 lb | ||||
| A5TMC2 | Quote Required | $2.66/each | 180 °F | Acetal | -29 °C | FDA | EPDM (O-Ring) | 20 bar | Fluid System Connectors Division | 5/16" | 1/8" | Gray | Male NPT | Tube Stem to Pipe | Push-to-Connect | Acetal | Connector |
