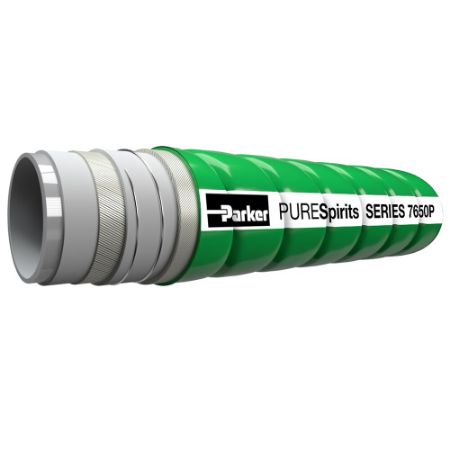

PURESpirits Hose Series 7650P

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

As part of Parker’s PURE™ Food and Beverage Hose line, PURESpirits Series 7650P is a high quality, low permeation, flexible delivery and suction hose. Our color coded hose allows for simple product selection and is built to withstand harsh processing applications, where hoses are subject to multiple cycles of sanitary cleaning methods, like clean-in-place (CIP) a simplification process using aggressive cleaning agents and high temperatures to maintain sanitary conditions. Produced on stainless steel mandrels the clean innertube is made of FDA-compliant materials and applied in a seamless manner to eliminate voids or gaps where bacteria could accumulate. Series 7650P is designed to convey alcohol/spirits (concentration up to 96%), beer, wine, and chemicals. Tube consists of premium UHMWPE materials.
Markets:
•Food & Beverage
Features/Benefits:
•PURE hose is color coded for simple product selection
•FDA compliant innertube
•Low permeation
Applications:
•Alcohol/ spirits (concentration up to 96%)
•Beer
•Wine
•Chemicals

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Division	Maximum Operating Temperature	Specifications Met	Maximum Operating Pressure	Minimum Burst Pressure	Inside Diameter	Hose Inner Tube Material	Application	Minimum Operating Temperature	Media	Weight	Cover Material	Outside Diameter	Minimum Bend Radius	Vacuum Pressure Rating	Hose Reinforcement Material	Hose I.D. (inch)	Hose O.D. (inch)	Meets Industry Specifications	Application
7650P-0750	Quote Required	Quote Required	TBD		Hose Products Division	100 °C	CE	150 psi	30 bar	19 mm	Ultra High Molecular Weight Polyethylene (UHMWPE)	Spirits	-35 °C	Food & Beverage (Beer)	0.89 kg/m	Low Friction Material	31.5 mm	4.33 inch	90 kPa	Galvanized Wire Helix	0.75	1.25	FDA, DM, CE, 3A,MHLW, REACH, GMP	Beverage Transfer
7650P-1000	Quote Required	Quote Required	TBD		Hose Products Division	212 °F	3A	150 psi	450 psi	25.4 mm	Ultra High Molecular Weight Polyethylene (UHMWPE)	Beverage (Beer)	-35 °C	Food & Beverage (Wine)	0.8 kg/m	Low Friction Material	37 mm	100 mm	90 kPa	Galvanized Wire Helix	1	1.46	FDA, DM, CE, 3A,MHLW, REACH, GMP	Beverage Transfer
7650P-1500	Quote Required	Quote Required	TBD		Hose Products Division	212 °F	FDA	10 bar	30 bar	38 mm	Phtalates Free	Beverage (Wine)	-35 °C	Food & Beverage (Spirits)	1.14 kg/m	Low Friction Material	50 mm	150 mm	26.5 Inch-Hg	Synthetic Plies	1.5	1.97	FDA, DM, CE, 3A,MHLW, REACH, GMP	Beverage Transfer
7650P-2000	Quote Required	Quote Required	TBD		Hose Products Division	100 °C	DM	150 psi	30 bar	51 mm	Phtalates Free	Spirits	-35 °C	Chemicals	1.21 lb/ft	Low Friction Material	65 mm	200 mm	26.5 Inch-Hg	Synthetic Plies	2	2.56	FDA, DM, CE, 3A,MHLW, REACH, GMP	Beverage Transfer
7650P-3000	Quote Required	61 In Stock	$59.10	FT	Hose Products Division	212 °F	DM	10 bar	30 bar	76 mm	Phtalates Free	Spirits	-31 °F	Chemicals	1.88 lb/ft	Low Friction Material	91.0 mm	13.78 inch	26.5 Inch-Hg	Galvanized Wire Helix	3	3.58	FDA, DM, CE, 3A,MHLW, REACH, GMP	Beverage Transfer
7650P-4000	Quote Required	Quote Required	TBD		Hose Products Division	212 °F	DM	150 psi	450 psi	102 mm	Phtalates Free	Beverage (Wine)	-35 °C	Food & Beverage (Beer)	3.67 kg/m	Low Friction Material	117 mm	19.69 inch	26.5 Inch-Hg	Galvanized Wire Helix	4	4.61	FDA, DM, CE, 3A,MHLW, REACH, GMP	Beverage Transfer
