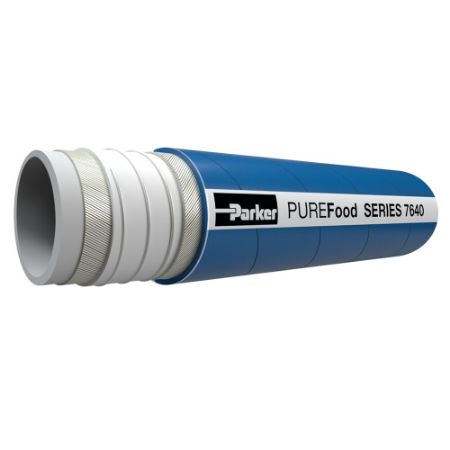

PUREFood Hose Series 7640
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
As part of Parker’s PURE Food and Beverage Hose line, PUREFood Series 7640 is a high quality and flexible delivery and suction hose. Our color coded hose allows for simple product selection and is built to withstand harsh processing applications, where hoses are subject to multiple cycles of sanitary cleaning methods, like clean-in-place (CIP) a simplification process using aggressive cleaning agents and high temperatures to maintain sanitary conditions. Produced on stainless steel mandrels the clean innertube is made of FDA-compliant materials and applied in a seamless manner to eliminate voids or gaps where bacteria could accumulate. This series is designed to convey cooking oils and fat, dairy products, and oily sauces. The tube material consists of premium nitrile (NBR). Series 7640 is also offered with a PRO corrugated cover (Series 7640P) containing an additional external thermoplastic helix.
Markets:
•Food & Beverage
Features/Benefits:
•PURE hose is color coded for simple product selection
•FDA compliant innertube
•Smooth, high-grade vulcanized rubber cover
Applications:
•cooking oils & fat
•dairy products
•oily sauces
Read More...Markets:
•Food & Beverage
Features/Benefits:
•PURE hose is color coded for simple product selection
•FDA compliant innertube
•Smooth, high-grade vulcanized rubber cover
Applications:
•cooking oils & fat
•dairy products
•oily sauces
| Action | Part No. | Availability | Partner Available | Price | Division | Maximum Operating Temperature | Specifications Met | Maximum Operating Pressure | Cover Structure | Inside Diameter | Hose Inner Tube Material | Weight | Outside Diameter | Application | Minimum Operating Temperature | Media | Minimum Bend Radius | Minimum Burst Pressure | Vacuum Pressure Rating | Hose Reinforcement Material | Hose I.D. (inch) | Hose O.D. (inch) | Meets Industry Specifications | Application |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7640-1000 | Quote Required | TBD | Hose Products Division | 176 °F | CE | 150 psi | Smooth | 25.4 mm | White | 0.61 lb/ft | 37 mm | Dairy Products | -25 °C | Food & Beverage (Dairy Products) | 3.35 inch | 450 psi | 90 kPa | Galvanized Wire Helix | 1 | 1.46 | FDA, BFR, DM, MHLW, CE, 3A, REACH | Food Transfer | ||
| 7640-1500 | Quote Required | TBD | Hose Products Division | 176 °F | FDA | 10 bar | Smooth | 38 mm | Phtalates Free | 0.94 lb/ft | 51 mm | Cooking Oils & Fat | -13 °F | Food & Beverage (Cooking Oils & Fat) | 150 mm | 30 bar | 26.5 Inch-Hg | Synthetic Plies | 1.5 | 2 | FDA, BFR, DM, MHLW, CE, 3A, REACH | Food Transfer | ||
| 7640-2000 | Quote Required | TBD | Hose Products Division | 80 °C | MHLW | 10 bar | Smooth | 51 mm | White | 1.8 kg/m | 64 mm | Dairy Products | -25 °C | Food & Beverage (Cooking Oils & Fat) | 210 mm | 30 bar | 26.5 Inch-Hg | Galvanized Wire Helix | 2 | 2.52 | FDA, BFR, DM, MHLW, CE, 3A, REACH | Food Transfer | ||
| 7640-3000 | Quote Required | TBD | Hose Products Division | 176 °F | BfR | 10 bar | Smooth | 76 mm | Phtalates Free | 3.17 kg/m | 91.0 mm | Cooking Oils & Fat | -13 °F | Food & Beverage (Oily Sauces) | 12.6 inch | 30 bar | 90 kPa | Synthetic Plies | 3 | 3.58 | FDA, BFR, DM, MHLW, CE, 3A, REACH | Food Transfer | ||
| 7640-4000 | Quote Required | TBD | Hose Products Division | 80 °C | GMP | 10 bar | Smooth | 102 mm | Nitrile | 4.42 kg/m | 118 mm | Cooking Oils & Fat | -25 °C | Food & Beverage (Oily Sauces) | 16.93 inch | 30 bar | 90 kPa | Galvanized Wire Helix | 4 | 4.65 | FDA, BFR, DM, MHLW, CE, 3A, REACH | Food Transfer |
