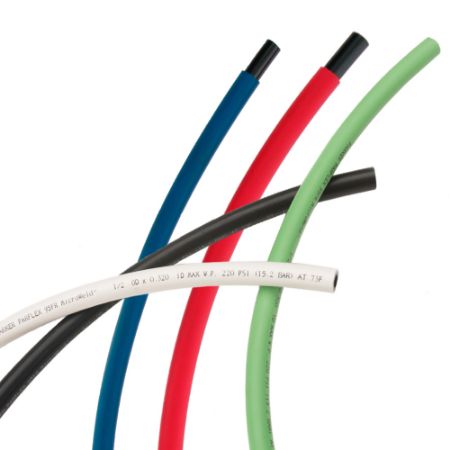

PU Tubing - Flame Resistant
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The 95FR Series Weld Spatter Resistant Tubing is lightweight and extremely flexible. It is an ideal option for low to medium pressure air and water supply lines where weld spatter protection is required. The double wall design has a flame resistant jacket made from a material that meets the UL94 V-0 standard and the tubing offers excellent hydrolytic stability, ensuring the tube will not degrade when used in water based applications. Parflex 95FR tubing is available in multiple colors for easy line identification.
Markets:
• Industrial
Features/Benefits:
• UL-94 V0 Flame resistant jacket material
• Exellent flexibility
• Abrasion resistant
• Moisture resistant
• Weld Spatter resistant
• Grease and Oil resistant
• Silicone and Halogen free
Applications:
• Pneumatic Systems
• Robotic Welding
• End-of-Arm Tooling
• General Robotics
• General Automation
Technical Specifications:
• Working and burst pressures rated at 73°F /23°C
Read More...Markets:
• Industrial
Features/Benefits:
• UL-94 V0 Flame resistant jacket material
• Exellent flexibility
• Abrasion resistant
• Moisture resistant
• Weld Spatter resistant
• Grease and Oil resistant
• Silicone and Halogen free
Applications:
• Pneumatic Systems
• Robotic Welding
• End-of-Arm Tooling
• General Robotics
• General Automation
Technical Specifications:
• Working and burst pressures rated at 73°F /23°C
| Action | Part No. | Availability | Partner Available | Price | UOM | Compatible Fitting | Division | Minimum Operating Temperature | Length per Package | Tube Inside Diameter | Product Type | Diameter | Cover Thickness | Tube Material | Application | Minimum Burst Pressure | Weight | Tube Outside Diameter | Maximum Operating Temperature | Cover Material | Minimum Bend Radius | Cover Color | Maximum Operating Pressure | Standard Pack Qty (ft) | Order Size | Product Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 95FR-4-BLK-0250 | Quote Required | TBD | 68PLM | Parflex Division | -40 °F | 250 ft | 3.0 mm | Fractional | 0.340 inch | 0.045 inch | Polyurethane | Robotics | 720 psi | 0.042 lb/ft | 6.4 mm | 75 °C | Proprietary Material | 3/4 inch | Black | 240 psi | 250.0 | -4 | Inch | Black | |||
| 95FR-4-BLK-0500 | Quote Required | TBD | 68PLM | Parflex Division | -40 °F | 500 ft | 0.160 inch | Fractional | 0.340 inch | 0.045 inch | Polyurethane | Robotics | 5.0 MPa | 0.042 lb/ft | 6.4 mm | 165 °F | Proprietary Material | 3/4 inch | Black | 16.5 bar | 500.0 | -4 | Inch | Black | |||
| 95FR-4-BLU-0250 | Quote Required | $2.02 | FT | 68PLM | Parflex Division | -40 °C | 250 ft | 3.0 mm | Fractional | 0.340 inch | 0.045 inch | Polyurethane | Pneumatic Systems | 720 psi | 0.062 kg/m | 1/4 inch | 165 °F | Proprietary Material | 3/4 inch | Blue | 1.65 MPa | 250.0 | -4 | Inch | Blue | ||
| 95FR-4-BLU-0500 | Quote Required | TBD | 68PLM | Parflex Division | -40 °F | 500 ft | 0.160 inch | Fractional | 8.6 mm | 0.045 inch | Polyurethane | Robotics | 720 psi | 0.062 kg/m | 6.4 mm | 75 °C | Proprietary Material | 19 mm | Blue | 1.65 MPa | 500.0 | -4 | Inch | Blue | |||
| 95FR-4-GRN-0250 | Quote Required | TBD | 68PLM | Parflex Division | -40 °F | 250 ft | 0.160 inch | Fractional | 8.6 mm | 0.045 inch | Polyurethane | Welding | 50 bar | 0.062 kg/m | 6.4 mm | 165 °F | Proprietary Material | 19 mm | Green | 1.65 MPa | 250.0 | -4 | Inch | Green | |||
| 95FR-4-GRN-0500 | Quote Required | TBD | 68PLM | Parflex Division | -40 °F | 500 ft | 0.160 inch | Fractional | 8.6 mm | 0.045 inch | Polyurethane | Pneumatic Systems | 5.0 MPa | 0.062 kg/m | 1/4 inch | 75 °C | Proprietary Material | 19 mm | Green | 1.65 MPa | 500.0 | -4 | Inch | Green | |||
| 95FR-4-RED-0250 | Quote Required | TBD | 68PLM | Parflex Division | -40 | 250 | 0.160 | Fractional | 8.6 | 0.045 | Polyurethane | Robotics | 720 | 0.042 | 1/4 | 165 | Proprietary Material | 3/4 | Red | 240 | 250.0 | -4 | Inch | Red | |||
| 95FR-4-RED-0500 | Quote Required | TBD | 68PLM | Parflex Division | -40 °F | 500 ft | 0.160 inch | Fractional | 8.6 mm | 0.045 inch | Polyurethane | Pneumatic Systems | 5.0 MPa | 0.042 lb/ft | 1/4 inch | 165 °F | Proprietary Material | 19 mm | Red | 240 psi | 500.0 | -4 | Inch | Red | |||
| 95FR-4-WHT-0250 | Quote Required | TBD | 68PLM | Parflex Division | -40 °F | 250 ft | 3.0 mm | Fractional | 8.6 mm | 0.045 inch | Polyurethane | Welding | 50 bar | 0.042 lb/ft | 6.4 mm | 165 °F | Proprietary Material | 3/4 inch | White | 240 psi | 250.0 | -4 | Inch | White | |||
| 95FR-4-WHT-0500 | Quote Required | TBD | 68PLM | Parflex Division | -40 °C | 500 ft | 3.0 mm | Fractional | 0.340 inch | 0.045 inch | Polyurethane | Welding | 50 bar | 0.042 lb/ft | 6.4 mm | 75 °C | Proprietary Material | 3/4 inch | White | 1.65 MPa | 500.0 | -4 | Inch | White | |||
| 95FR-6-BLK-0250 | Quote Required | TBD | 68PLM | Parflex Division | -40 °F | 250 ft | 0.250 inch | Fractional | 11.8 mm | 0.045 inch | Polyurethane | Robotics | 4.8 MPa | 0.103 kg/m | 9.5 mm | 75 °C | Proprietary Material | 25.5 mm | Black | 16.5 bar | 250.0 | -6 | Inch | Black | |||
| 95FR-6-BLK-0500 | Quote Required | $2.26 | FT | 68PLM | Parflex Division | -40 °C | 500 ft | 6.4 mm | Fractional | 0.465 inch | 0.045 inch | Polyurethane | Welding | 48 bar | 0.103 kg/m | 9.5 mm | 165 °F | Proprietary Material | 7/8 inch | Black | 1.65 MPa | 500.0 | -6 | Inch | Black | ||
| 95FR-6-BLU-0250 | Quote Required | TBD | 68PLM | Parflex Division | -40 °F | 250 ft | 0.250 inch | Fractional | 11.8 mm | 0.045 inch | Polyurethane | Pneumatic Systems | 690 psi | 0.103 kg/m | 9.5 mm | 75 °C | Proprietary Material | 25.5 mm | Blue | 16.5 bar | 250.0 | -6 | Inch | Blue | |||
| 95FR-6-BLU-0500 | Quote Required | TBD | 68PLM | Parflex Division | -40 °F | 500 ft | 0.250 inch | Fractional | 0.465 inch | 0.045 inch | Polyurethane | Welding | 48 bar | 0.103 kg/m | 9.5 mm | 75 °C | Proprietary Material | 7/8 inch | Blue | 16.5 bar | 500.0 | -6 | Inch | Blue | |||
| 95FR-6-GRN-0250 | Quote Required | TBD | 68PLM | Parflex Division | -40 °C | 250 ft | 6.4 mm | Fractional | 11.8 mm | 0.045 inch | Polyurethane | Pneumatic Systems | 690 psi | 0.069 lb/ft | 3/8 inch | 75 °C | Proprietary Material | 25.5 mm | Green | 230 psi | 250.0 | -6 | Inch | Green | |||
| 95FR-6-GRN-0500 | Quote Required | TBD | 68PLM | Parflex Division | -40 | 500 | 0.250 | Fractional | 0.465 | 0.045 | Polyurethane | Robotics | 690 | 0.069 | 3/8 | 165 | Proprietary Material | 7/8 | Green | 230 | 500.0 | -6 | Inch | Green | |||
| 95FR-6-RED-0250 | Quote Required | TBD | 68PLM | Parflex Division | -40 °C | 250 ft | 0.250 inch | Fractional | 0.465 inch | 0.045 inch | Polyurethane | Welding | 48 bar | 0.069 lb/ft | 3/8 inch | 165 °F | Proprietary Material | 7/8 inch | Red | 1.65 MPa | 250.0 | -6 | Inch | Red | |||
| 95FR-6-RED-0500 | Quote Required | TBD | 68PLM | Parflex Division | -40 | 500 | 0.250 | Fractional | 0.465 | 0.045 | Polyurethane | Pneumatic Systems | 690 | 0.069 | 3/8 | 165 | Proprietary Material | 7/8 | Red | 230 | 500.0 | -6 | Inch | Red | |||
| 95FR-6-WHT-0250 | Quote Required | TBD | 68PLM | Parflex Division | -40 °F | 250 ft | 0.250 inch | Fractional | 0.465 inch | 0.045 inch | Polyurethane | Welding | 48 bar | 0.103 kg/m | 3/8 inch | 165 °F | Proprietary Material | 7/8 inch | White | 1.65 MPa | 250.0 | -6 | Inch | White | |||
| 95FR-6-WHT-0500 | Quote Required | TBD | 68PLM | Parflex Division | -40 °F | 500 ft | 0.250 inch | Fractional | 11.8 mm | 0.045 inch | Polyurethane | Pneumatic Systems | 48 MPa | 0.103 kg/m | 3/8 inch | 165 °F | Proprietary Material | 25.5 mm | White | 1.65 MPa | 500.0 | -6 | Inch | White |
